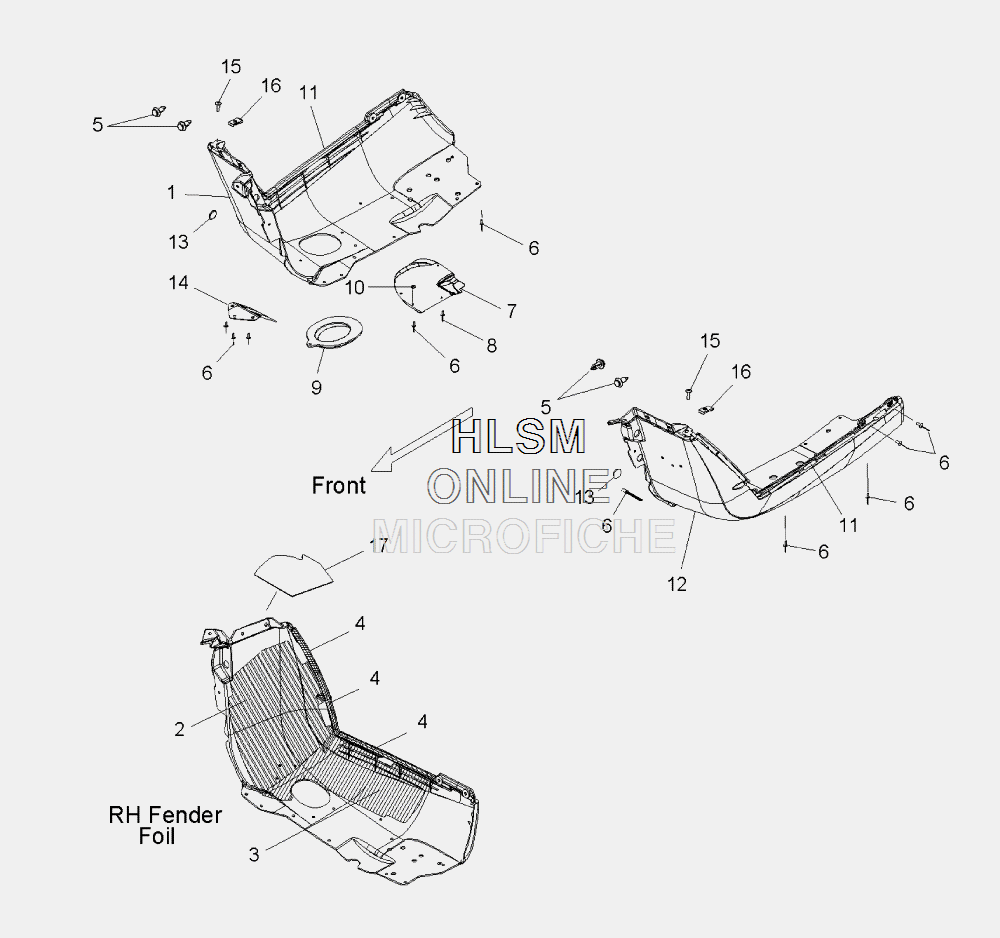

BODY- FENDERS для Polaris 600 RMK 155 (2010) [S10PK6HSL] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2633800-070 ASM., FENDER, RIGHT HAND (BLACK) (INCL. 2-4,11,15-17)
    ASM., FENDER, RIGHT HAND (BLACK) (INCL. 2-4,11,15-17)
  • 2
    5812972 FOAM/FIBER, FENDER, UPPER, RIGHT HAND
    FOAM/FIBER, FENDER, UPPER, RIGHT HAND
  • 3
    5812973 FOAM/FIBER, FENDER, LOWER, RIGHT HAND
    FOAM/FIBER, FENDER, LOWER, RIGHT HAND
  • 4
    5812255 FOIL
    FOIL
  • 5
    7661855 RIVET, TUFLOK
    RIVET, TUFLOK
  • 6
    7621467 RIVET
    RIVET
  • 7
    5249116-329 PLATE, PROTECTION, FENDER (BLACK)
    PLATE, PROTECTION, FENDER (BLACK)
  • 8
    7661136 RIVET
    RIVET
  • 9
    5436066 BOOT, OUTLET, EXHAUST
    BOOT, OUTLET, EXHAUST
  • 10
    7556044 WASHER
    WASHER
  • 11
    5521697-350 SEAL, BULB
    SEAL, BULB
  • 12
    2633673-070 ASM., FENDER, LEFT HAND (BLACK) (INCL. 11)
    ASM., FENDER, LEFT HAND (BLACK) (INCL. 11)
  • 13
    5411009 PLUG, HOLE
    PLUG, HOLE
  • 14
    5249759 DEFLECTOR, EXHAUST W/HOLES
    DEFLECTOR, EXHAUST W/HOLES
  • 15
    7517916 SCREW
    SCREW
  • 16
    7670057 NUT, U-TYPE, SPEED
    NUT, U-TYPE, SPEED
  • 17
    5813405 FIBER, SHOCK TOWER, RIGHT HAND
    FIBER, SHOCK TOWER, RIGHT HAND
