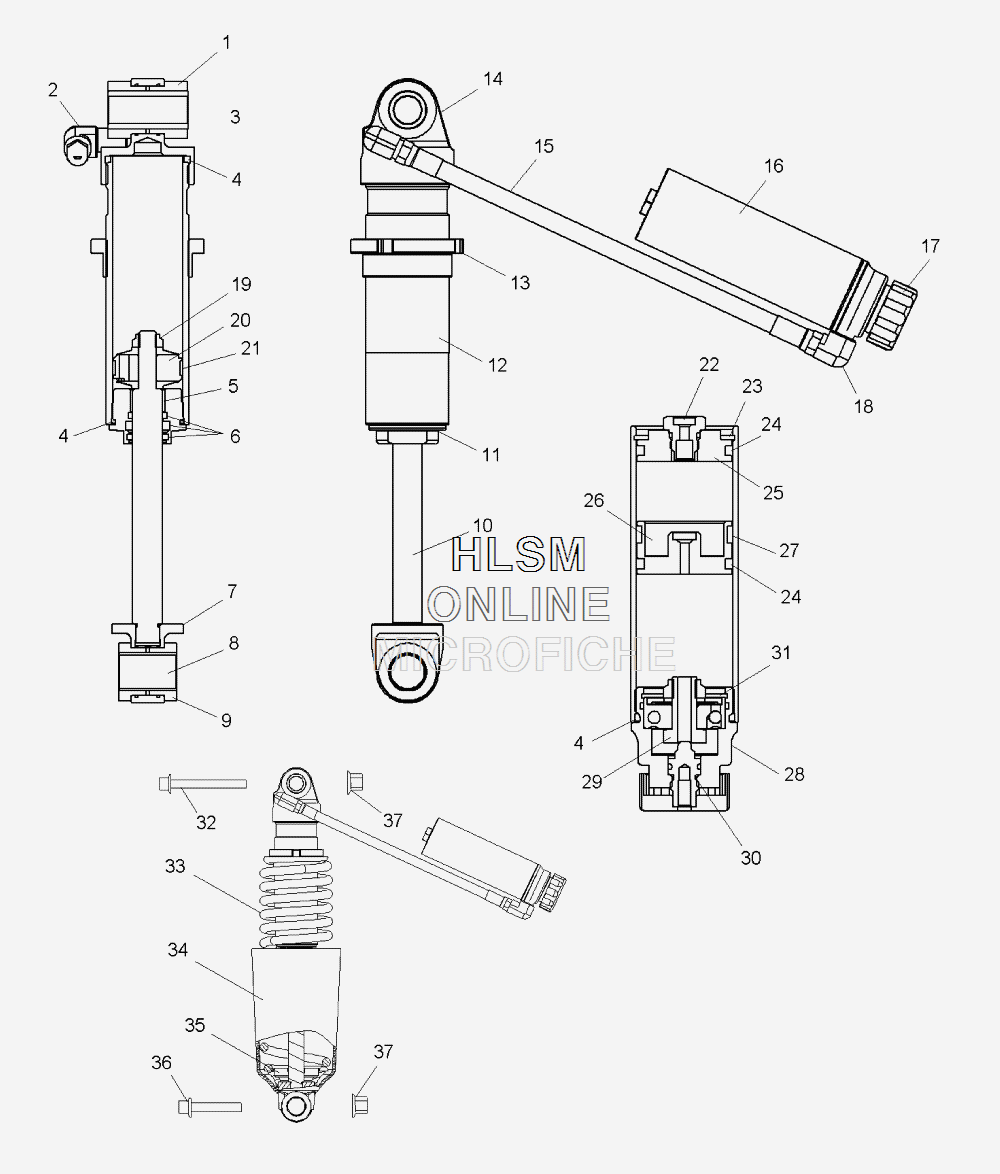

SUSPENSION- SHOCK- FRONT TRACK (7043412) для Polaris 600 PRO-RIDE RUSH (2010) [S10BF6KEA] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7043412 SHOCK, TRACK, FRONT, WALKER EVANS
    SHOCK, TRACK, FRONT, WALKER EVANS
  • 1
    1800033 BUSHING, URETHANE
    BUSHING, URETHANE
  • 2
    1800205 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 2
    1800114 EXTENTION
    EXTENTION
  • 3
    1800039 SLEEVE
    SLEEVE
  • 4
    1800027 O-RING, BODY
    O-RING, BODY
  • 5
    1800038 BUSHING, SHAFT
    BUSHING, SHAFT
  • 6
    1800322 WIPER, D TYPE
    WIPER, D TYPE
  • 6
    1800323 U-CUP, SHAFT SEAL
    U-CUP, SHAFT SEAL
  • 6
    1800037 O-RING, SHAFT SEAL HEAD
    O-RING, SHAFT SEAL HEAD
  • 7
    1800234 EYELET, SHAFT
    EYELET, SHAFT
  • 8
    1800371 SLEEVE, BUSHING
    SLEEVE, BUSHING
  • 9
    1800036 BUSHING, URETHANE
    BUSHING, URETHANE
  • 10
    1800369 SHAFT, 6.615 TLG
    SHAFT, 6.615 TLG
  • 11
    1800131 ASM., HOUSING, SHAFT SEAL
    ASM., HOUSING, SHAFT SEAL
  • 12
    1800367 BODY, SHOCK
    BODY, SHOCK
  • 13
    1800046 RETAINER, SPRING
    RETAINER, SPRING
  • 14
    1800364 LOOP, BODY
    LOOP, BODY
  • 15
    1800370 HOSE
    HOSE
  • 16
    1800120 BODY, RESERVOIR
    BODY, RESERVOIR
  • 17
    1800284 KNOB
    KNOB
  • 18
    1800113 ELBOW-1/8" NPT 90°
    ELBOW-1/8" NPT 90°
  • 19
    1800031 NUT, CRIMP
    NUT, CRIMP
  • 20
    1800001 PISTON, CONVEX
    PISTON, CONVEX
  • 21
    1800297 BAND, WEAR
    BAND, WEAR
  • 22
    1800329 VALVE, NEEDLE
    VALVE, NEEDLE
  • 22
    1800108 O-RING
    O-RING
  • 22
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 22
    1800109 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 23
    1800019 RING, SNAP, RESERVOIR
    RING, SNAP, RESERVOIR
  • 24
    1800028 O-RING, RESERVOIR
    O-RING, RESERVOIR
  • 25
    1800106 CAP, END
    CAP, END
  • 26
    1800281 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 27
    1800297 BAND, WEAR
    BAND, WEAR
  • 28
    1800127 BALL, DETENT
    BALL, DETENT
  • 28
    1800128 SPRING, DETENT
    SPRING, DETENT
  • 29
    1800354 BOLT, CLICKER
    BOLT, CLICKER
  • 30
    1800352 STUD, CLICKER
    STUD, CLICKER
  • 30
    1800108 O-RING
    O-RING
  • 31
    1800353 PISTON, CLICKER
    PISTON, CLICKER
  • 31
    1800358 O-RING, CLICKER HOUSING
    O-RING, CLICKER HOUSING
  • 31
    1800359 RING, SNAP
    RING, SNAP
  • 32
    7518963 SCREW
    SCREW
  • 33
    7043413-067 SPRING, FRONT TRACK, (BLACK)
    SPRING, FRONT TRACK, (BLACK)
  • 34
    5437525 SHIELD, SPRING
    SHIELD, SPRING
  • 35
    1800116 RING, SPRING RETAINER
    RING, SPRING RETAINER
  • 36
    7518960 SCREW
    SCREW
  • 37
    7547423 NUT
    NUT
