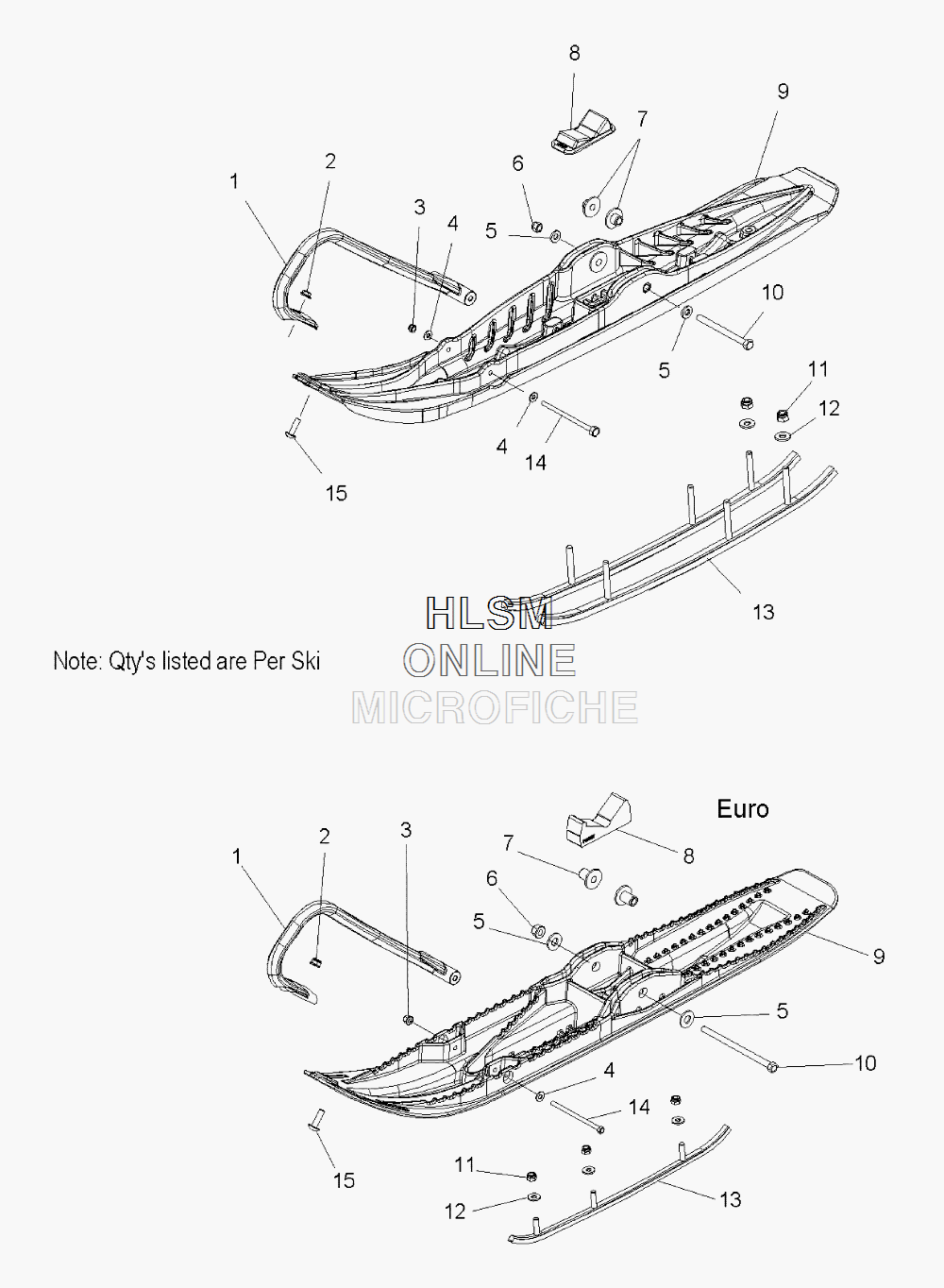

STEERING- SKI ASM. для Polaris 600 IQ TOURING INTERNATIONAL - SILVER (2010) [S10PT6HEM] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-070 TOE, PLASTIC SKI (BLACK)
    TOE, PLASTIC SKI (BLACK)
  • 2
    7542321 NUT, FLANGE
    NUT, FLANGE
  • 2
    7542343 NUT, FLANGE (EURO)
    NUT, FLANGE (EURO)
  • 3
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 3
    7542153 NUT, NYLOK, FLANGE (EURO)
    NUT, NYLOK, FLANGE (EURO)
  • 4
    7558301 WASHER, FLAT (QTY. 1 EURO)
    WASHER, FLAT (QTY. 1 EURO)
  • 5
    7556130 WASHER
    WASHER
  • 6
    7547263 NUT, NYLOK
    NUT, NYLOK
  • 7
    5134797 BUSHING
    BUSHING
  • 8
    5413116 STOP, SKI RUBBER
    STOP, SKI RUBBER
  • 8
    5412794 STOP, SKI RUBBER (EURO)
    STOP, SKI RUBBER (EURO)
  • 9
    1822889-070 ASM., SKI, WIDE (BLACK) (INCL. 6) (EURO)
    ASM., SKI, WIDE (BLACK) (INCL. 6) (EURO)
  • 10
    7518481 SCREW
    SCREW
  • 11
    7542324 NUT, NYLOK (QTY. 3 EURO)
    NUT, NYLOK (QTY. 3 EURO)
  • 12
    7555843 WASHER, FLAT (QTY. 3 EURO)
    WASHER, FLAT (QTY. 3 EURO)
  • 13
    2875723 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR) (EURO)
    KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR) (EURO)
  • 14
    7518047 BOLT
    BOLT
  • 14
    7518655 SCREW (EURO)
    SCREW (EURO)
  • 15
    7516317 SCREW
    SCREW
  • 15
    7518070 SCREW (EURO)
    SCREW (EURO)
