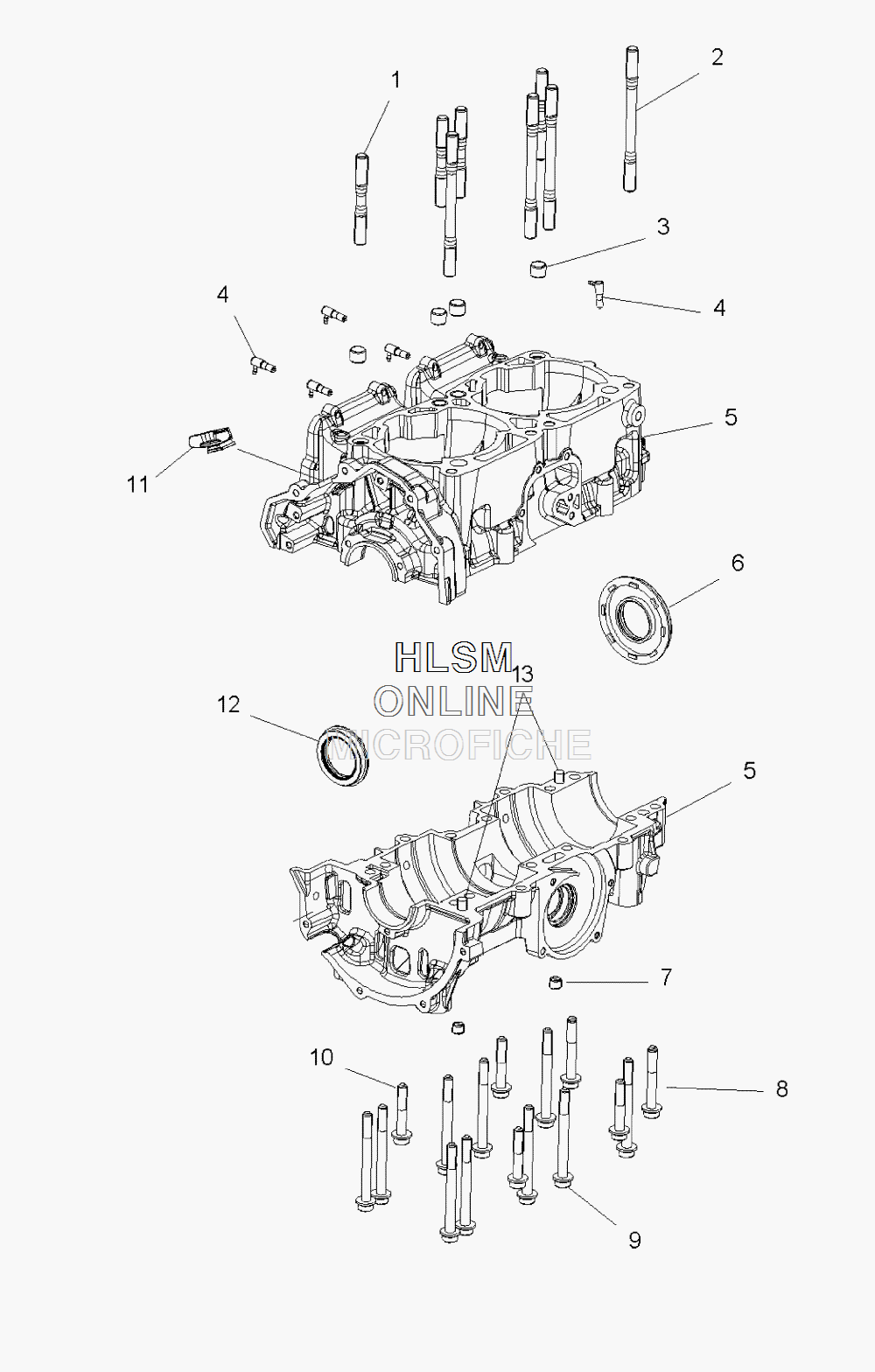

CRANKCASE для Polaris 600 IQ SHIFT (2010) [S10PB6HSA] - 2010 года выпуска`
-
№АртикулНазвание
-
15135956 STUD, CYLINDERSTUD, CYLINDER
-
25135955 STUD, CYLINDERSTUD, CYLINDER
-
37663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
47051020 VALVE, CHECKVALVE, CHECK
-
52203321 KIT, CRANKCASE (INCL. 1,2,4,7-11,13)KIT, CRANKCASE (INCL. 1,2,4,7-11,13)
-
65411394 SEAL, FLANGESEAL, FLANGE
-
77052337 PLUGPLUG
-
87517785 BOLTBOLT
-
97517784 BOLTBOLT
-
107517786 BOLTBOLT
-
115437349 SHIELD, WIRE STATORSHIELD, WIRE STATOR
-
125412798 SEAL, FLANGEDSEAL, FLANGED
-
137663001 PIN, DOWELPIN, DOWEL
