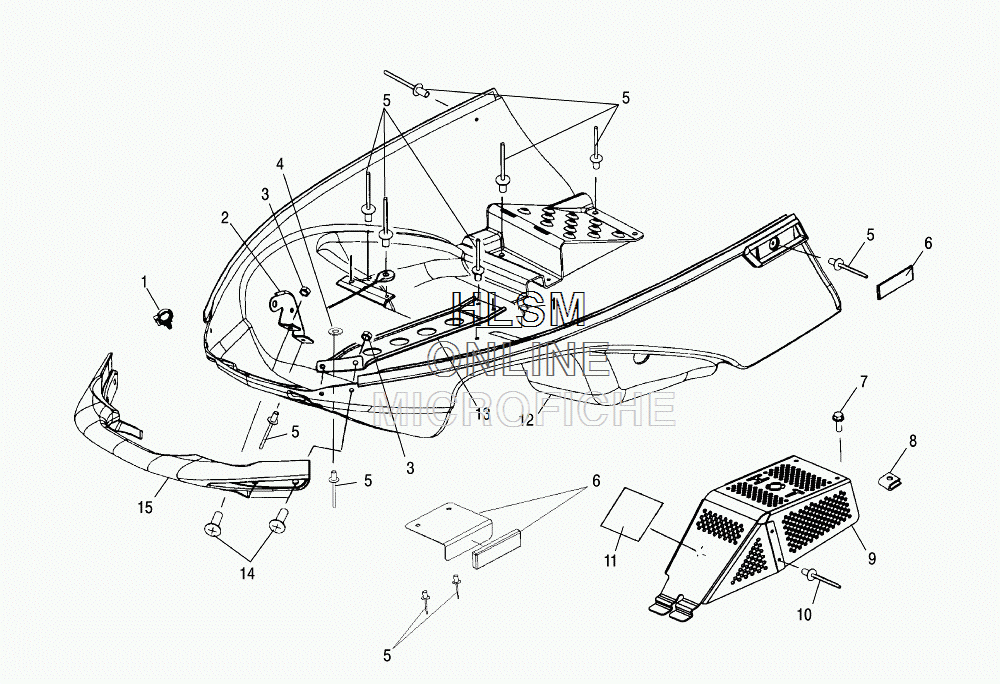

BODY- FRONT BUMPER AND NOSEPAN для Polaris 120 DRAGON INTERNATIONAL (2010) [S10WB1AEA] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7670102 CLIP
    CLIP
  • 2
    5244894 BRACKET, HINGE, LEFT HAND
    BRACKET, HINGE, LEFT HAND
  • 2
    5244895 BRACKET, HINGE, RIGHT HAND
    BRACKET, HINGE, RIGHT HAND
  • 3
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 4
    7558212 WASHER, FLAT
    WASHER, FLAT
  • 5
    7621467 RIVET
    RIVET
  • 6
    2633956 ASM., REFLECTOR/BRACKET
    ASM., REFLECTOR/BRACKET
  • 7
    7512283 SCREW
    SCREW
  • 8
    7670096 NUT, CHIMNEY
    NUT, CHIMNEY
  • 9
    1015855 ASM., GUARD, CLUTCH/CHAIN
    ASM., GUARD, CLUTCH/CHAIN
  • 10
    7661637 RIVET
    RIVET
  • 11
    7078389 DECAL, ENGINE AND CLUTCH
    DECAL, ENGINE AND CLUTCH
  • 12
    5438216-070 NOSEPAN, REFLECTOR (BLACK)
    NOSEPAN, REFLECTOR (BLACK)
  • 13
    5244079 BRACE, BUMPER, FRONT, LEFT HAND
    BRACE, BUMPER, FRONT, LEFT HAND
  • 13
    5244080 BRACE, BUMPER, FRONT, RIGHT HAND
    BRACE, BUMPER, FRONT, RIGHT HAND
  • 14
    7515166 SCREW
    SCREW
  • 15
    5433536-070 BUMPER, FRONT
    BUMPER, FRONT
