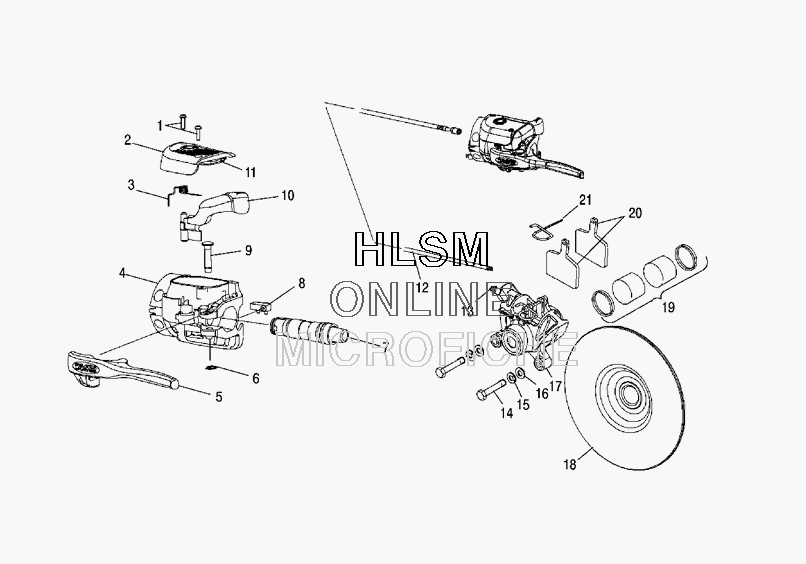

BRAKE ASSEMBLY для Polaris TRAIL TOURING (S09NT5BS) - 2009 года выпуска`
-
№АртикулНазвание
-
2203487 KIT-FULL ASM KIT 98-21197 (INC 1-7)KIT-FULL ASM KIT 98-21197 (INC 1-7)
-
12201254 KIT,COVER SCREWKIT,COVER SCREW
-
22202837 KIT-COVER ASM 4 #98-17061 (INC 1-11)KIT-COVER ASM 4 #98-17061 (INC 1-11)
-
32201250 KIT,PARK LEVER SPRINGKIT,PARK LEVER SPRING
-
42202784 KIT-RESERVOIR,98-15657 (INC 6-9)KIT-RESERVOIR,98-15657 (INC 6-9)
-
52201943 KIT-LEVER,3 NOTCH/PIN/RING (INC 6-9)KIT-LEVER,3 NOTCH/PIN/RING (INC 6-9)
-
62201945 KIT-SNAP RING (INC 6)KIT-SNAP RING (INC 6)
-
72203486 KIT-5/8'' CARTRIDGE 98-21196KIT-5/8'' CARTRIDGE 98-21196
-
82202786 KIT-STOPLIGHT SWITCH 98-16195KIT-STOPLIGHT SWITCH 98-16195
-
92201946 KIT-PIVOT PIN,ALUM W/SNAP RINGKIT-PIVOT PIN,ALUM W/SNAP RING
-
102201251 KIT,PARK LEVER AND SPRINGKIT,PARK LEVER AND SPRING
-
122202787 KIT-HOSE 25.68 1/4''X1/4'' IFKIT-HOSE 25.68 1/4''X1/4'' IF
-
132202205 KIT-BLEEDER FITTINGKIT-BLEEDER FITTING
-
147515534 SCREWSCREW
-
157552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
167556160 WASHER,.380X.813X.150WASHER,.380X.813X.150
-
172202728 KIT-ASM,BRAKE CALIPER AIRKIT-ASM,BRAKE CALIPER AIR
-
182202493 KIT-BRAKE DISC,FORGEDKIT-BRAKE DISC,FORGED
-
192202207 KIT-PISTON/SEALKIT-PISTON/SEAL
-
192202204 KIT-SEALKIT-SEAL
-
202202727 KIT-BRAKE PAD,TYPE 94 (INC 21)KIT-BRAKE PAD,TYPE 94 (INC 21)
-
212202206 KIT-PIN RETAININGKIT-PIN RETAINING
