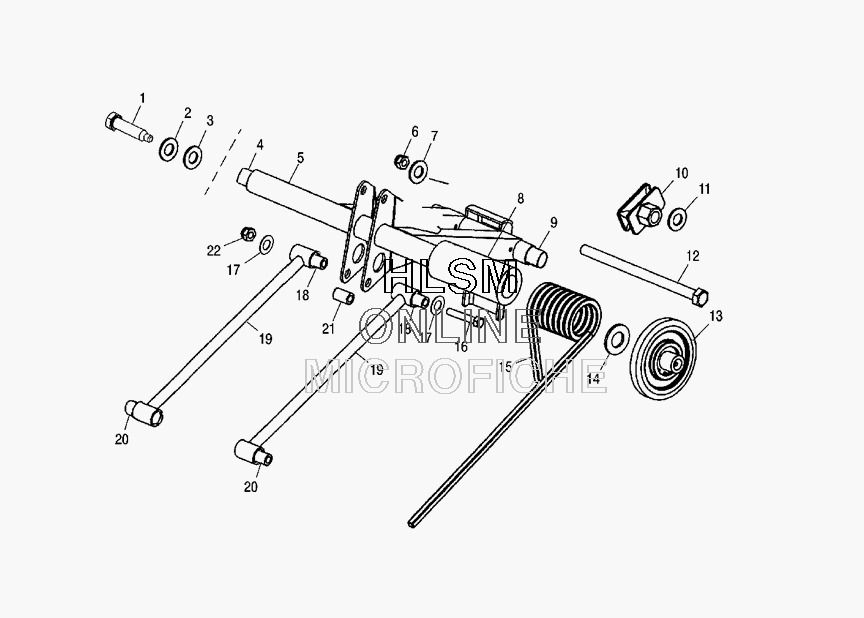

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris TRAIL RMK (S09NJ5BS) - 2009 года выпуска`
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
37555893 WASHER,FLATWASHER,FLAT
-
45133165 SHAFT-.74X16.25SHAFT-.74X16.25
-
51541670-067 REAR TORQUE ARM, BLACKREAR TORQUE ARM, BLACK
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67547217 NUT-5/16-24,NYLOK,GR8,YNUT-5/16-24,NYLOK,GR8,Y
-
77558402 WASHER,FLATWASHER,FLAT
-
85434337 SLEEVE-TORSION SPRINGSLEEVE-TORSION SPRING
-
95333997 SHAFT-.689X.334X5.220 ANNODIZESHAFT-.689X.334X5.220 ANNODIZE
-
105432983 ROLLER,SPRING,ADJ,SQUAREROLLER,SPRING,ADJ,SQUARE
-
117080394 CLIP,PUSH ONCLIP,PUSH ON
-
127517908 SCREW-5/16-24X6.00,HX/CP,GR5-YSCREW-5/16-24X6.00,HX/CP,GR5-Y
-
131541285 WHEEL,CARRIER,W/COLLARWHEEL,CARRIER,W/COLLAR
-
147556301 BUSHINGBUSHING
-
157041627-067 SPRING-TORSION,.347SQ/77°LEFT HAND BLACK (STD)SPRING-TORSION,.347SQ/77°LEFT HAND BLACK (STD)
-
157041628-067 SPRING-TORSION,.347/77°, RIGHT HAND, BLACK (STD)SPRING-TORSION,.347/77°, RIGHT HAND, BLACK (STD)
-
157042081-067 SPRING-TORSION,.347/47°, LEFT HAND, BLACK (OPT)SPRING-TORSION,.347/47°, LEFT HAND, BLACK (OPT)
-
157042082-067 SPRING-TORSION,.347/47°, RIGHT HAND, BLACK (OPT)SPRING-TORSION,.347/47°, RIGHT HAND, BLACK (OPT)
-
157041631-067 SPRING-TORSION,.375/77°, LEFT HAND, BLACK (OPT)SPRING-TORSION,.375/77°, LEFT HAND, BLACK (OPT)
-
157041632-067 SPRING-TORSION,.375/77°, RIGHT HAND, BLACK (OPT)SPRING-TORSION,.375/77°, RIGHT HAND, BLACK (OPT)
-
167515496 BOLTBOLT
-
177555795 WASHER,WAVE SPRINGWASHER,WAVE SPRING
-
185133101 BUSHING-.378X.616X1.289BUSHING-.378X.616X1.289
-
191541631-067 WELD-SHOCK ROD,13'', BLACKWELD-SHOCK ROD,13'', BLACK
-
205132391 BUSHING,.378X.616X1.12BUSHING,.378X.616X1.12
-
215010422 BUSHINGBUSHING
-
227542411 NUT,FLEXLOCNUT,FLEXLOC
