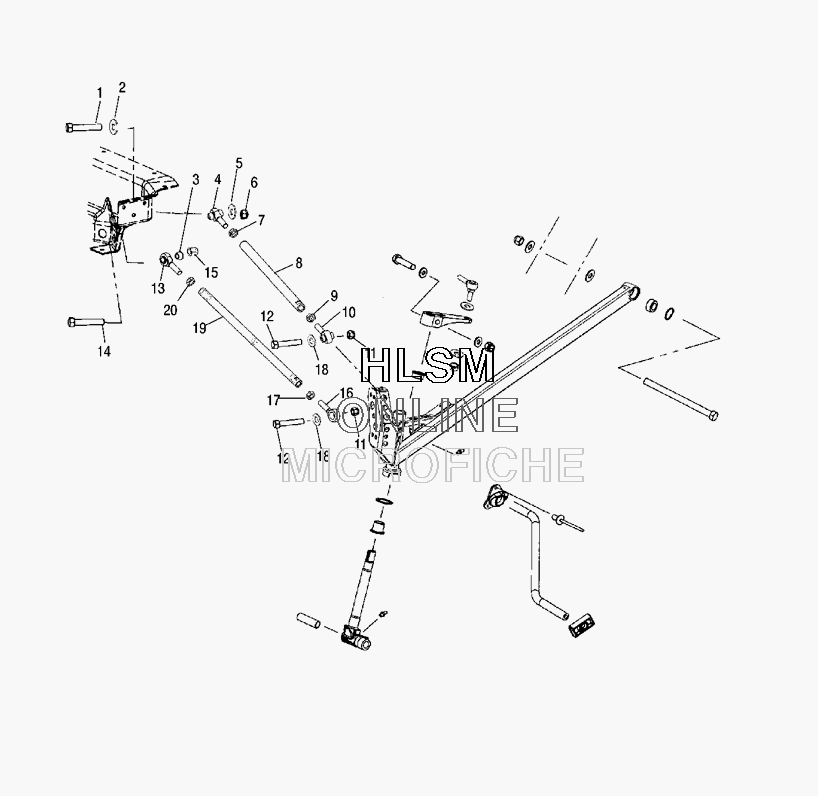

SUSPENSION - RADIUS RODS AND TRAILING ARM VER 1 для Polaris TRAIL RMK (S09NJ5BS) - 2009 года выпуска`
-
№АртикулНазвание
-
17517980 BOLT-7/16-20X3.00,HXCAP,GR5-YBOLT-7/16-20X3.00,HXCAP,GR5-Y
-
27556212 WASHER-7/16 SAE,STF,THRU-HRD-YWASHER-7/16 SAE,STF,THRU-HRD-Y
-
35132454 BUSHING,SPACERBUSHING,SPACER
-
47061081 ROD END-RADIUS, LEFT HAND,7/16ROD END-RADIUS, LEFT HAND,7/16
-
57555852 WASHER, FLATWASHER, FLAT
-
67547066 NUT-7/16-20,NYLOK,YNUT-7/16-20,NYLOK,Y
-
77547117 NUT, LEFT HANDNUT, LEFT HAND
-
85133691 TUBE-RADIUS ROD,UPPER,12.68TUBE-RADIUS ROD,UPPER,12.68
-
97542520 NUT,JAMNUT,JAM
-
107061104 ROD END-7/16 RIGHT HAND,3/8X.75ROD END-7/16 RIGHT HAND,3/8X.75
-
117542439 NUT,NYLOKNUT,NYLOK
-
127512410 BOLTBOLT
-
137061087 ROD END-RADIUS, LEFT HAND,LOWERROD END-RADIUS, LEFT HAND,LOWER
-
147518041 BOLT-1/2-20X3.75,HXCAP,GR8-YBOLT-1/2-20X3.75,HXCAP,GR8-Y
-
157547216 NUT-1/2-70,NYLOK-GR8-YNUT-1/2-70,NYLOK-GR8-Y
-
167061103 ROD END-1/2 RIGHT HAND,3/8X.75ROD END-1/2 RIGHT HAND,3/8X.75
-
177542711 NUT-JAMNUT-JAM
-
187556153 WASHER,3/8 FWWASHER,3/8 FW
-
195132953 TUBE-RADIUS ROD,LOWERTUBE-RADIUS ROD,LOWER
-
207547028 NUT,JAM, LEFT HANDNUT,JAM, LEFT HAND
