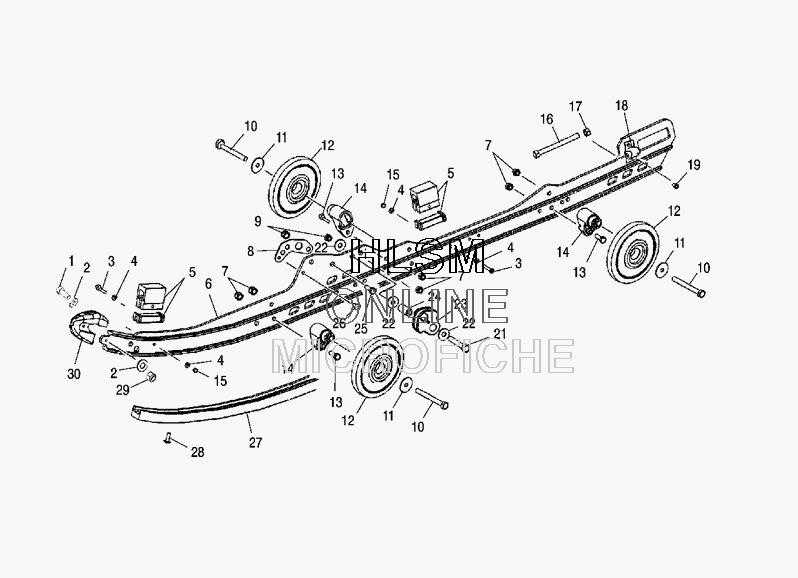

SUSPENSION - RAIL MOUNTING для Polaris TRAIL RMK FLEET (S09NJ5BSF) - 2009 года выпуска`
-
№АртикулНазвание
-
17512007 BOLTBOLT
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHER,FLATWASHER,FLAT
-
55521498 BUMPER,JOUNCE REARBUMPER,JOUNCE REAR
-
55432946 LINER,BUMPERLINER,BUMPER
-
61541955 ASM-RAIL 136, LEFT HAND (INC 6,18,19,29,30)ASM-RAIL 136, LEFT HAND (INC 6,18,19,29,30)
-
61541956 ASM-RAIL 136, RIGHT HAND (INC 6,18,19,29,30)ASM-RAIL 136, RIGHT HAND (INC 6,18,19,29,30)
-
77542324 NUT,NYLOKNUT,NYLOK
-
85245411 BRKT-RAIL,REINFBRKT-RAIL,REINF
-
97542439 NUT,NYLOKNUT,NYLOK
-
107515346 SCREWSCREW
-
117556179 WASHER-SPRING,CON 5/16X.090-YWASHER-SPRING,CON 5/16X.090-Y
-
121590317 ASM-WHEEL,BOGIE,PLAIN,5.62ASM-WHEEL,BOGIE,PLAIN,5.62
-
123514303 BEARING #6205BEARING #6205
-
127718407 RING-RETAININGRING-RETAINING
-
137515317 BOLTBOLT
-
145631065 BLOCK-WHEEL MOUNT,LWTBLOCK-WHEEL MOUNT,LWT
-
157541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
167517227 SCREWSCREW
-
177542404 NUTNUT
-
185130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
197621501 RIVETRIVET
-
217515438 BOLTBOLT
-
227555983 WASHER,FLATWASHER,FLAT
-
235434334 GUIDE-SPRING SQUAREGUIDE-SPRING SQUARE
-
237661123 PIN-CLEVIS 3/16X1 1/4PIN-CLEVIS 3/16X1 1/4
-
237661644 PIN,HITCHPIN,HITCH
-
245333948 SPACER-.407X.625X1.33SPACER-.407X.625X1.33
-
257512457 BOLTBOLT
-
267661845 RIVETRIVET
-
275521632 SLIDER,.45/61'',SERVICE,BASICSLIDER,.45/61'',SERVICE,BASIC
-
287515199 SCREWSCREW
-
297541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
305434355 CAP-RAIL TIP UHMWCAP-RAIL TIP UHMW
