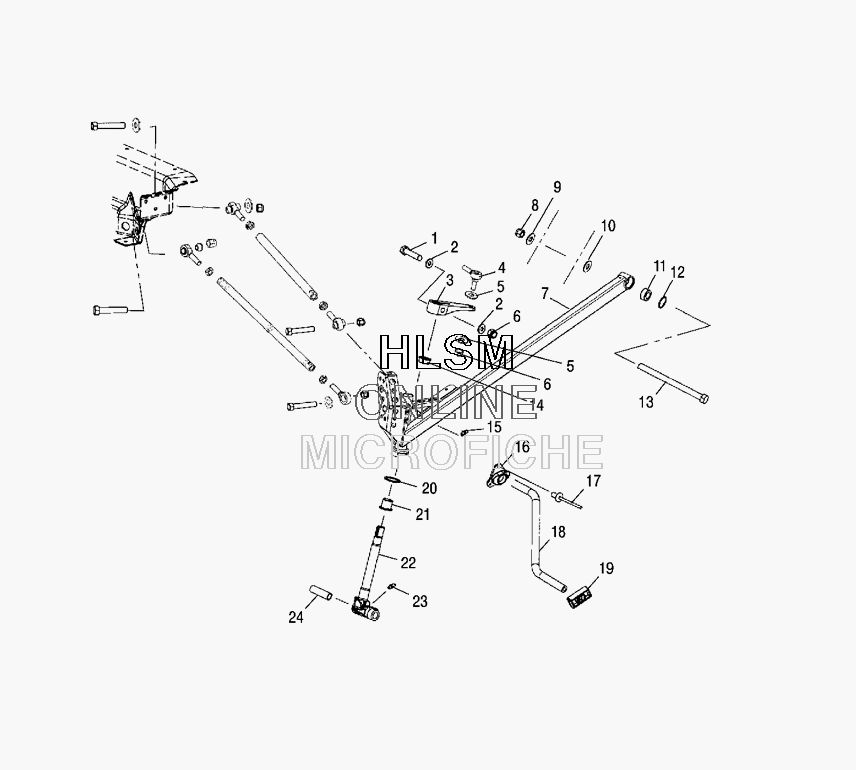

SUSPENSION - RADIUS RODS AND TRAILING ARM VER 2 для Polaris TRAIL RMK EURO (S09NJ5BE) - 2009 года выпуска
-
№АртикулНазвание
-
17517583 SCR-3/8-24X2 HX/CP GR5-Y-SPSCR-3/8-24X2 HX/CP GR5-Y-SP
-
27555832 WASHERWASHER
-
35133060 ARM-STEERING MACHINEDARM-STEERING MACHINED
-
57555797 WASHER,FLATWASHER,FLAT
-
67542439 NUT,NYLOKNUT,NYLOK
-
71821260-385 ASM.,TRAILING ARM,SVC, LEFT HAND,CLD SL (INC 11,12)ASM.,TRAILING ARM,SVC, LEFT HAND,CLD SL (INC 11,12)
-
71821261-385 ASM.,TRAILING ARM,SVC, RIGHT HAND,CLD SL (INC 11,12)ASM.,TRAILING ARM,SVC, RIGHT HAND,CLD SL (INC 11,12)
-
87547066 NUT-7/16-20,NYLOK,YNUT-7/16-20,NYLOK,Y
-
97555820 WASHER,FLATWASHER,FLAT
-
105132364 CUP,TRAILING ARM MNTCUP,TRAILING ARM MNT
-
117061042 BEARING-SPHERICAL,7/16,PLASTICBEARING-SPHERICAL,7/16,PLASTIC
-
127710437 RING,RETAININGRING,RETAINING
-
137512099 SCREWSCREW
-
143573909 BUSHING-FLANGEBUSHING-FLANGE
-
157080433 FITTING,LUBRICATION,THREADED(10FITTING,LUBRICATION,THREADED(10
-
165433814 BUSHING,TORS.BAR,9/16''BUSHING,TORS.BAR,9/16''
-
177621452 RIVETRIVET
-
185246871-067 BAR-TORSION,9/16,41BLACKBAR-TORSION,9/16,41BLACK
-
195412063 SLIDE-SWAY BAR 9/16SLIDE-SWAY BAR 9/16
-
207556509 BUSHINGBUSHING
-
213574208 BUSHING,FLANGEDBUSHING,FLANGED
-
226230225-067 SHAFT-SPINDLE,W/STEER STOP, BLACKSHAFT-SPINDLE,W/STEER STOP, BLACK
-
237080306 FITTING,LUBE.W/BALL CK.FITTING,LUBE.W/BALL CK.
-
245010158 BUSHING,PIVOTBUSHING,PIVOT
