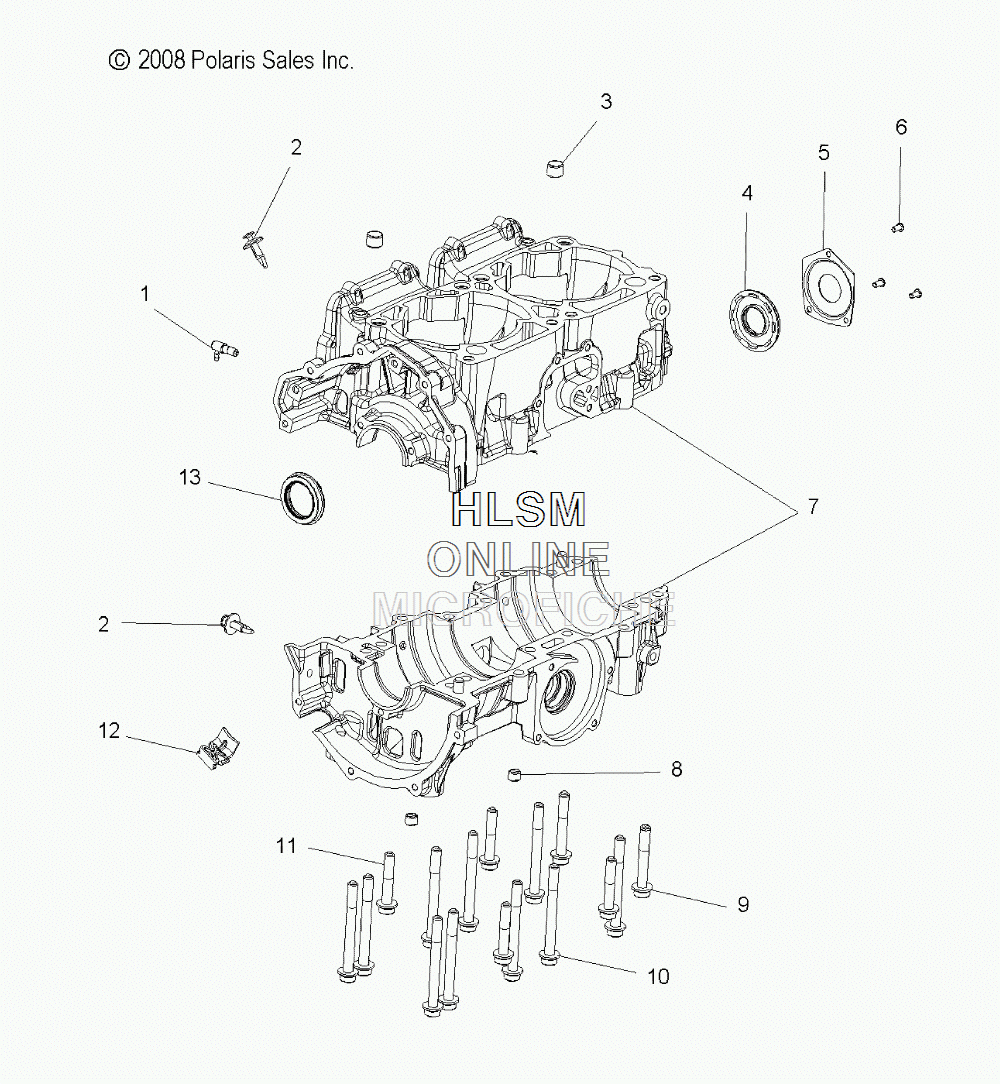

CRANKCASE ASSEMBLY для Polaris 800 SWITCHBACK DRAGON (S09PS8ESL) - 2009 года выпуска
-
№АртикулНазвание
-
17051020 VALVE, CHECKVALVE, CHECK
-
27621509 RIVETRIVET
-
37663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
45412091 SEAL, FLANGEDSEAL, FLANGED
-
55251374 GUARD, CRANK SEALGUARD, CRANK SEAL
-
67519063 SCREWSCREW
-
72203604 KIT, CRANKCASE (INCL. 1,2,8-11)KIT, CRANKCASE (INCL. 1,2,8-11)
-
87052337 PIN, DOWELPIN, DOWEL
-
97517785 BOLT 1.25X55BOLT 1.25X55
-
107517784 BOLT 1.25X80BOLT 1.25X80
-
117517786 BOLT 1.25X45BOLT 1.25X45
-
125436640 SHIELD, WIRE STATORSHIELD, WIRE STATOR
-
135412798 SEAL, FLANGEDSEAL, FLANGED
