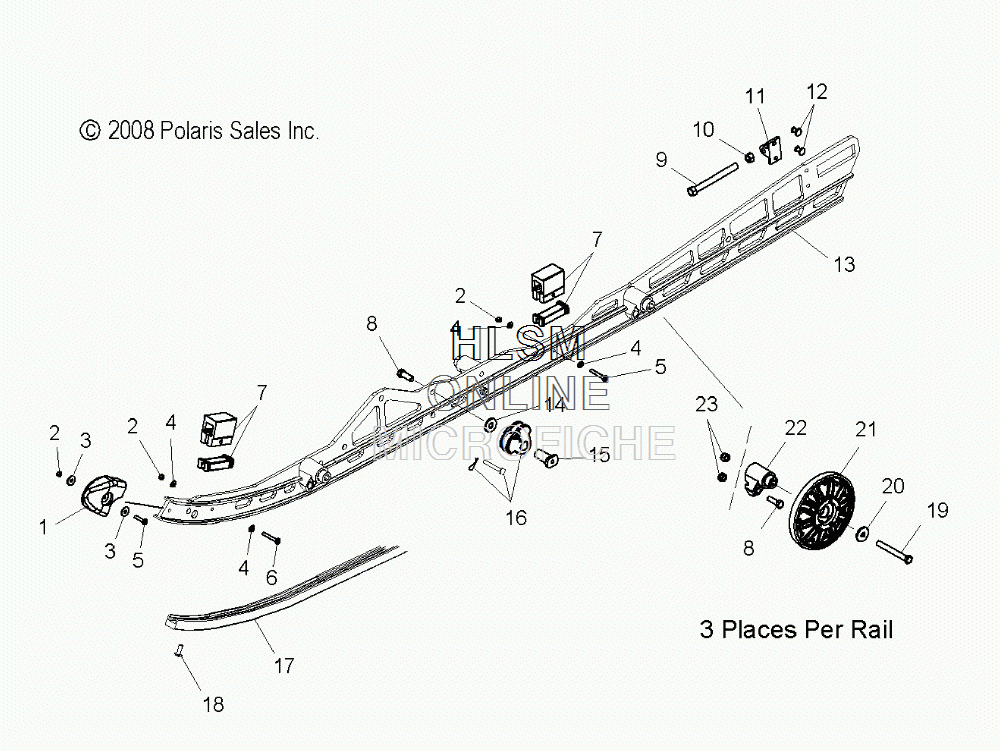

SUSPENSION - RAIL MOUNTING для Polaris 800 RMK SHIFT 144 - 2009 года выпуска`
-
№АртикулНазвание
-
15435527 CAP, RAIL TIPCAP, RAIL TIP
-
27541925 NUT, NYLOKNUT, NYLOK
-
37555792 WASHERWASHER
-
47555783 WASHER, FLATWASHER, FLAT
-
57518335 BOLTBOLT
-
67510504 SCREWSCREW
-
75521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
75432946 LINER, BUMPERLINER, BUMPER
-
87515317 SCREWSCREW
-
97517227 SCREWSCREW
-
107542404 NUTNUT
-
115130530 BLOCK, IDLER BOLT ADJUSTABLEBLOCK, IDLER BOLT ADJUSTABLE
-
127621501 RIVETRIVET
-
131542481 ASM., RAIL, 144, LEFT HAND (INCL. 1-7,11,12)ASM., RAIL, 144, LEFT HAND (INCL. 1-7,11,12)
-
131542482 ASM., RAIL, 144, RIGHT HAND (INCL. 1-7,11,12)ASM., RAIL, 144, RIGHT HAND (INCL. 1-7,11,12)
-
147555987 WASHERWASHER
-
155136368 MOUNT, TORSION SPRINGMOUNT, TORSION SPRING
-
165434334 GUIDE, SPRING SQUAREGUIDE, SPRING SQUARE
-
167661123 PIN, CLEVISPIN, CLEVIS
-
167661644 PIN, HITCHPIN, HITCH
-
175521633 HI-FAXHI-FAX
-
187515199 SCREWSCREW
-
197515346 SCREWSCREW
-
207556387 WASHERWASHER
-
211590434-070 ASM., WHEEL, WEB, (BLACK)ASM., WHEEL, WEB, (BLACK)
-
213514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
217710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
225631446 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
237542324 NUT, NYLOKNUT, NYLOK
