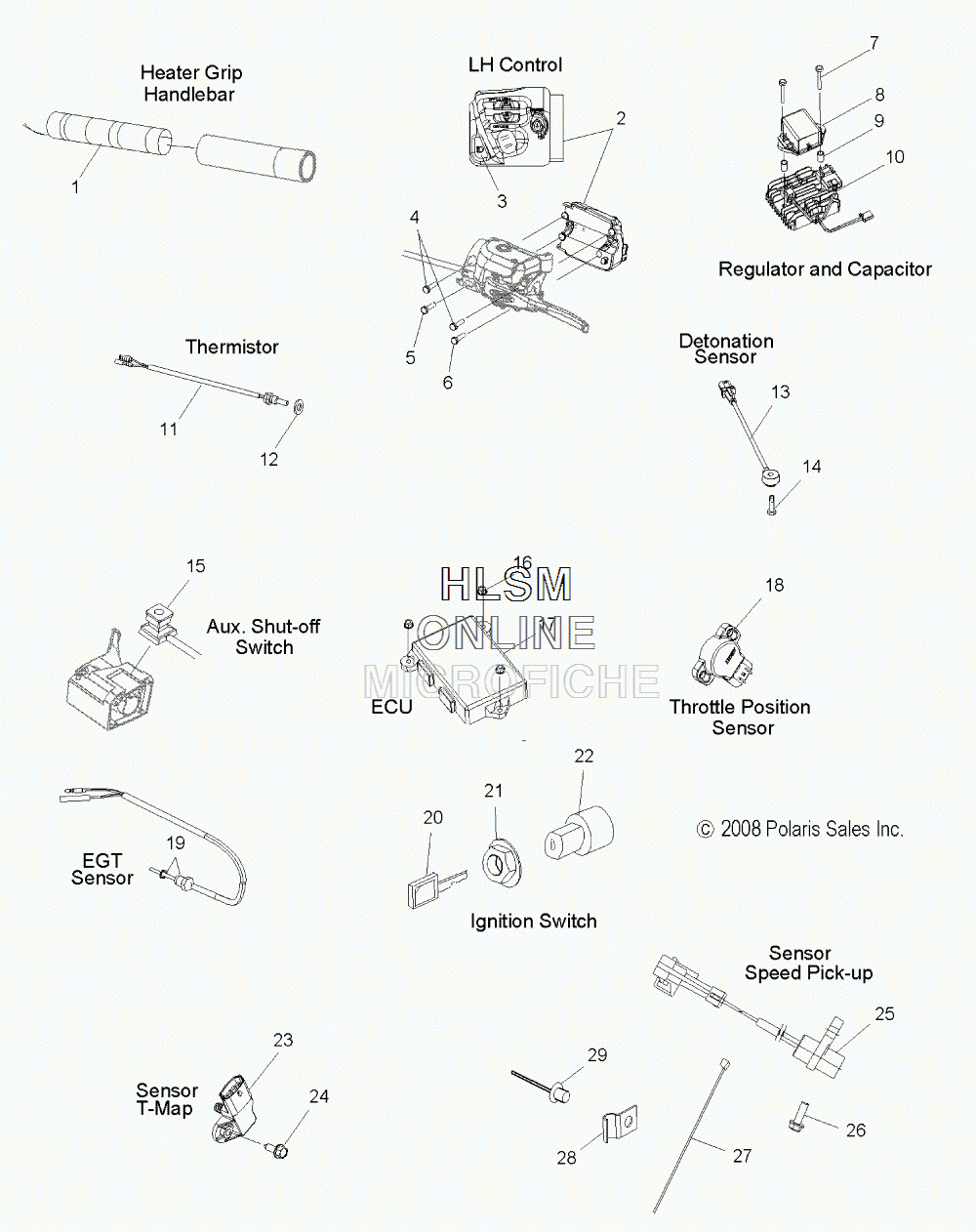

ELECTRICAL - SENSORS AND SWITCHES для Polaris 800 RMK SHIFT 144 - 2009 года выпуска`
-
№АртикулНазвание
-
12410777 HEATER, GRIP, LO/MED/HI, SHORTHEATER, GRIP, LO/MED/HI, SHORT
-
22010290 ASM., LEFT HAND CONTROL (INCL. 3)ASM., LEFT HAND CONTROL (INCL. 3)
-
35433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREW, .75SCREW, .75
-
57512078 SCREW, 1.12SCREW, 1.12
-
67517566 SCREW, 1.50SCREW, 1.50
-
77518157 SCREWSCREW
-
84011114 CAPACITORCAPACITOR
-
95010339 SPACERSPACER
-
104012476 REGULATORREGULATOR
-
114010868 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
127556357 WASHERWASHER
-
132410369 SENSOR, DETONATIONSENSOR, DETONATION
-
147517262 SCREWSCREW
-
154011540 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
167547274 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
174011518 ECUECU
-
183131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
192410983 ASM., EGT SENSOR W/WASHERASM., EGT SENSOR W/WASHER
-
195335351 WASHER, EGT SENSORWASHER, EGT SENSOR
-
205410611 CAP W/KEY (SEE NOTE)CAP W/KEY (SEE NOTE)
-
217547035 NUT, IGNITIONNUT, IGNITION
-
222200358 KIT, IGNITION, SWITCHKIT, IGNITION, SWITCH
-
232410422 SENSOR, T-MAPSENSOR, T-MAP
-
247512095 SCREWSCREW
-
252410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
267512232 SCREWSCREW
-
277080138 CABLE TIECABLE TIE
-
287080963 J-CLIPJ-CLIP
-
297512095 SCREWSCREW
