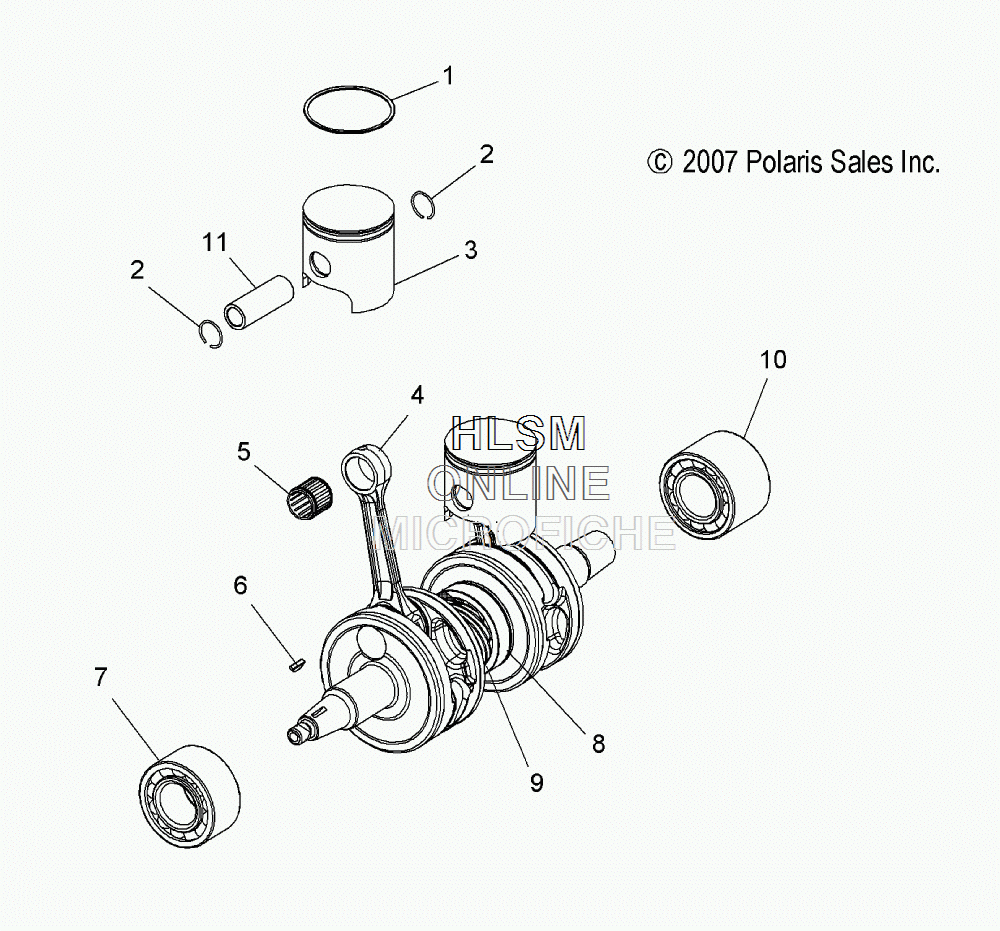

CRANKSHAFT ASSY. W/ PISTON для Polaris 800 IQ ES EURO (S09PB8ESL) - 2009 года выпуска`
-
№АртикулНазвание
-
2203717 KIT, CRANKSHAFT (INCL. 4,5,7-10)KIT, CRANKSHAFT (INCL. 4,5,7-10)
-
12203944 KIT, PISTON RINGSKIT, PISTON RINGS
-
23021840 CIRCLIP, PISTONCIRCLIP, PISTON
-
32203943 KIT, PISTON (INCL. 1,2,11) (SEE NOTE WHEN REPLACING)KIT, PISTON (INCL. 1,2,11) (SEE NOTE WHEN REPLACING)
-
42203584 KIT, CONNECTING RODKIT, CONNECTING ROD
-
53514357 BEARINGBEARING
-
67721117 KEY, WOODRUFFKEY, WOODRUFF
-
73514499 BEARING, BALL, DOUBLE ROWBEARING, BALL, DOUBLE ROW
-
83514363 BEARING, BALLBEARING, BALL
-
95133689 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
103514587 BEARINGBEARING
