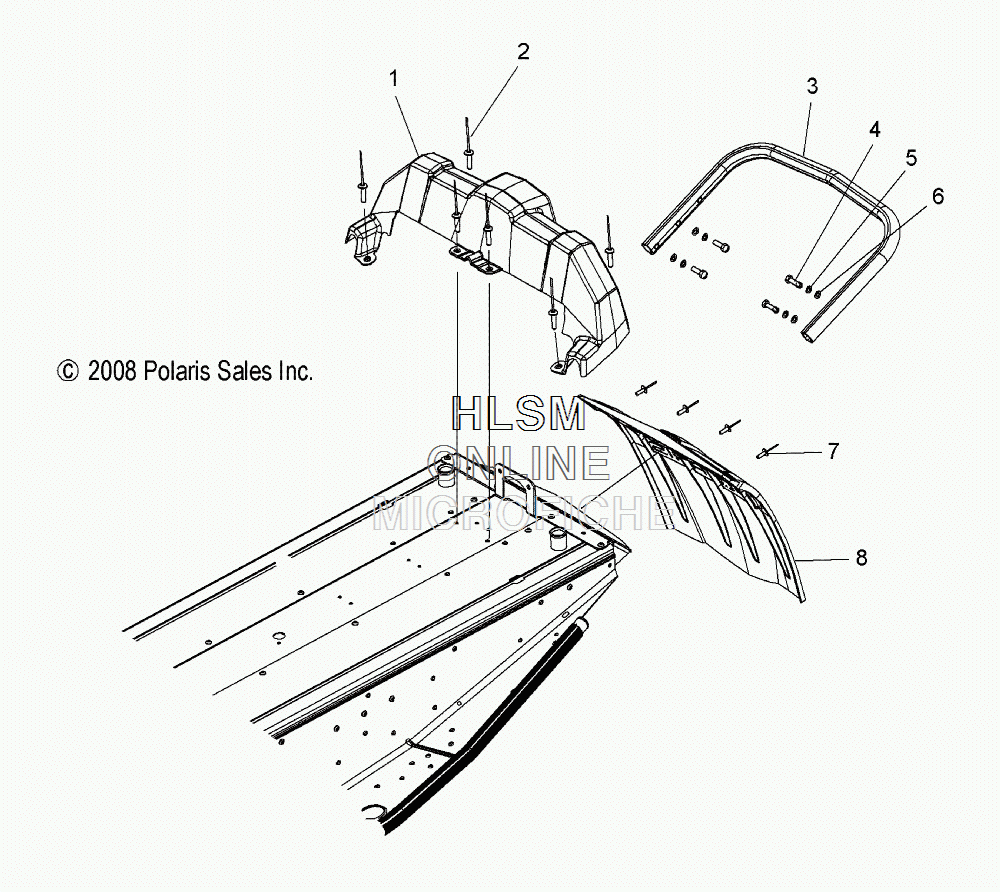

BUMPER - REAR W/SNOWFLAP AND TAILLIGHT для Polaris 800 DRAGON SP (S09PE8ES) - 2009 года выпуска`
-
№АртикулНазвание
-
12633477-070 ASM., TAILLIGHT COVER (BLACK) (INCL. WARNING DECALS)ASM., TAILLIGHT COVER (BLACK) (INCL. WARNING DECALS)
-
27660000 RIVETRIVET
-
32633481-309 ASM., BUMPER, REAR, NATURALASM., BUMPER, REAR, NATURAL
-
47517455 SCREWSCREW
-
57552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67558301 WASHER, FLATWASHER, FLAT
-
77621467 RIVETRIVET
-
85434954-070 FLAP, SNOW (BLACK)FLAP, SNOW (BLACK)
