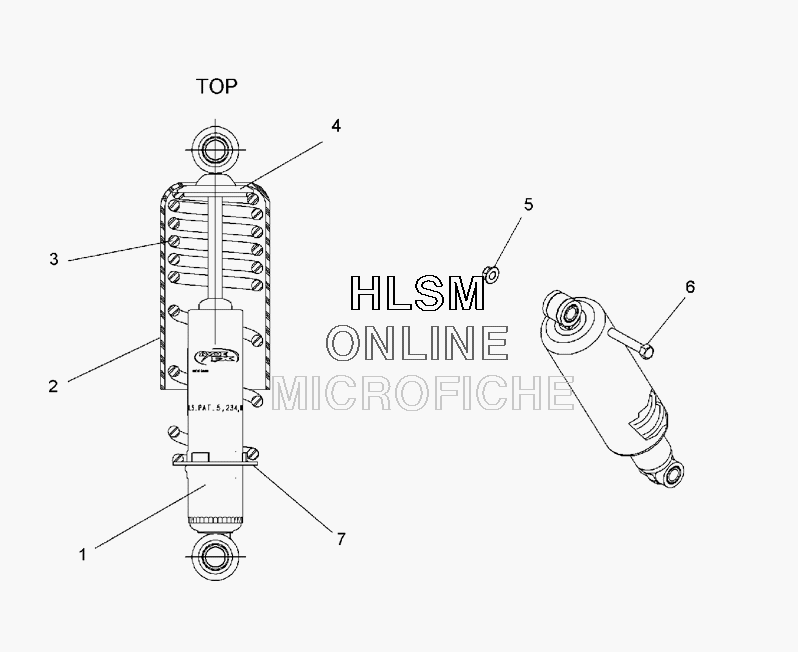

SUSPENSION - FRONT SHOCK TRACK - EXTERNAL для Polaris 800 DRAGON RMK 163 (S09PH8FS) - 2009 года выпуска`
-
№АртикулНазвание
-
17043048 SHOCK-F/T,TWIN TUBE FX, BLACKSHOCK-F/T,TWIN TUBE FX, BLACK
-
25433503 SHIELD-SPRING,3.00SHIELD-SPRING,3.00
-
37041870-067 SPRING-.190 FRNT TRCK SHCK, BLACKSPRING-.190 FRNT TRCK SHCK, BLACK
-
45630580 RETAINER,SPRING,SLOTTEDRETAINER,SPRING,SLOTTED
-
57542411 NUT,FLEXLOCNUT,FLEXLOC
-
67512410 BOLTBOLT
-
75245067 RETAINER-SPRING,GAB,PLATEDRETAINER-SPRING,GAB,PLATED
