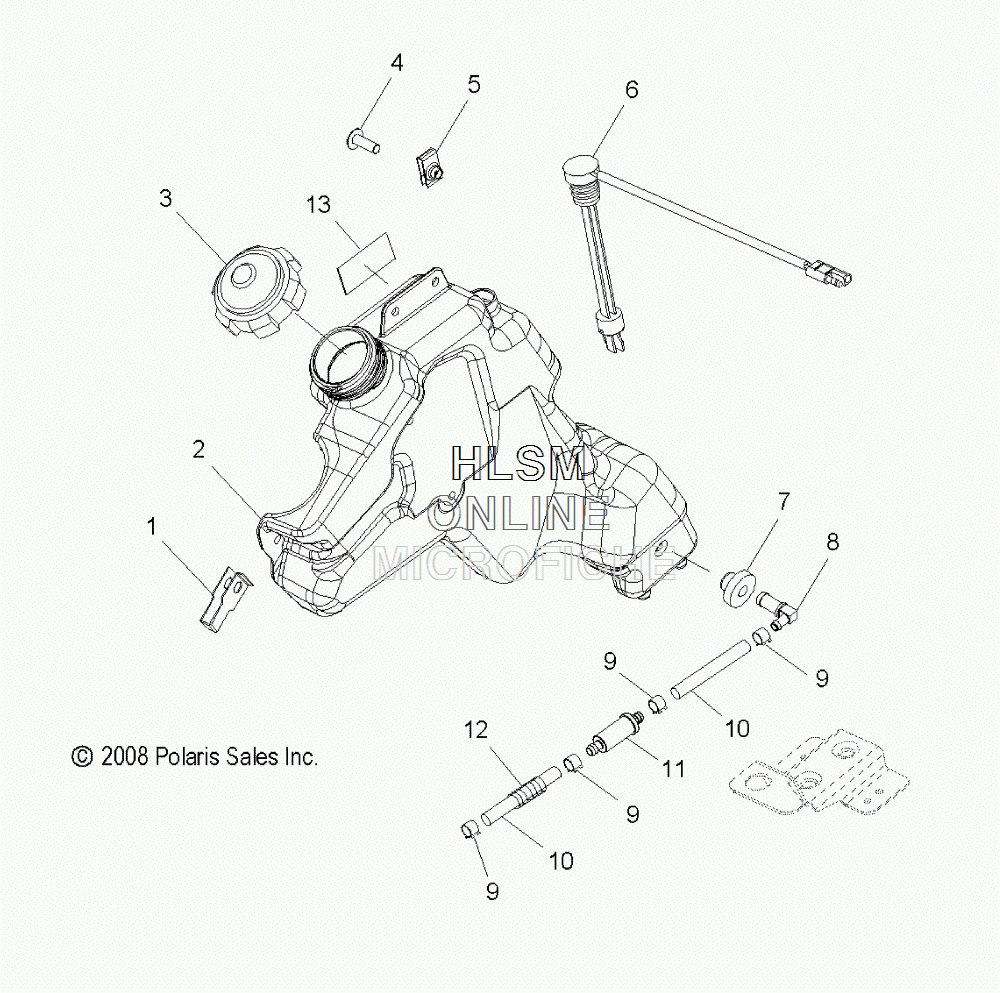

OIL TANK ASSEMBLY для Polaris 800 DRAGON ES EURO (S09PE8EEL) - 2009 года выпуска`
-
№АртикулНазвание
-
17670145 NUT, U-TYPENUT, U-TYPE
-
22520650 ASM., OIL TANK (INCL. 1,6,7,8)ASM., OIL TANK (INCL. 1,6,7,8)
-
31240094 CAP, OIL, VENTEDCAP, OIL, VENTED
-
47515199 SCREWSCREW
-
57670096 NUT, CHIMNEYNUT, CHIMNEY
-
64110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
77052362 GROMMET, FLANGEDGROMMET, FLANGED
-
87052208 FITTINGFITTING
-
97080307 CLAMP, HOSECLAMP, HOSE
-
108450003-1525 LINE, FUELLINE, FUEL
-
112530009 FILTERFILTER
-
124010051-100 CONDUIT, CONVOLUTED (SVC)CONDUIT, CONVOLUTED (SVC)
-
137173616 DECAL, OIL, VES (GOLD)DECAL, OIL, VES (GOLD)
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY KITS
- BUMPER - FRONT W/ NOSEPAN- FOAM- AND FOIL
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS
- FOOTRESTS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- OIL PUMP W/LINES
- • OIL TANK ASSEMBLY
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/ OWNERS MANUAL
- TORQUE ARM - FRONT
- TORQUE ARM - REAR
- WATER PUMP
- WINDSHIELD
- WIRING HARNESS
