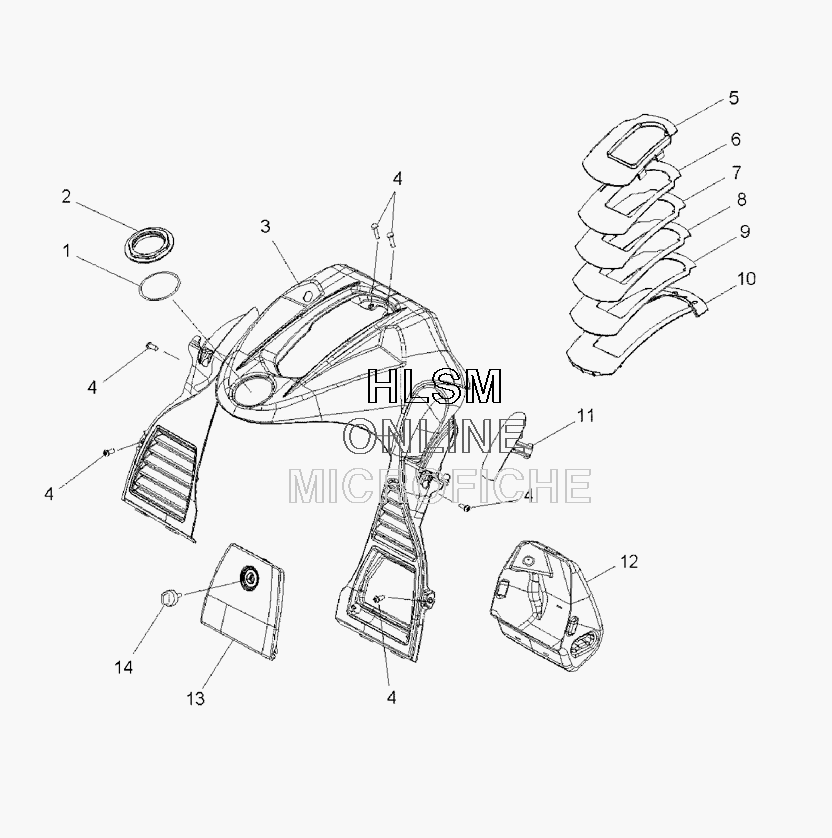

CONSOLE для Polaris 700 TURBO SWITCHBACK (S09PR7FS) - 2009 года выпуска
‹-+›
-
№АртикулНазвание
-
15411174 O-RINGO-RING
-
25435156 NUT-FILLER NECKNUT-FILLER NECK
-
32633279-070 ASM-CONSOLE, SDI, BLACK (INCL. WARNING DECALS)ASM-CONSOLE, SDI, BLACK (INCL. WARNING DECALS)
-
47517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
55436222 COVER-ADJ STEERING, TOPCOVER-ADJ STEERING, TOP
-
65436223 PLATE-ADJ STEERING, 1PLATE-ADJ STEERING, 1
-
75436224 PLATE-ADJ STEERING, 2PLATE-ADJ STEERING, 2
-
85436225 PLATE-ADJ STEERING, 3PLATE-ADJ STEERING, 3
-
95436226 PLATE-ADJ STEERING, 4PLATE-ADJ STEERING, 4
-
105436227 COVER-ADJ STEERING, BOTTOMCOVER-ADJ STEERING, BOTTOM
-
115436403-070 CLOSURE-RECOIL, Q, BLACKCLOSURE-RECOIL, Q, BLACK
-
125435944 COMPARTMENT-STORAGE, RIGHT HANDCOMPARTMENT-STORAGE, RIGHT HAND
-
132632858-070 DOOR ASM, CONSOLE, RIGHT HAND, BLACKDOOR ASM, CONSOLE, RIGHT HAND, BLACK
-
145435207-070 KEY-BLACKKEY-BLACK
