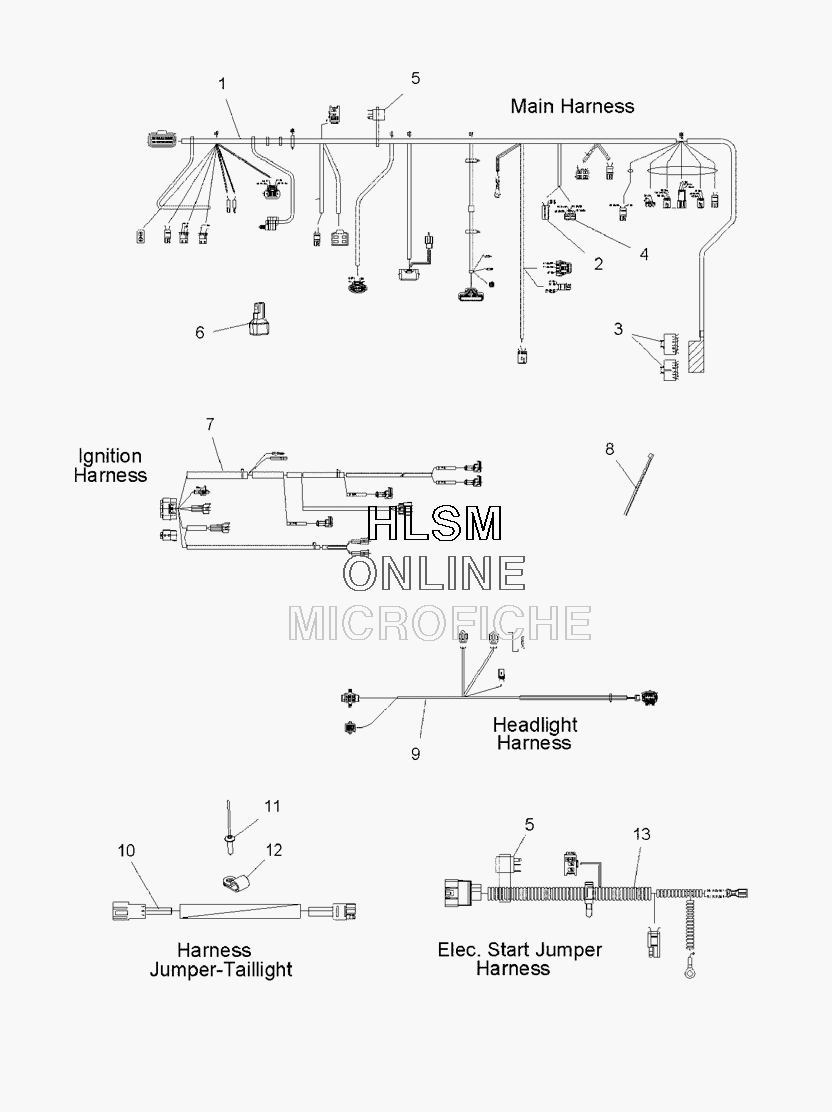

WIRING HARNESS для Polaris 600 SWITCHBACK (S09PR6HSL) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2411040 HARNESS-MAIN WIRE, 6/7 SDI CR
    HARNESS-MAIN WIRE, 6/7 SDI CR
  • 2
    4020063 HOUSING, PACK
    HOUSING, PACK
  • 3
    4010193 HOUSING-CONNECTOR, PAC #12186213
    HOUSING-CONNECTOR, PAC #12186213
  • 4
    4020062 RECEPTACLE HOUSING
    RECEPTACLE HOUSING
  • 5
    4010948 RELAY-MICRO, SPST, 35A, SEALED
    RELAY-MICRO, SPST, 35A, SEALED
  • 6
    4011441 CAPACITOR-FILTER
    CAPACITOR-FILTER
  • 7
    4011756 HARNESS-IGN 6/7SDI W/INJKOK SP
    HARNESS-IGN 6/7SDI W/INJKOK SP
  • 8
    7080138 CABLE TIE
    CABLE TIE
  • 9
    2410900 HARNESS-HEADLIGHT SDI
    HARNESS-HEADLIGHT SDI
  • 10
    2410916 HARNESS-JUMPER, TAILLIGHT (IQ)
    HARNESS-JUMPER, TAILLIGHT (IQ)
  • 11
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 12
    7080539 CLAMP, NYLON, CABLE
    CLAMP, NYLON, CABLE
  • 13
    2411041 HARNESS-JUMPER, ES, SDI
    HARNESS-JUMPER, ES, SDI
