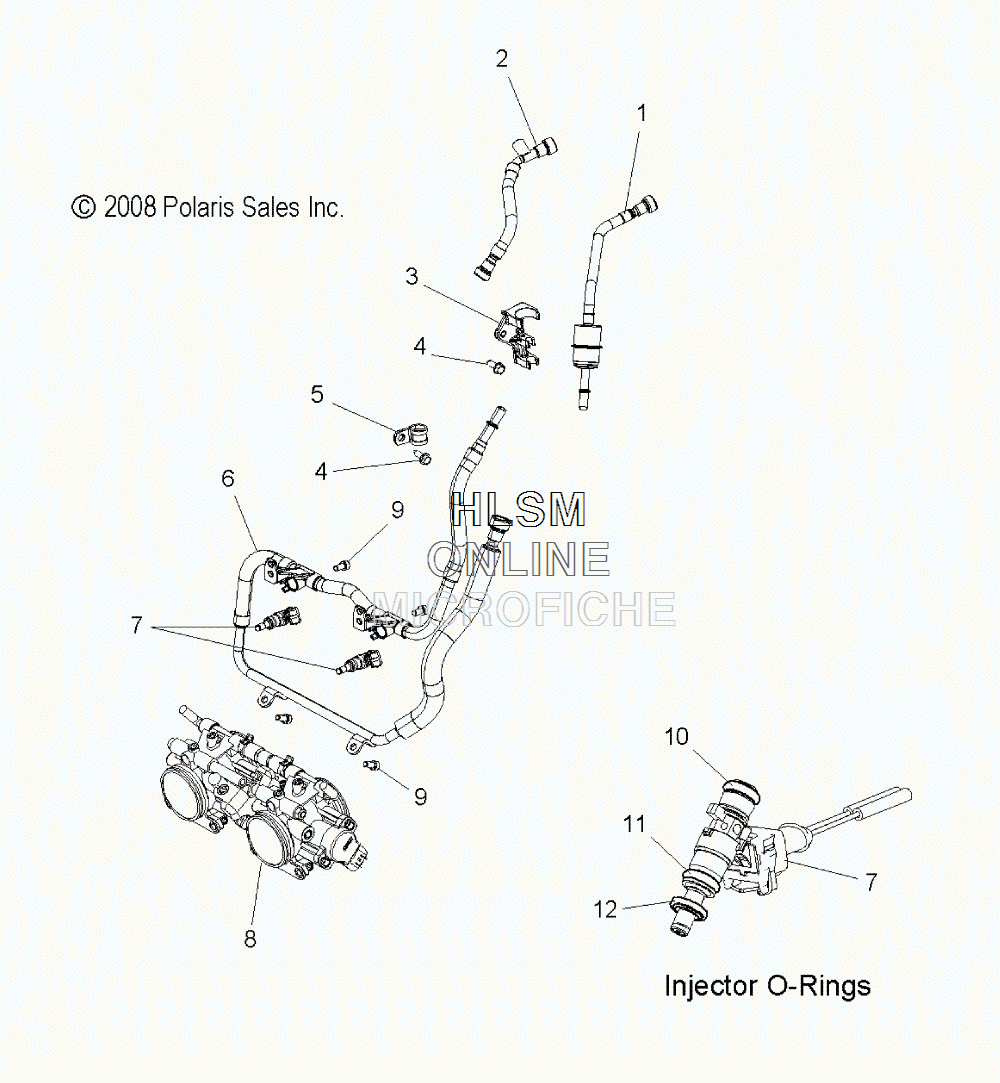

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 RMK SHIFT 155 - 2009 года выпуска`
-
№АртикулНазвание
-
12520771 ASM., FUEL LINE W/FILTERASM., FUEL LINE W/FILTER
-
22520770 ASM., FUEL LINE, RETURNASM., FUEL LINE, RETURN
-
31203256 ASM., FUEL FILTER RETAINERASM., FUEL FILTER RETAINER
-
35812996 PAD, FUEL FILTERPAD, FUEL FILTER
-
47512095 SCREWSCREW
-
57080573 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
62520822 ASM., FUEL RAILASM., FUEL RAIL
-
72203894-015 KIT, INJECTOR (RED) (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR (RED) (INCLUDES 1 INJECTOR PER KIT)
-
72203894-027 KIT, INJECTOR (BLUE) (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR (BLUE) (INCLUDES 1 INJECTOR PER KIT)
-
72203894-053 KIT, INJECTOR (YELLOW) (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR (YELLOW) (INCLUDES 1 INJECTOR PER KIT)
-
81203213 ASM., THROTTLE BODYASM., THROTTLE BODY
-
97517431 SCREWSCREW
-
101500198 O-RING (BLACK) (1 PER INJECTOR)O-RING (BLACK) (1 PER INJECTOR)
-
115412891 O-RING (BROWN) (1 PER INJECTOR)O-RING (BROWN) (1 PER INJECTOR)
-
125436287 BUSHING, RUBBER (GREEN) (1 PER INJECTOR)BUSHING, RUBBER (GREEN) (1 PER INJECTOR)
