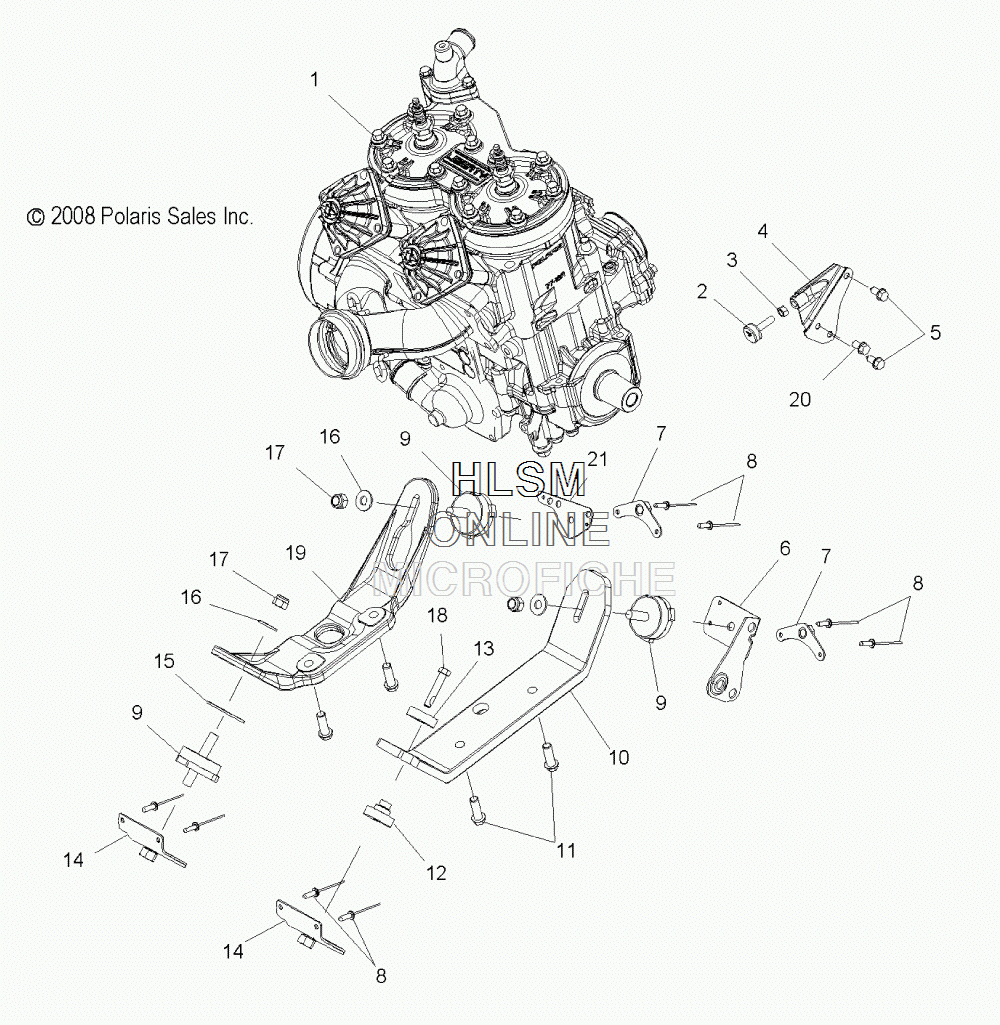

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 RMK SHIFT 155 - 2009 года выпуска`
-
№АртикулНазвание
-
12203914 KIT, SHORT BLOCK (SEE NOTE)KIT, SHORT BLOCK (SEE NOTE)
-
23021354 TORQUE, STOPTORQUE, STOP
-
37542404 NUTNUT
-
41015359 TORQUE, STOPTORQUE, STOP
-
57517854 SCREWSCREW
-
61015415 TORQUE STOP/ENGINE MOUNTTORQUE STOP/ENGINE MOUNT
-
71015202 PLATE, NUT, REARPLATE, NUT, REAR
-
87661637 RIVETRIVET
-
93021717 ISOLATOR, RUBBERISOLATOR, RUBBER
-
105135856 STRAP, ENGINE MOUNT, LEFT HANDSTRAP, ENGINE MOUNT, LEFT HAND
-
117518644 SCREWSCREW
-
125413303 MOUNT, ENGINE RUBBER, BOTTOMMOUNT, ENGINE RUBBER, BOTTOM
-
135413350 MOUNT, ENGINE RUBBER, TOPMOUNT, ENGINE RUBBER, TOP
-
141016001 ASM., PLATE, CLINCH NUTASM., PLATE, CLINCH NUT
-
157556498 WASHERWASHER
-
167555893 WASHER, FLATWASHER, FLAT
-
177542451 NUTNUT
-
187518782 SCREWSCREW
-
195135326 STRAP, ENGINE MOUNT, RIGHT HANDSTRAP, ENGINE MOUNT, RIGHT HAND
-
207517632 SCREWSCREW
-
215250173 SUPPORT, ENGINE MOUNT, REARSUPPORT, ENGINE MOUNT, REAR
