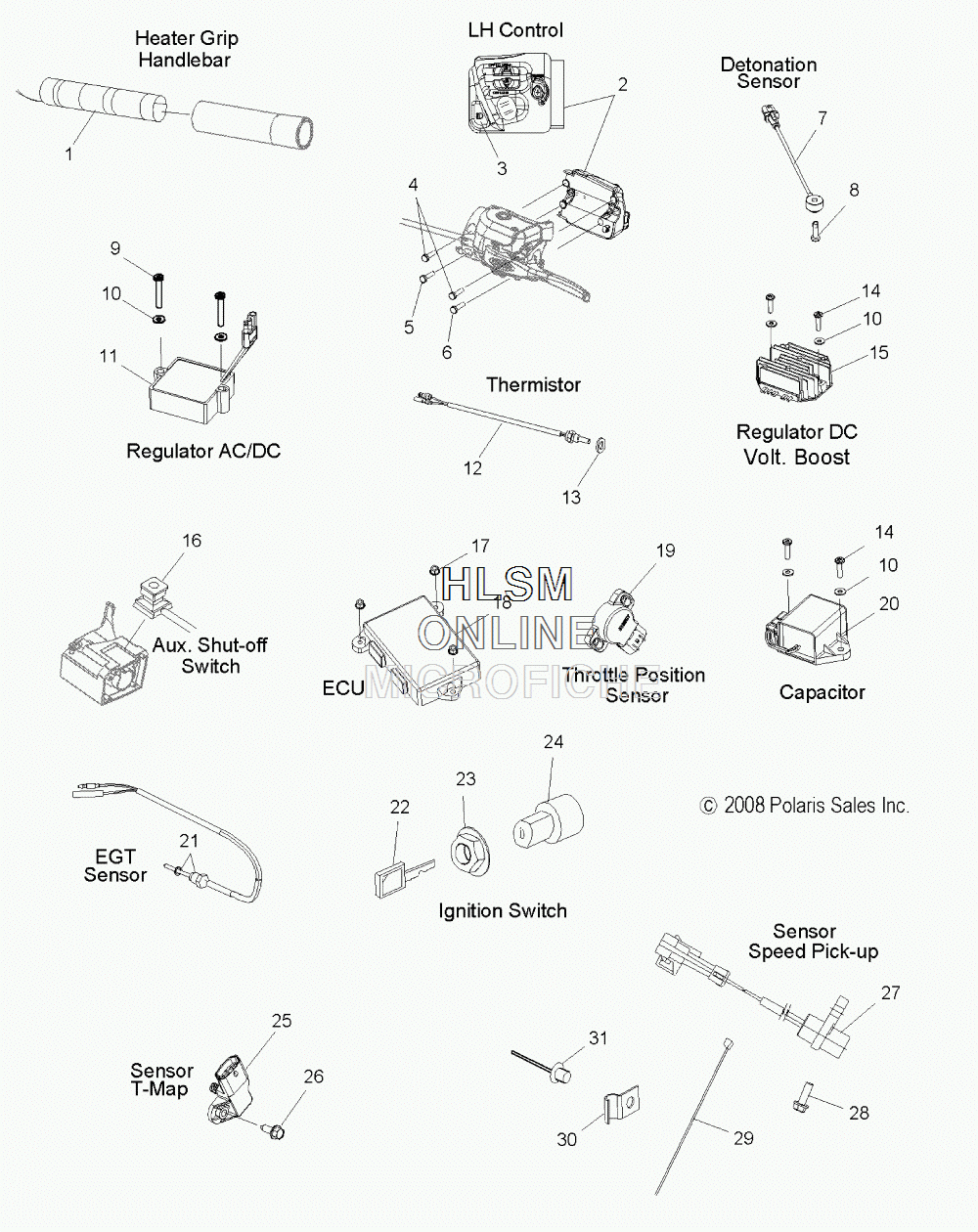

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 RMK SHIFT 155 - 2009 года выпуска`
-
№АртикулНазвание
-
12410777 HEATER, GRIP, LO/MED/HI, SHORTHEATER, GRIP, LO/MED/HI, SHORT
-
22010290 ASM., LEFT HAND CONTROL (INCL. 3)ASM., LEFT HAND CONTROL (INCL. 3)
-
35433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREW, .75SCREW, .75
-
57512078 SCREW, 1.12SCREW, 1.12
-
67517566 SCREW, 1.50SCREW, 1.50
-
72410369 SENSOR, DETONATIONSENSOR, DETONATION
-
87517262 SCREWSCREW
-
97519051 SCREWSCREW
-
107555904 WASHERWASHER
-
114010794 REGULATOR, AC/DCREGULATOR, AC/DC
-
124012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
137556357 WASHERWASHER
-
147519050 SCREWSCREW
-
154012263 REGULATOR, 20 AMP, 3-PHASE DC, VOLT BOOSTREGULATOR, 20 AMP, 3-PHASE DC, VOLT BOOST
-
164011830 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
177547274 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
184012371 ECUECU
-
193131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
204011114 CAPACITORCAPACITOR
-
212410983 ASM., EGT SENSOR W/WASHER (INCL. WASHER)ASM., EGT SENSOR W/WASHER (INCL. WASHER)
-
215335351 WASHER, EGT SENSORWASHER, EGT SENSOR
-
225410611 CAP W/KEY (SEE NOTE)CAP W/KEY (SEE NOTE)
-
237547035 NUT, IGNITIONNUT, IGNITION
-
242200358 KIT, IGNITION, SWITCHKIT, IGNITION, SWITCH
-
252410422 SENSOR, T-MAPSENSOR, T-MAP
-
267512095 SCREWSCREW
-
272410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
287512232 SCREWSCREW
-
297080138 CABLE TIECABLE TIE
-
307080963 J-CLIPJ-CLIP
-
317661637 RIVETRIVET
