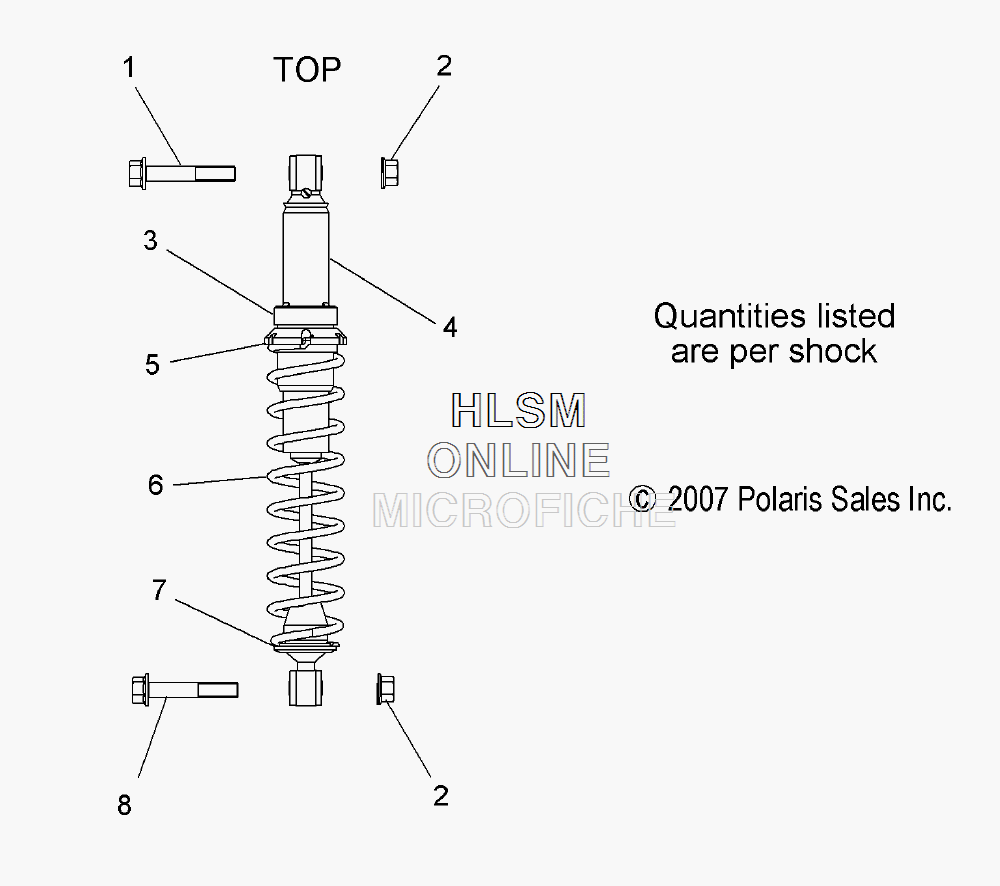

SUSPENSION - IFS SHOCK для Polaris 600 IQ SHIFT 136 (S09PR6KS) - 2009 года выпуска`
-
№АртикулНазвание
-
17518554 SCREWSCREW
-
27547180 NUT, FLANGENUT, FLANGE
-
31500063 RETAINER, SPRING BODY, THREADEDRETAINER, SPRING BODY, THREADED
-
47043289 SHOCK, IFS, MPVSHOCK, IFS, MPV
-
55431734 RING, SPRING, PRELOADRING, SPRING, PRELOAD
-
67041551-133 SPRING, COMPRESSION, IFS (WHITE)SPRING, COMPRESSION, IFS (WHITE)
-
75630580 RETAINER, SPRING, SLOTTED, CASTRETAINER, SPRING, SLOTTED, CAST
-
87518278 SCREWSCREW
