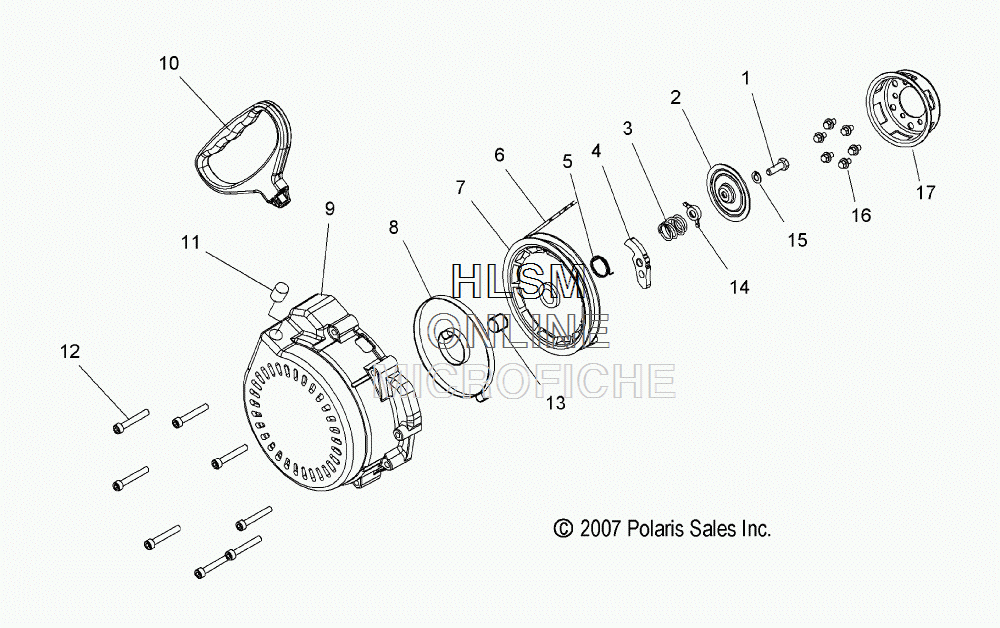

STARTER - RECOIL ASSEMBLY для Polaris 600 IQ RACER (S09MX6JS) - 2009 года выпуска`
-
№АртикулНазвание
-
-1202453 ASM., RECOIL (INCL. 1-9,11,12)ASM., RECOIL (INCL. 1-9,11,12)
-
17517984 SCREWSCREW
-
23021650 PLATE, FRICTIONPLATE, FRICTION
-
33021649 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET, PAWL ELECTRIC REVRATCHET, PAWL ELECTRIC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040169 ROPE, STARTERROPE, STARTER
-
75434936 REEL, RECOILREEL, RECOIL
-
83021648 SPRING, SPIRALSPRING, SPIRAL
-
95631420 HOUSING, RECOIL STARTERHOUSING, RECOIL STARTER
-
105435154-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
113040171 BUSHING, ROPE SLIDEBUSHING, ROPE SLIDE
-
127510005 SCREWSCREW
-
135435487 BUSHINGBUSHING
-
145435488 GUIDE, RATCHETGUIDE, RATCHET
-
157556319 WASHERWASHER
-
167517278 SCREWSCREW
-
173021618 PULLEY, STARTER, RECOILPULLEY, STARTER, RECOIL
