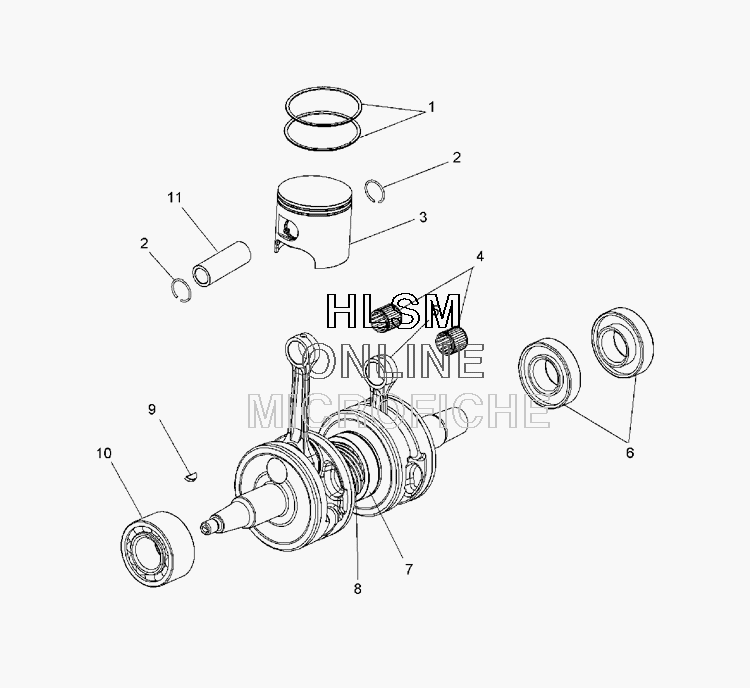

CRANKSHAFT ASSY. W/ PISTON для Polaris 600 DRAGON SWITCHBACK (S09PS6HSL) - 2009 года выпуска`
-
№АртикулНазвание
-
2203579 KIT-CRANKSHAFT 1203530 (INCL. 6-9)KIT-CRANKSHAFT 1203530 (INCL. 6-9)
-
12203903 KIT-PISTON RING 77.25AWKIT-PISTON RING 77.25AW
-
23022950 CIRCLIP, PISTON, 20MM., (2)CIRCLIP, PISTON, 20MM., (2)
-
32203899 KIT-PISTON 3021979 (INCL. 1, 2, 11)KIT-PISTON 3021979 (INCL. 1, 2, 11)
-
43514365 BEARING-17-20X25X23, PNPIN, KOYOBEARING-17-20X25X23, PNPIN, KOYO
-
52203593 KIT-CONN ROD ASMKIT-CONN ROD ASM
-
63514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
73514363 BEARING-BALL, 35X72X20, SL, KOYOBEARING-BALL, 35X72X20, SL, KOYO
-
85133689 GEAR-PUMP DRIVE 10 STARTGEAR-PUMP DRIVE 10 START
-
97721117 KEY, WOODRUFFKEY, WOODRUFF
-
103514499 BEARING-BALL, DBLROW 35X72X36.5BEARING-BALL, DBLROW 35X72X36.5
