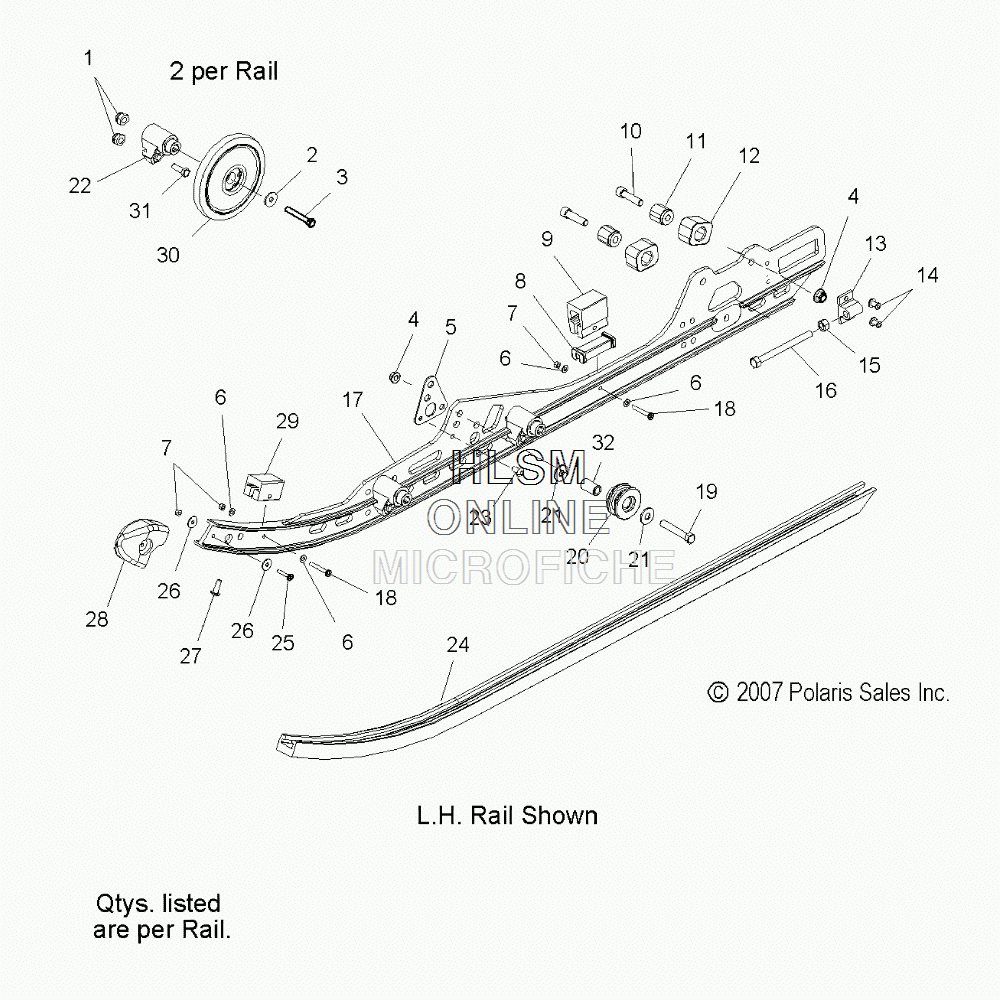

SUSPENSION - RAIL MOUNTING для Polaris 550 IQ SHIFT (S09PB5BS) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 2
    7556179 WASHER, SPRING
    WASHER, SPRING
  • 3
    7515346 SCREW
    SCREW
  • 4
    7547263 NUT, NYLOK
    NUT, NYLOK
  • 5
    5252656 BRACKET, RAIL REINFORCEMENT
    BRACKET, RAIL REINFORCEMENT
  • 6
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 7
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 8
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 9
    5521498 BUMPER, JOUNCE, REAR
    BUMPER, JOUNCE, REAR
  • 10
    7515537 BOLT
    BOLT
  • 11
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 12
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 13
    5130530 BLOCK, IDLER BOLT ADJUSTING
    BLOCK, IDLER BOLT ADJUSTING
  • 14
    7621501 RIVET
    RIVET
  • 15
    7542404 NUT
    NUT
  • 16
    7517227 SCREW
    SCREW
  • 17
    1542632 ASM., RAIL, LEFT HAND (INCL. 6-9,13,14,18,25,26,28,29)
    ASM., RAIL, LEFT HAND (INCL. 6-9,13,14,18,25,26,28,29)
  • 17
    1542633 ASM., RAIL, RIGHT HAND (INCL. 6-9,13,14,18,25,26,28,29)
    ASM., RAIL, RIGHT HAND (INCL. 6-9,13,14,18,25,26,28,29)
  • 18
    7510504 SCREW
    SCREW
  • 19
    7515415 SCREW
    SCREW
  • 20
    5432982 ROLLER, SPRING
    ROLLER, SPRING
  • 21
    7555983 WASHER
    WASHER
  • 22
    5631446 BLOCK, MOUNT, WHEEL
    BLOCK, MOUNT, WHEEL
  • 23
    7661845 RIVET
    RIVET
  • 24
    5521632 SLIDER
    SLIDER
  • 25
    7518335 BOLT
    BOLT
  • 26
    7555792 WASHER
    WASHER
  • 27
    7515199 SCREW
    SCREW
  • 28
    5435527 CAP, RAIL TIP
    CAP, RAIL TIP
  • 29
    5521499 BUMPER, JOUNCE, FRONT
    BUMPER, JOUNCE, FRONT
  • 30
    1590419-070 ASM., WHEEL (BLACK)
    ASM., WHEEL (BLACK)
  • 30
    3514384 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 30
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 31
    7515317 BOLT
    BOLT
  • 32
    5135933 BUSHING
    BUSHING
