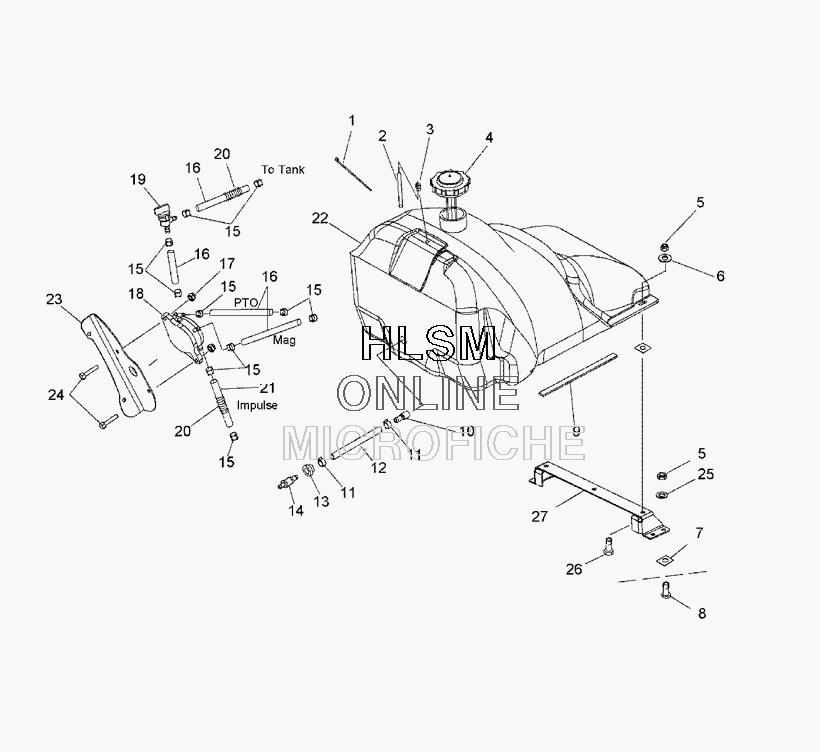

FUEL TANK W/FUEL LINES для Polaris 500 TRANSPORT EURO (S09NU5BE) - 2009 года выпуска`
-
№АртикулНазвание
-
17080804 CABLE TIE-RELEASABLE,5 1/2''CABLE TIE-RELEASABLE,5 1/2''
-
28450061-600 LINE,FUEL,3MMX7MMLINE,FUEL,3MMX7MM
-
37052095 FITTING,90 DEG,1/8FITTING,90 DEG,1/8
-
42520323 CAP-FUEL,12 GAL W/GAUGE,13.50CAP-FUEL,12 GAL W/GAUGE,13.50
-
45810512 GASKETGASKET
-
57542122 NUT-NYLOKNUT-NYLOK
-
67555960 WASHER,FLATWASHER,FLAT
-
77670021 NUT, SPEEDNUT, SPEED
-
87515203 BOLTBOLT
-
95810947 FOAM,SEALFOAM,SEAL
-
107052301 PICK-UP-FUEL,W/FILTER,105MICRNPICK-UP-FUEL,W/FILTER,105MICRN
-
117080402 RING, COMPRESSIONRING, COMPRESSION
-
128350019-160 FUEL LINE-ESTERFUEL LINE-ESTER
-
135435941 GROMMET-3/4'',VITONGROMMET-3/4'',VITON
-
147052375 FITTING-1/4 TO 1/4,STRAIGHTFITTING-1/4 TO 1/4,STRAIGHT
-
157080003 CLAMP,HOSECLAMP,HOSE
-
16
-
177542122 NUT-NYLOKNUT-NYLOK
-
183089751 ASM.-FUEL PUMPASM.-FUEL PUMP
-
197052249 VALVE-FUEL,PLASTIC 90°,1/4HOSEVALVE-FUEL,PLASTIC 90°,1/4HOSE
-
208360052-30 TUBING-CONVOLUTED,.500 ID,30CMTUBING-CONVOLUTED,.500 ID,30CM
-
218450040-600 LINE FUEL,1/4 ID(600 CM.)LINE FUEL,1/4 ID(600 CM.)
-
222520727 ASM-FUEL TANK,EDGE 11.8 (INC 3.10-14)ASM-FUEL TANK,EDGE 11.8 (INC 3.10-14)
-
235252233 BRACKET-FUEL PUMP,550BRACKET-FUEL PUMP,550
-
247512240 BOLTBOLT
-
257555843 WASHER,WROUGHTWASHER,WROUGHT
-
267512247 BOLTBOLT
-
275246436-067 BRKT-GASTANK, BLACKBRKT-GASTANK, BLACK
