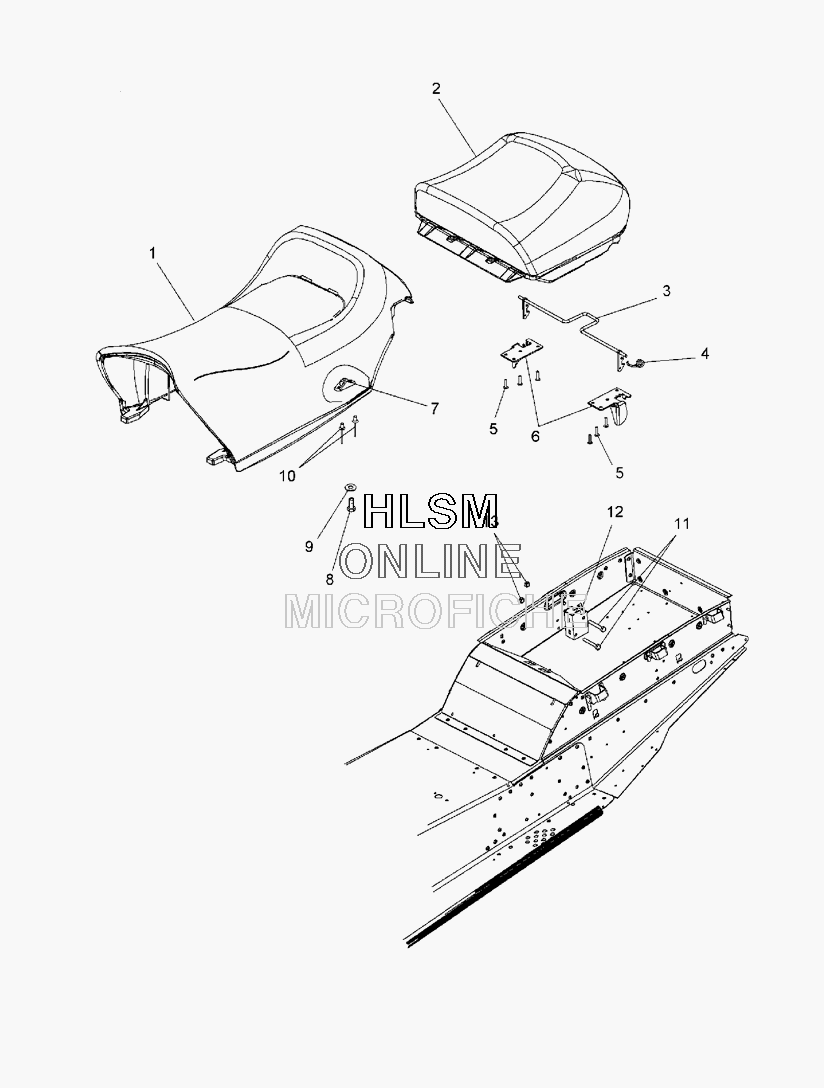

SEAT W/ TAILLIGHT для Polaris TRAIL TOURING (S08NT5BS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2683882 ASM-SEAT, EDGE CR TOURING
    ASM-SEAT, EDGE CR TOURING
  • 1
    2683883 ASM-SEAT COVER, EDGE CR TOURING
    ASM-SEAT COVER, EDGE CR TOURING
  • 2
    2684124 ASM-PASSENGER SEAT, EDGE
    ASM-PASSENGER SEAT, EDGE
  • 2
    2684125 ASM-PASSENGER SEAT COVER, EDGE
    ASM-PASSENGER SEAT COVER, EDGE
  • 3
    1015005 WELD-SEAT LATCH
    WELD-SEAT LATCH
  • 4
    7042246 SPRING-SEAT LATCH, TORSION
    SPRING-SEAT LATCH, TORSION
  • 5
    7621485 RIVET
    RIVET
  • 6
    5249088 PLATE-LATCH MNT, TOUR, LEFT HAND
    PLATE-LATCH MNT, TOUR, LEFT HAND
  • 6
    5249089 PLATE-LATCH MNT, TOUR, RIGHT HAND
    PLATE-LATCH MNT, TOUR, RIGHT HAND
  • 7
    5631194 NUT-SEAT
    NUT-SEAT
  • 8
    7517219 SCREW
    SCREW
  • 9
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 10
    7621319 RIVET
    RIVET
  • 11
    7512130 BOLT
    BOLT
  • 12
    5246855 TUBE-STRIKER
    TUBE-STRIKER
  • 13
    7542122 NUT-NYLOK
    NUT-NYLOK
