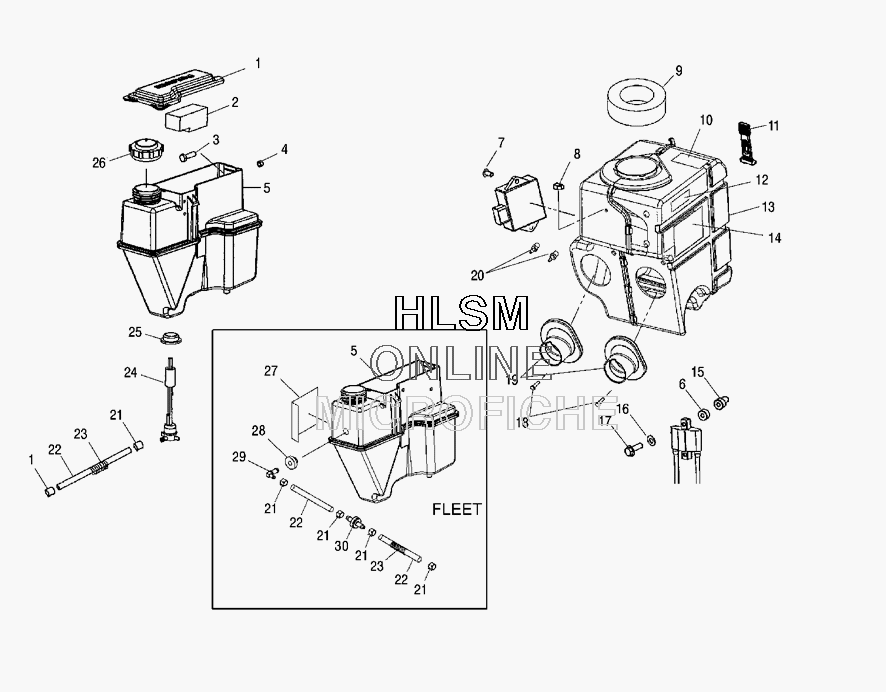

OIL TANK W/ AIR BOX ASSEMBLY для Polaris TRAIL TOURING DELUXE FLEET (S08NT5BSF) - 2008 года выпуска
-
№АртикулНазвание
-
15434089 COVER-TOOL BOXCOVER-TOOL BOX
-
25812209 FOAMFOAM
-
37512297 SCREWSCREW
-
47542122 NUT-NYLOKNUT-NYLOK
-
52520897 ASM-OIL TANK W/SENDER-RETURNASM-OIL TANK W/SENDER-RETURN
-
52520898 WELD-OIL BOTTLE W/RETURNWELD-OIL BOTTLE W/RETURN
-
67555932 WASHER, NYLONWASHER, NYLON
-
77512095 SCREWSCREW
-
87670102 CLIPCLIP
-
95811882 FOAMFOAM
-
1070753511 STRAPSTRAP
-
127073426 DECAL, GREASINGDECAL, GREASING
-
131203570 ASM-AIR SILENCER, 550 W/ERASM-AIR SILENCER, 550 W/ER
-
1471747012 NUT, WELLNUT, WELL
-
167552604 WASHERWASHER
-
177517610 SCREW (INCL. 19 & DECALS)SCREW (INCL. 19 & DECALS)
-
187511862 SCREWSCREW
-
195412189 BOOT-CARBURETORBOOT-CARBURETOR
-
207052127 FITTING, HOSEFITTING, HOSE
-
217080307 CLAMP, HOSECLAMP, HOSE
-
228450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
234010051-30 CONDUIT, CONVOLUTED (30 CM)CONDUIT, CONVOLUTED (30 CM)
-
244010660 SENDER-OIL, W/ FRONT TERMINALSSENDER-OIL, W/ FRONT TERMINALS
-
257052305 GROMMET-OIL SENDERGROMMET-OIL SENDER
-
261240094 CAP-OIL, VENTED/CUSTOM COLORCAP-OIL, VENTED/CUSTOM COLOR
-
275813303 FOIL-OIL BOTTLEFOIL-OIL BOTTLE
-
287052362 GROMMET-FLANGED, .36X.56X1.06GROMMET-FLANGED, .36X.56X1.06
-
297052208 FTTNG, 90 D.PRESS-ONFTTNG, 90 D.PRESS-ON
-
307052390 VALVE-CHECK, VACUUMVALVE-CHECK, VACUUM
