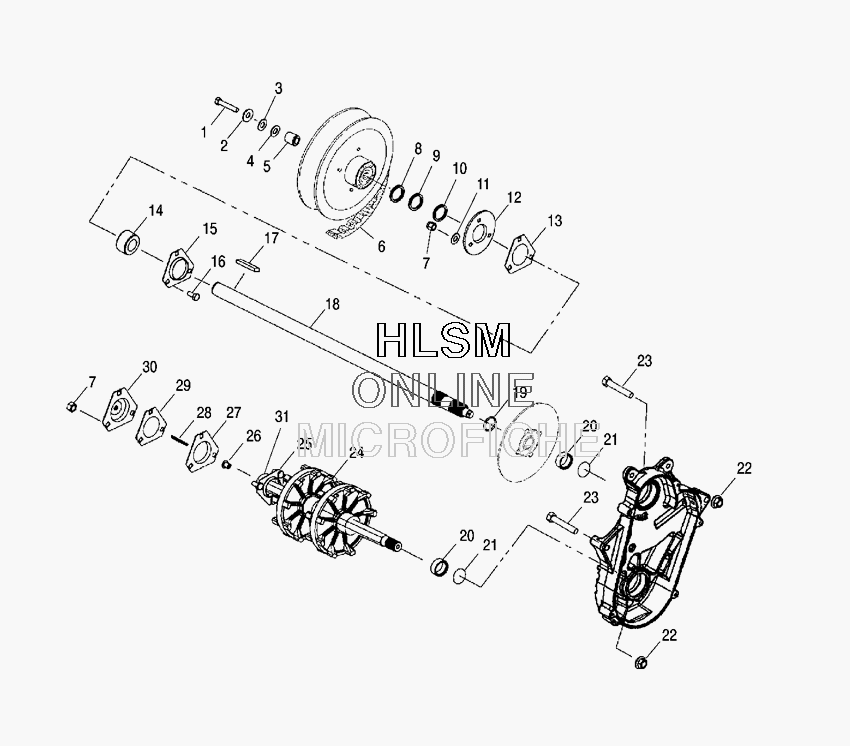

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris TRAIL RMK (S08NJ5BS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7515348 SCREW, NYLOK
    SCREW, NYLOK
  • 2
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 3
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 4
    7555957 WASHER
    WASHER
  • 5
    5135621 SPACER-INPUT SHAFT, .984X.940
    SPACER-INPUT SHAFT, .984X.940
  • 6
    3211078 BELT DRIVE
    BELT DRIVE
  • 7
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 8
    7555917 WASHER
    WASHER
  • 9
    7555864 WASHER
    WASHER
  • 10
    7556509 BUSHING
    BUSHING
  • 11
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 12
    5241359 FLANGE RD, RELUBE W/ZERK
    FLANGE RD, RELUBE W/ZERK
  • 12
    7080561 FITTING, LUB/VEN
    FITTING, LUB/VEN
  • 13
    5811095 GASKET, JACKSHAFT, BLACK
    GASKET, JACKSHAFT, BLACK
  • 14
    3514617 BEARING-1XM52XM15, SPH
    BEARING-1XM52XM15, SPH
  • 15
    5222751 FLANGETTE
    FLANGETTE
  • 16
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 17
    7721128 KEY-1/4X3/16X2.75
    KEY-1/4X3/16X2.75
  • 18
    1332457 ASM-JACKSHAFT, 15T, W/CB, 1.06 (INCL. 14, 19)
    ASM-JACKSHAFT, 15T, W/CB, 1.06 (INCL. 14, 19)
  • 19
    7710422 RING, RETAINING
    RING, RETAINING
  • 20
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 21
    5410613 O RING
    O RING
  • 22
    7542423 NUT, FLANGE
    NUT, FLANGE
  • 23
    7515428 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 24
    1590429 ASM-DRSHAFT, 1.06, 9T 2DR-W, CB (INCL. 25, 26)
    ASM-DRSHAFT, 1.06, 9T 2DR-W, CB (INCL. 25, 26)
  • 25
    1012945 ASM.-FLANGETTE W/SCREWS
    ASM.-FLANGETTE W/SCREWS
  • 26
    3280019 BUSHING METAL SPEEDO
    BUSHING METAL SPEEDO
  • 27
    5243529 FLANGETTE-OFFSET, W/HOLE
    FLANGETTE-OFFSET, W/HOLE
  • 28
    3280017 KEY, SPEEDOMETER, SQUARE
    KEY, SPEEDOMETER, SQUARE
  • 29
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 30
    3280116 ADAPTER, DRIVE, W/ZERK
    ADAPTER, DRIVE, W/ZERK
  • 31
    3514448 BEARING-25MM SPH OD LUBE
    BEARING-25MM SPH OD LUBE
