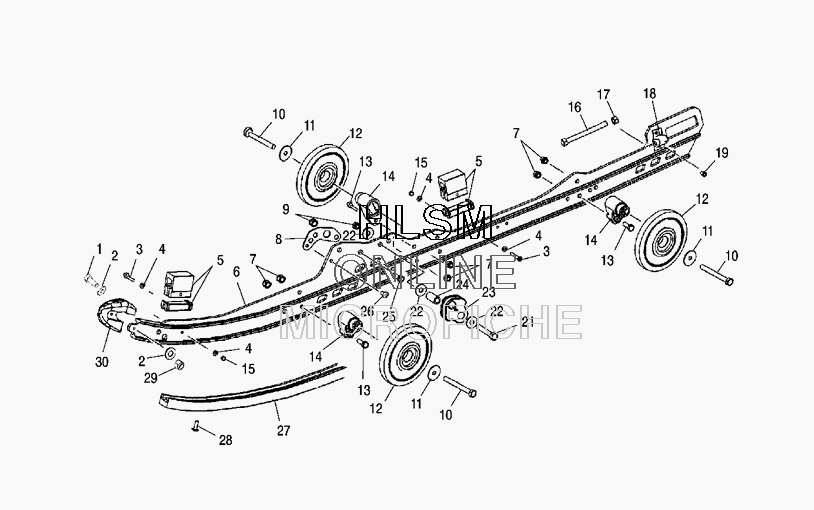

SUSPENSION - RAIL MOUNTING для Polaris TRAIL RMK CANADA (S08NJ5BSA) - 2008 года выпуска
-
№АртикулНазвание
-
17512007 BOLTBOLT
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHER, FLATWASHER, FLAT
-
55521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
55432946 LINER, BUMPERLINER, BUMPER
-
61541955 ASM-RAIL 136, LEFT HAND (INCL. 1-6, 18, 19, 29, 30)ASM-RAIL 136, LEFT HAND (INCL. 1-6, 18, 19, 29, 30)
-
61541956 ASM-RAIL 136, RIGHT HAND (INCL. 1-6, 18, 19, 29, 30)ASM-RAIL 136, RIGHT HAND (INCL. 1-6, 18, 19, 29, 30)
-
77542324 NUT, NYLOKNUT, NYLOK
-
85245411 BRKT-RAIL, REINFBRKT-RAIL, REINF
-
97542439 NUT, NYLOKNUT, NYLOK
-
107515346 SCREWSCREW
-
117556179 WASHER-SPRING, CON 5/16X.090-YWASHER-SPRING, CON 5/16X.090-Y
-
121590317 ASM-WHEEL, BOGIE, PLAIN, 5.62 (1 PER WHEEL)ASM-WHEEL, BOGIE, PLAIN, 5.62 (1 PER WHEEL)
-
123514303 BEARING #6205BEARING #6205
-
127718407 RING-RETAINING (1 PER WHEEL)RING-RETAINING (1 PER WHEEL)
-
137515317 BOLTBOLT
-
145631065 BLOCK-WHEEL MOUNT, LWTBLOCK-WHEEL MOUNT, LWT
-
157541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
167517227 SCREWSCREW
-
177542404 NUTNUT
-
185130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
197621501 RIVETRIVET
-
217515438 BOLTBOLT
-
227555983 WASHER, FLATWASHER, FLAT
-
235434334 GUIDE-SPRING SQUAREGUIDE-SPRING SQUARE
-
237661123 PIN-CLEVIS 3/16X1 1/4PIN-CLEVIS 3/16X1 1/4
-
237661644 PIN, HITCHPIN, HITCH
-
245333948 SPACER-.407X.625X1.33SPACER-.407X.625X1.33
-
257512457 BOLTBOLT
-
267661845 RIVETRIVET
-
275521632 SLIDER, .45/61'', SERVICE, BASICSLIDER, .45/61'', SERVICE, BASIC
-
287515199 SCREWSCREW
-
297541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
305434355 CAP-RAIL TIP UHMWCAP-RAIL TIP UHMW
