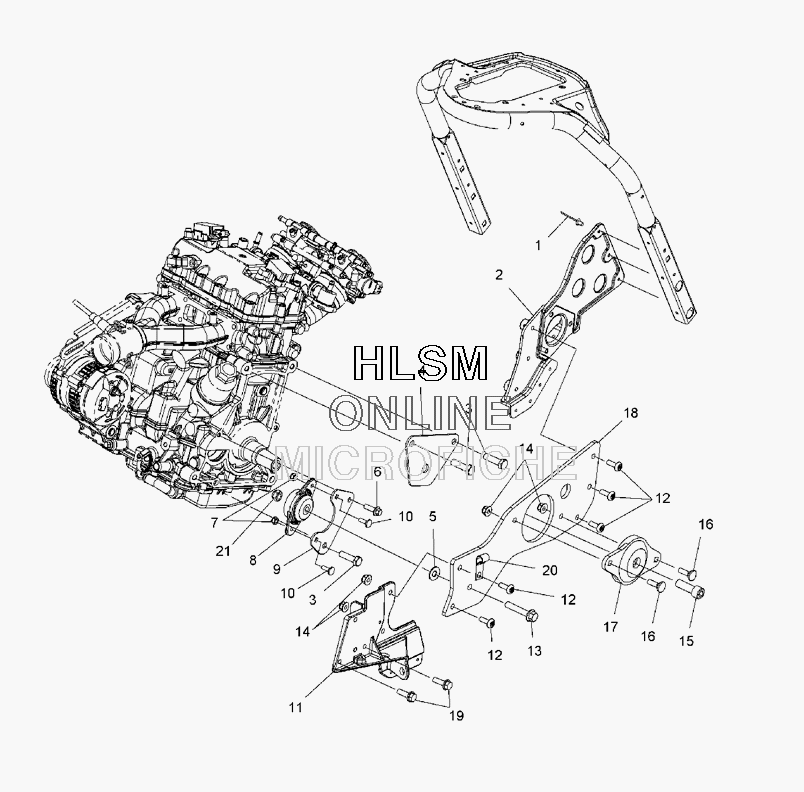

MOUNTING - L.H. для Polaris IQ TURBO DRAGON (S08PP7FS) - 2008 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25134106 MNT-JACKSHAFT BRG, LEFT HAND, MACHMNT-JACKSHAFT BRG, LEFT HAND, MACH
-
37518373 SCR-M10-1.5X35 HX/CAP-YSCR-M10-1.5X35 HX/CAP-Y
-
41014698 WELD-PLATE ENGINE MNTWELD-PLATE ENGINE MNT
-
57555815 WASHER, FLATWASHER, FLAT
-
67516734 SCREWSCREW
-
77542122 NUT-NYLOKNUT-NYLOK
-
83021719 MOUNT-ENGINEMOUNT-ENGINE
-
95249387 PLATE-FRT MNTPLATE-FRT MNT
-
107512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
115134777 SUPPORT-SHOCK TOWER, LEFT HAND, MACHSUPPORT-SHOCK TOWER, LEFT HAND, MACH
-
127518444 SCR-5/16-18-1, UNC, 2A, TRX-P30-YSCR-5/16-18-1, UNC, 2A, TRX-P30-Y
-
137518278 SCR-3/8-16X2 FLG HX GR5 ZSCR-3/8-16X2 FLG HX GR5 Z
-
147542343 NUT, FLANGENUT, FLANGE
-
157518374 SCR-1/2-13X1.50 SOC/HD/CP-YSCR-1/2-13X1.50 SOC/HD/CP-Y
-
167512331 BOLT, CARRIAGEBOLT, CARRIAGE
-
173021623 MOUNT-ENGINE, 4S, 3''MOUNT-ENGINE, 4S, 3''
-
185248666 PLATE-ENGINE STRAP, LEFT HANDPLATE-ENGINE STRAP, LEFT HAND
-
197518179 SCR-5/16-18X1.0, FLGHX, G5, LK-YSCR-5/16-18X1.0, FLGHX, G5, LK-Y
-
207080884 CLIP, JCLIP, J
-
217542449 NUT, FLANGE LOCKNUT, FLANGE LOCK
