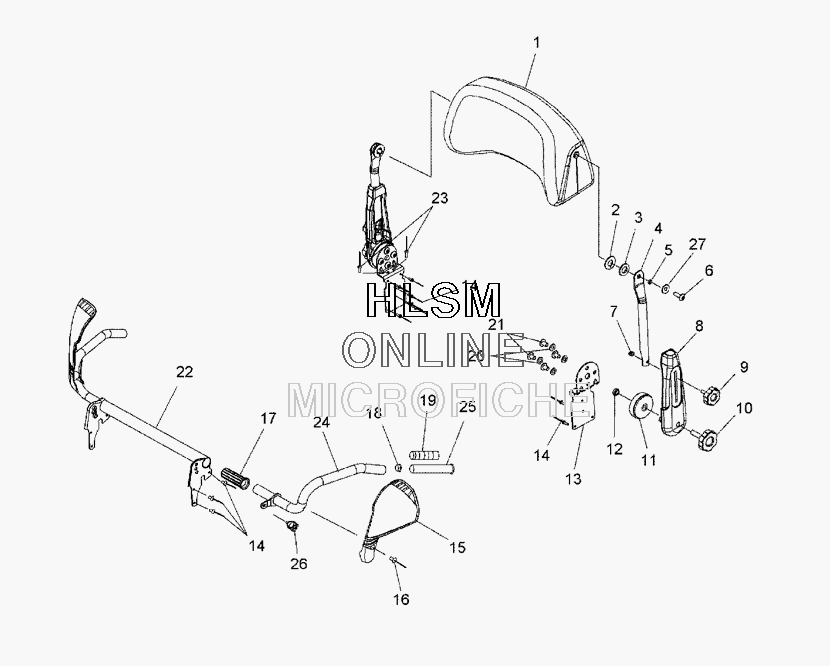

BACKREST W/GRAB HANDLE для Polaris FS IQ TOURING (S08PT7ES) - 2008 года выпуска
-
№АртикулНазвание
-
12684071 ASM-BACKRESTASM-BACKREST
-
25250122 PLATE-BACKER W/ NOTCHPLATE-BACKER W/ NOTCH
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45250118-067 ARM-ADJUSTER, BACKREST, BLACKARM-ADJUSTER, BACKREST, BLACK
-
55135464 SPACER-BACKREST PIVOTSPACER-BACKREST PIVOT
-
67510004 SCR-3/8-16X1 1/4 TORX/TRUSSSCR-3/8-16X1 1/4 TORX/TRUSS
-
77542324 NUT, NYLOKNUT, NYLOK
-
85436635 MOUNT-ADJ ARMMOUNT-ADJ ARM
-
97081484 KNOB-LARGE, 5/16'', LOW SHLDERKNOB-LARGE, 5/16'', LOW SHLDER
-
107081344 KNOB-LARGEKNOB-LARGE
-
115135462 CYLINDER-RATCHETCYLINDER-RATCHET
-
127547376 NUT-JAM, 1/2-13, HEX-ZNUT-JAM, 1/2-13, HEX-Z
-
135250119-067 BRACKET-MOUNT, BLACKBRACKET-MOUNT, BLACK
-
147661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
155436778 DEFLECTOR-WIND, PASSENGER, LEFT HANDDEFLECTOR-WIND, PASSENGER, LEFT HAND
-
155436779 DEFLECTOR-WIND, PASSENGER, RIGHT HANDDEFLECTOR-WIND, PASSENGER, RIGHT HAND
-
167621472 RIVETRIVET
-
175435997 BUSHING-GRABHANDLEBUSHING-GRABHANDLE
-
185431096 PLUGPLUG
-
192410548 HEATER-GRIP, PASSENGERHEATER-GRIP, PASSENGER
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217518651 SCR-3/8-16X.625 TX/TRUSS, GR5-YSCR-3/8-16X.625 TX/TRUSS, GR5-Y
-
221014908 TUBE, GRABHANDLETUBE, GRABHANDLE
-
237661130 RIVET-3/16-.214-.420RIVET-3/16-.214-.420
-
241015626-067 WELD-GRABHANDLE, TOUR, LEFT HAND, BLACKWELD-GRABHANDLE, TOUR, LEFT HAND, BLACK
-
241015627-067 WELD-GRABHANDLE, TOUR, RIGHT HAND, BLACKWELD-GRABHANDLE, TOUR, RIGHT HAND, BLACK
-
255435484-070 GRIP-HANDLEBAR, LONG, BLACKGRIP-HANDLEBAR, LONG, BLACK
-
262632756 ASM-KNOB, GRABHANDLEASM-KNOB, GRABHANDLE
-
277555823 WASHERWASHER
