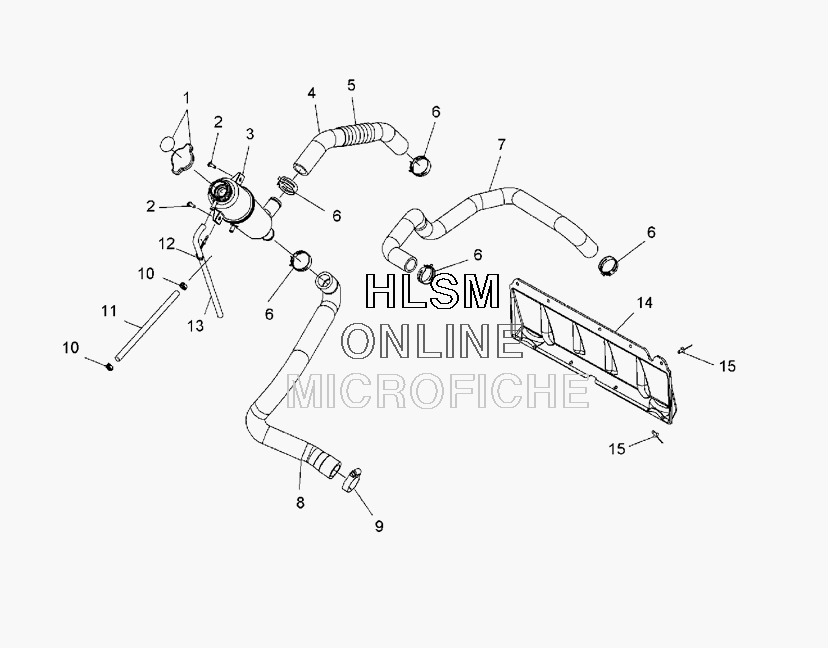

COOLING SYSTEM (163) для Polaris 800 DRAGON RMK 163 EURO (S08PH8EE) - 2008 года выпуска`
-
№АртикулНазвание
-
11240169 CAP-PRESSURECAP-PRESSURE
-
17170063 DECAL-WATER BOTTLE CAPDECAL-WATER BOTTLE CAP
-
27515148 SCREWSCREW
-
32520843 WELD-COOLANT BOTTLE, PLUGGEDWELD-COOLANT BOTTLE, PLUGGED
-
45413045 HOSE-TUNNEL COOLER/BOTTLEHOSE-TUNNEL COOLER/BOTTLE
-
55521510 TUBING-CONVOLUTED 1.25''X3''TUBING-CONVOLUTED 1.25''X3''
-
67080844 CLAMP, SPRINGBAND 35/12, BLACKCLAMP, SPRINGBAND 35/12, BLACK
-
75413293 HOSE-ENGINE OUT/TUNNEL TOPHOSE-ENGINE OUT/TUNNEL TOP
-
85413006 HOSE-BOTTLE/INLETHOSE-BOTTLE/INLET
-
97080560 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
107080534 CLAMP, HOSECLAMP, HOSE
-
118450123-153AR CLIP, JCLIP, J
-
138450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
145437050 COVER-FRT CLOSEOFFCOVER-FRT CLOSEOFF
-
157661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
