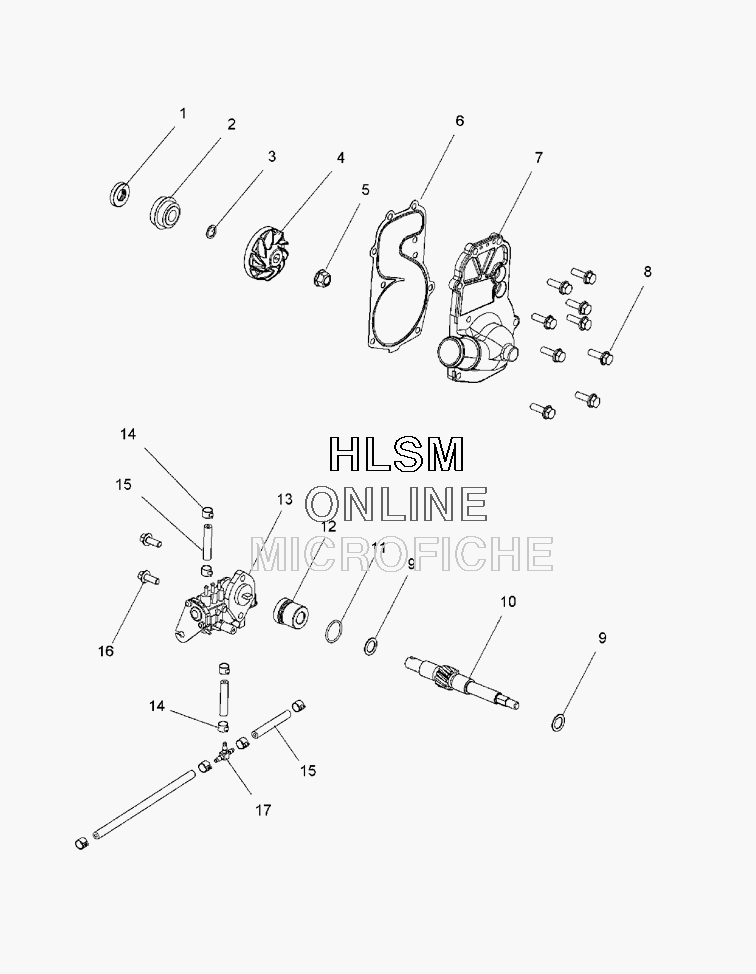

WATER PUMP/OIL PUMP для Polaris 800 DRAGON RMK 155 EURO (S08PG8EE) - 2008 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S, ARSSEAL, TYPE S, ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLAT, SS.WASHER, FLAT, SS.
-
45436648 IMPELLER-WATERPUMPIMPELLER-WATERPUMP
-
57547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
65811601 GASKET, WATERPUMP CVRIGHT HANDGASKET, WATERPUMP CVRIGHT HAND
-
75631951 COVER-WATERPUMP, SNOW HI-FLOWCOVER-WATERPUMP, SNOW HI-FLOW
-
87516822 SCREWSCREW
-
97555977 WASHER, THRUSTWASHER, THRUST
-
105135221 SHAFT-GEAR, WATER/OIL NOTCH DRSHAFT-GEAR, WATER/OIL NOTCH DR
-
115412942 O-RING .801X.941X.070O-RING .801X.941X.070
-
125136084 BEARING-PUMP SHFT, FLANGE 23DIABEARING-PUMP SHFT, FLANGE 23DIA
-
132520901 ASM-OIL PUMP 6 OUTLET 800ASM-OIL PUMP 6 OUTLET 800
-
147080603 CLAMPCLAMP
-
158450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
167518637 SCR-M6X1.0X16.0MM HEX-FL-Y/DSCR-M6X1.0X16.0MM HEX-FL-Y/D
-
177052048 FITTING, TEEFITTING, TEE
