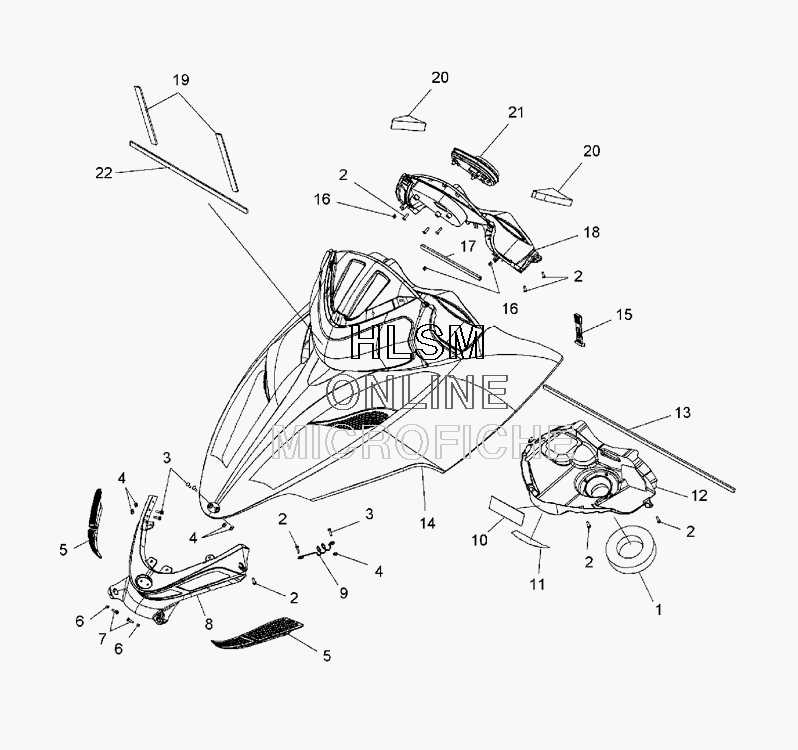

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 700 RMK EARLY PROD (S08PL7JST) - 2008 года выпуска`
-
№АртикулНазвание
-
15813186 FOAM-AIRBOX, CHIMNEY, W/PSAFOAM-AIRBOX, CHIMNEY, W/PSA
-
27518577 SCR-10X 5/8 TX PN PLST-243SCR-10X 5/8 TX PN PLST-243
-
37518281 SCR-10-24X5/8 TORX TH MS STL YSCR-10-24X5/8 TORX TH MS STL Y
-
47518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
55435848-070 SCREEN-HINGE, HI TEMP, LEFT HAND, BLACKSCREEN-HINGE, HI TEMP, LEFT HAND, BLACK
-
55435849-070 SCREEN-HINGE, HI TEMP, RIGHT HAND, BLACKSCREEN-HINGE, HI TEMP, RIGHT HAND, BLACK
-
57081040 RIVET-PLASTIC, R-LOCK, .197 DIARIVET-PLASTIC, R-LOCK, .197 DIA
-
65334429 BUSHING-.277X.375X.38, 6061BUSHING-.277X.375X.38, 6061
-
77518285 SCR-#14X1 1/4 HI/LO PH TRX YSCR-#14X1 1/4 HI/LO PH TRX Y
-
85435287-070 HINGE-GRILL, HOOD, BLACKHINGE-GRILL, HOOD, BLACK
-
97081133 CABLE-HOOD RETAINERCABLE-HOOD RETAINER
-
105812938 FOIL-HDLIGHT ACCESS COVER, #2FOIL-HDLIGHT ACCESS COVER, #2
-
115812937 FOIL-HDLIGHT ACCESS COVER #1FOIL-HDLIGHT ACCESS COVER #1
-
122633309 ASM-HEADLIGHT ACCESS COVER (INCL. 10, 11, 13, 25)ASM-HEADLIGHT ACCESS COVER (INCL. 10, 11, 13, 25)
-
135812782 FOAM-SEAL 35''FOAM-SEAL 35''
-
142633513-241 ASM-HOOD, MTN, PAINT, SVC, BWHTMET (INCL. FOAM/FOIL)ASM-HOOD, MTN, PAINT, SVC, BWHTMET (INCL. FOAM/FOIL)
-
155433150 STRAPSTRAP
-
167670112 NUT-#10, U-TYPE, A(.065-.087)NUT-#10, U-TYPE, A(.065-.087)
-
175521697-350 SEAL-BULB, .375, 350CMSEAL-BULB, .375, 350CM
-
185437049-070 POD-INSTRUMENT, BLACKPOD-INSTRUMENT, BLACK
-
195813125 FOAM-INSTRUMENT POD, SEAL, 10''FOAM-INSTRUMENT POD, SEAL, 10''
-
205813200 FOAM-FILTER, INLETFOAM-FILTER, INLET
-
202684072 FILTERFILTER
-
212410804 ASM-GAUGE, MFD, POLARISASM-GAUGE, MFD, POLARIS
-
225813126 FOAM-HEADLIGHT SEAL, 54''FOAM-HEADLIGHT SEAL, 54''
