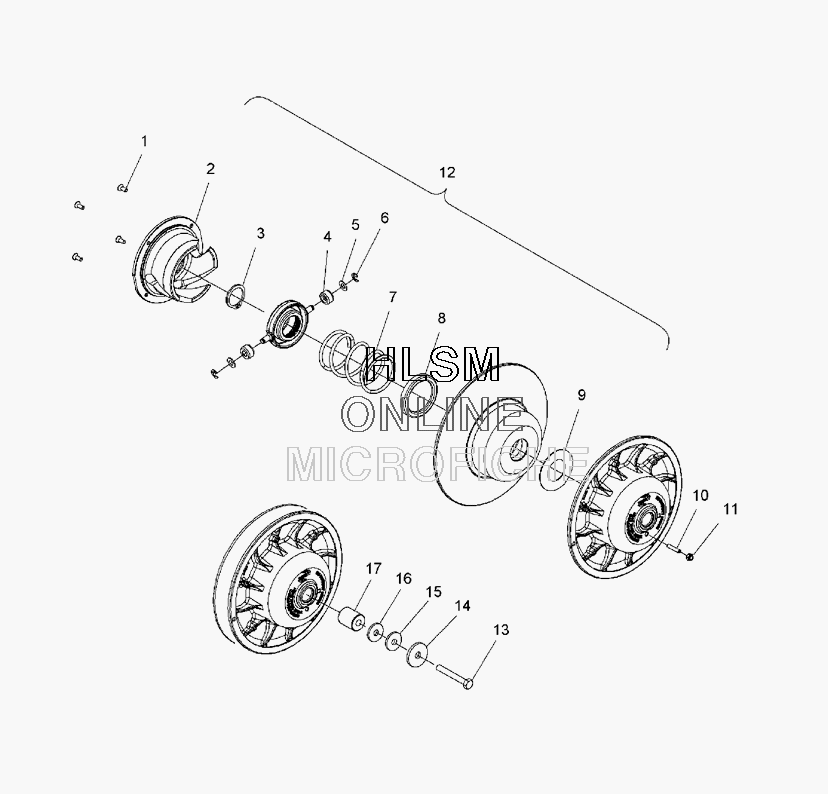

CLUTCH - DRIVEN для Polaris 700 DRAGON SWITCHBACK EURO (S08PS7JE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3234381 SCREW-CAP TORX SFCH1/4-28X.625
    SCREW-CAP TORX SFCH1/4-28X.625
  • 2
    5136255 RAMP-DRIVEN 42 STRAIGHT
    RAMP-DRIVEN 42 STRAIGHT
  • 3
    7710583 RET.RING-
    RET.RING-
  • 4
    5434534 ROLLER
    ROLLER
  • 5
    7556226 WASHER-THRUST
    WASHER-THRUST
  • 6
    7710523 RET.E-RING-E T.375
    RET.E-RING-E T.375
  • 7
    7043058 SPRING-DRVN CLTCH, LEFT HAND, RED/BLACK
    SPRING-DRVN CLTCH, LEFT HAND, RED/BLACK
  • 8
    7556227 WASHER-THRUST
    WASHER-THRUST
  • 9
    7556370 WASHER
    WASHER
  • 10
    3234228 SCREW-SET HEX SKT 1/4-20X1.25
    SCREW-SET HEX SKT 1/4-20X1.25
  • 11
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 12
    1322643 ASM-DRVN CLTCH, TEAM, BSC, LWTSPL (INCL. 3-5, 8-11)
    ASM-DRVN CLTCH, TEAM, BSC, LWTSPL (INCL. 3-5, 8-11)
  • 13
    7517581 SCREW
    SCREW
  • 14
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 15
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 16
    7555957 WASHER
    WASHER
  • 17
    5135611 SPACER-INPUT SHAFT, .875 OD AL
    SPACER-INPUT SHAFT, .875 OD AL
