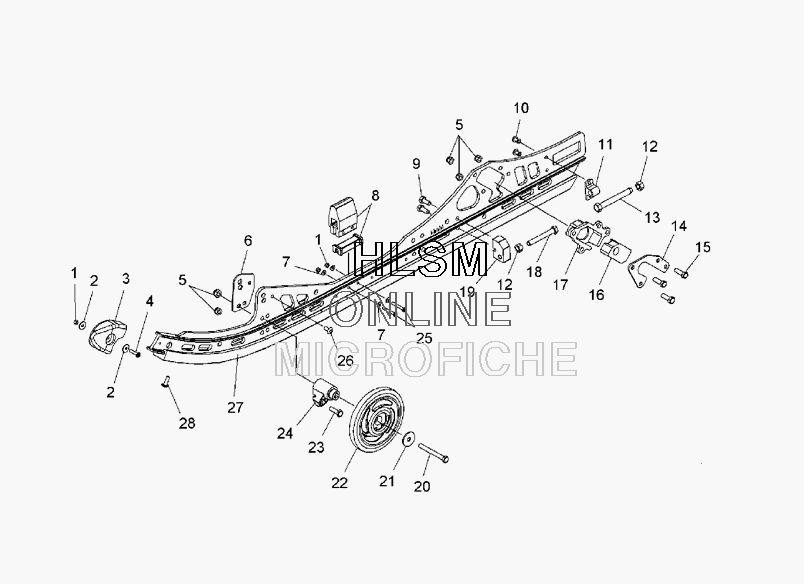

SUSPENSION - RAIL MOUNTING для Polaris 600 IQ LX (S08PD6HS) - 2008 года выпуска`
-
№АртикулНазвание
-
1541994 ASM-RAIL,M10 128,BASIC, LEFT HAND (INCL. 1-4, 8, 10, 11, 25)ASM-RAIL,M10 128,BASIC, LEFT HAND (INCL. 1-4, 8, 10, 11, 25)
-
1541995 ASM-RAIL,M10 128,BASIC, RIGHT HAND (INCL. 1-4, 8, 10, 11, 25)ASM-RAIL,M10 128,BASIC, RIGHT HAND (INCL. 1-4, 8, 10, 11, 25)
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555792 WASHERWASHER
-
35435527 CAP-RAIL TIP,UHMWCAP-RAIL TIP,UHMW
-
47518335 BOLT-10-24X1BOLT-10-24X1
-
57542324 NUT,NYLOKNUT,NYLOK
-
65249235 PLATE-RAIL SUPPORT,M10 STGRDPLATE-RAIL SUPPORT,M10 STGRD
-
77555783 WASHER,FLATWASHER,FLAT
-
85412336 BUMPER-TALLBUMPER-TALL
-
85432946 LINER,BUMPERLINER,BUMPER
-
97512371 BOLT,5/16-18X3/4BOLT,5/16-18X3/4
-
107621501 RIVETRIVET
-
115130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
127542404 NUTNUT
-
137517227 SCREWSCREW
-
145245045 PLATE-COUPLER BLOCKPLATE-COUPLER BLOCK
-
157512310 SCREWSCREW
-
165434885 BLOCK-SLIDER,LONG,ETS, LEFT HANDBLOCK-SLIDER,LONG,ETS, LEFT HAND
-
165434886 BLOCK-SLIDER,LONG,ETS, RIGHT HANDBLOCK-SLIDER,LONG,ETS, RIGHT HAND
-
175631188 GUIDE-SLIDER,CAST, LEFT HANDGUIDE-SLIDER,CAST, LEFT HAND
-
175631189 GUIDE-SLIDER,CAST, RIGHT HANDGUIDE-SLIDER,CAST, RIGHT HAND
-
187515511 SCREWSCREW
-
195134502 BLOCK-SHOCK PIVOT,FIXEDBLOCK-SHOCK PIVOT,FIXED
-
207515346 SCREWSCREW
-
217556179 WASHER-SPRING,CON 5/16X.090-YWASHER-SPRING,CON 5/16X.090-Y
-
221590387-070 ASM-WHEEL,SCRLD,5.62,6004, BLACKASM-WHEEL,SCRLD,5.62,6004, BLACK
-
227710444 RING,RETAINING (1 PER WHEEL)RING,RETAINING (1 PER WHEEL)
-
223514384 BEARING-.7874X1.6535X.4724,NTN (1 PER WHEEL)BEARING-.7874X1.6535X.4724,NTN (1 PER WHEEL)
-
237515317 BOLTBOLT
-
245631446 BLOCK-WHEEL MOUNT,6004BLOCK-WHEEL MOUNT,6004
-
257510504 SCREWSCREW
-
267661845 RIVETRIVET
-
275521632 SLIDER,.45/61'',SERVICE,BASICSLIDER,.45/61'',SERVICE,BASIC
-
287515199 SCREWSCREW
