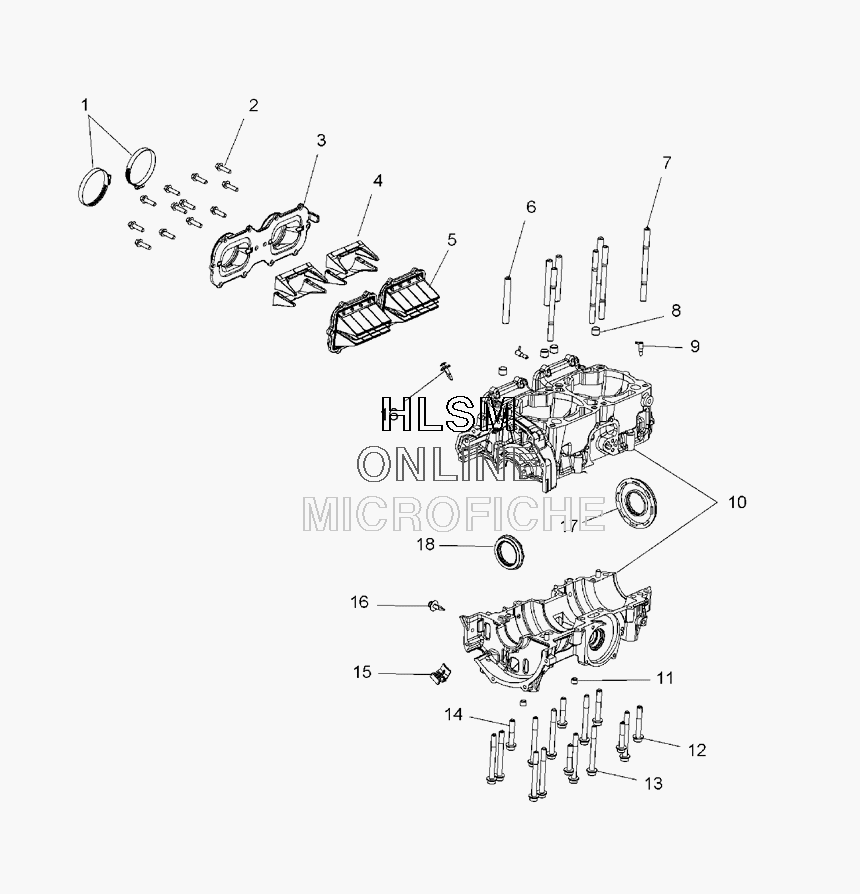

CRANKCASE ASSEMBLY для Polaris 600 IQ LX (S08PD6HS) - 2008 года выпуска`
-
№АртикулНазвание
-
17080909 CLAMP, NARROW BAND(1.77/2.75)CLAMP, NARROW BAND(1.77/2.75)
-
27518385 SCR-M6X1.0X22, 8MM HEX/FL-Y/DSCR-M6X1.0X22, 8MM HEX/FL-Y/D
-
31203383 ADAPTER-THROTTLE BODYADAPTER-THROTTLE BODY
-
45436746 STUFFER-REED, W-REEDSTUFFER-REED, W-REED
-
51202698 ASM-REED VALVEASM-REED VALVE
-
65132196 STUD, CYL 81MMSTUD, CYL 81MM
-
75135429 STUD-CYL 130MMSTUD-CYL 130MM
-
87663008 DOWL, HOL, M13X10DOWL, HOL, M13X10
-
97051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
102203321 KIT-CRANKCASE 1203210 (INCL. 6, 7, 11-16)KIT-CRANKCASE 1203210 (INCL. 6, 7, 11-16)
-
117052337 PLUG-1/8 NPT, HX/SOC W/SEALANTPLUG-1/8 NPT, HX/SOC W/SEALANT
-
127517785 BOLT, M8X1.25X55BOLT, M8X1.25X55
-
137517784 BOLT, M8X1.25X80BOLT, M8X1.25X80
-
147517786 BOLT, M8X1.25X45BOLT, M8X1.25X45
-
155436640 SHIELD-WIRE STATORSHIELD-WIRE STATOR
-
167621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
175411394 SEAL, FLANGEDSEAL, FLANGED
-
185412798 SEAL-FLANGED 35X48X7, MAGSEAL-FLANGED 35X48X7, MAG
