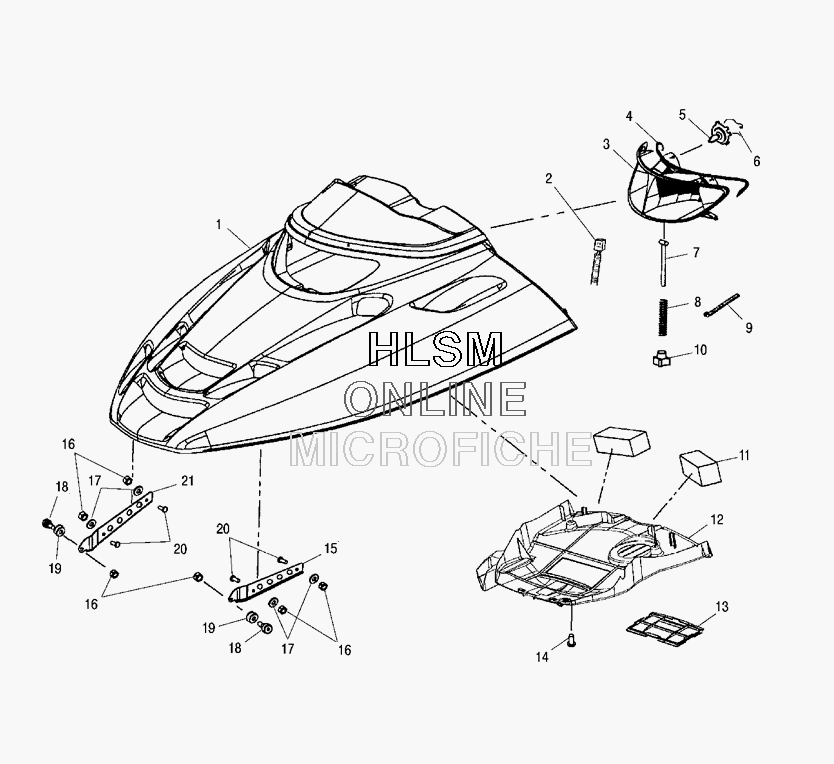

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 340 TRANSPORT CANADA (S08NT3ASA) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2633503-177 ASM-HOOD, EDGE, PC, SVC, BLACK
    ASM-HOOD, EDGE, PC, SVC, BLACK
  • 2
    2461015 HARNESS-HEADLIGHT, E/R
    HARNESS-HEADLIGHT, E/R
  • 3
    2410132 ASM., HEADLAMP, 2-BULB (INCL. BULBS)
    ASM., HEADLAMP, 2-BULB (INCL. BULBS)
  • 4
    5812450 SEAL-HEADLIGHT, ONE PIECE
    SEAL-HEADLIGHT, ONE PIECE
  • 5
    2870448 BULB, QUARTZ.H/L H4, 60/55W
    BULB, QUARTZ.H/L H4, 60/55W
  • 6
    4032063 RETAINER, H/L BULB
    RETAINER, H/L BULB
  • 7
    7517872 BOLT-TEE ADJUSTER, 2.25
    BOLT-TEE ADJUSTER, 2.25
  • 8
    7041954 SPRING-HEADLIGHT ADJUST
    SPRING-HEADLIGHT ADJUST
  • 9
    7080138 CABLE TIE
    CABLE TIE
  • 10
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKINGB
    KNOB, HEADLIGHT, ADJUST, LOCKINGB
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    2632491 ASM-PLENUM, FOIL
    ASM-PLENUM, FOIL
  • 12
    5812324 FOIL
    FOIL
  • 12
    5811948 FOIL-4.5X1.0
    FOIL-4.5X1.0
  • 13
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 14
    7512068 SCREW
    SCREW
  • 15
    5243567-067 HINGE-UPPER, BLACK, LEFT HAND
    HINGE-UPPER, BLACK, LEFT HAND
  • 16
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 17
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 18
    7512113 BOLT
    BOLT
  • 19
    5332403 SPACER
    SPACER
  • 20
    7512240 BOLT
    BOLT
  • 21
    5243568-067 HINGE-UPPER, BLACK, RIGHT HAND
    HINGE-UPPER, BLACK, RIGHT HAND
