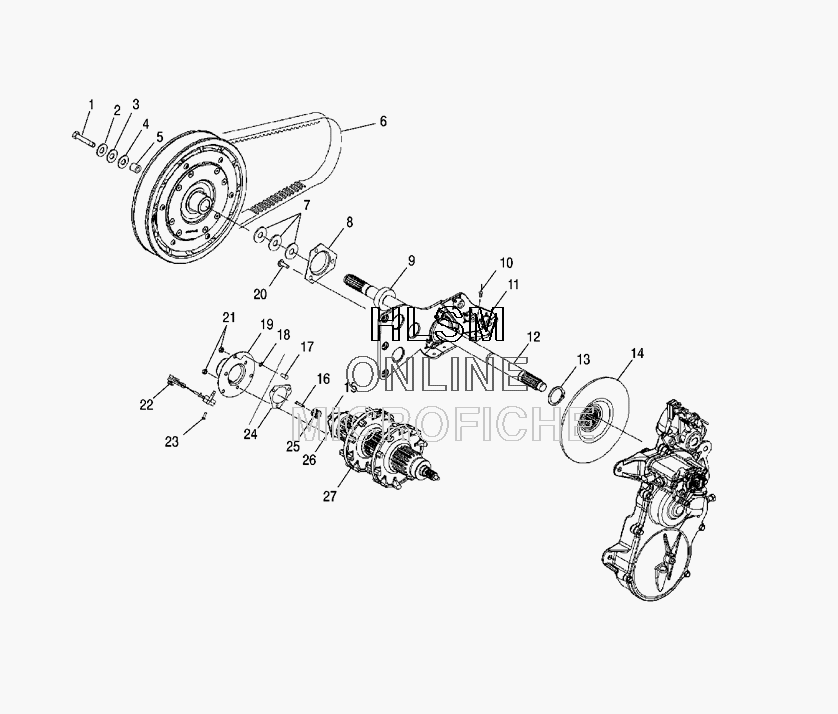

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris FST LQ LX EURO (S07PD7FE) - 2007 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55134371 SPACER-INPUT SHAFT, .875 ODSPACER-INPUT SHAFT, .875 OD
-
63211099 BELT-DRIVE, 11.0"CD, KEVLARBELT-DRIVE, 11.0"CD, KEVLAR
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
85222751 FLANGETTEFLANGETTE
-
93514352 BEARING-1XM52XM15, SPHBEARING-1XM52XM15, SPH
-
107661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
115134106 MNT-JACKSHAFT BRG, LEFT HAND, MACHMNT-JACKSHAFT BRG, LEFT HAND, MACH
-
121332453 ASM-JACKSHAFT W/BRG (INCL. 9)ASM-JACKSHAFT W/BRG (INCL. 9)
-
137710555 RING-RTNG 7200-150RING-RTNG 7200-150
-
151014299 ASM-FLANGETTE W/SCREWSASM-FLANGETTE W/SCREWS
-
167516733 SCREWSCREW
-
177518049 BOLT-CARR 5/16-18X5/8 GR5-YBOLT-CARR 5/16-18X5/8 GR5-Y
-
187547030 PALNUTPALNUT
-
195246960 HOUSING-DRIVE PICKUPHOUSING-DRIVE PICKUP
-
207518444 SCR-5/16-18-1, UNC, 2A, TRX-P30-YSCR-5/16-18-1, UNC, 2A, TRX-P30-Y
-
217542324 NUT, NYLOKNUT, NYLOK
-
222410376 SENSOR-SPEED PICKUPSENSOR-SPEED PICKUP
-
237512232 BOLTBOLT
-
245811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
255240013 WHEEL-PICKUP, SPEEDO, 9 TOOTHWHEEL-PICKUP, SPEEDO, 9 TOOTH
-
263514448 BEARING-25MM SPH OD LUBEBEARING-25MM SPH OD LUBE
-
271590412 ASM-DRVSHAFT TUBULAR 9T REINFASM-DRVSHAFT TUBULAR 9T REINF
