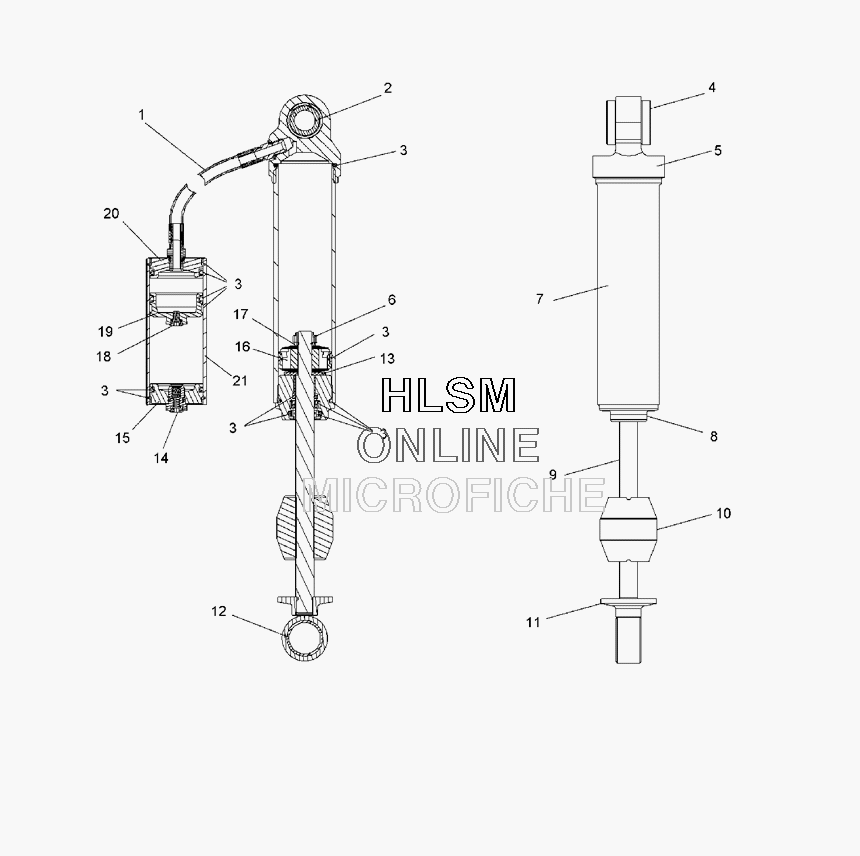

SUSPENSION - REAR SHOCK TRACK (7043216) для Polaris 600 HO LX CLEAN FIRE (S07PD6HS) - 2007 года выпуска`
-
№АртикулНазвание
-
11500786 HOSE, 6.5'' (023-05-048)HOSE, 6.5'' (023-05-048)
-
21500310 SLEEVE, .56X.81X1.2SLEEVE, .56X.81X1.2
-
31500703 KIT-REBUILD 803-00-118KIT-REBUILD 803-00-118
-
41500309 BUSHING, .35ILG, .595TLGBUSHING, .35ILG, .595TLG
-
51500787 BODY CAP (804-00-070)BODY CAP (804-00-070)
-
61500016 NUT, LOCKNUT, LOCK
-
71500561 BODYBODY
-
81500545 SEALSEAL
-
91500562 SHAFTSHAFT
-
101500567 BUMPER, B/OBUMPER, B/O
-
111500700 ASM.-EYELET 808-07-017ASM.-EYELET 808-07-017
-
121500444 BEARING-RBC 003-10-000BEARING-RBC 003-10-000
-
131500017 PLATE, TOP OUTPLATE, TOP OUT
-
141500014 VALVE ASM, AIRVALVE ASM, AIR
-
141500019 SCREWSCREW
-
151500114 SEALSEAL
-
161500740 PISTON .055 BLEED 222-00-023PISTON .055 BLEED 222-00-023
-
171500015 PLATE, BACKUPPLATE, BACKUP
-
181500161 SCREW/O-RING ASM.SCREW/O-RING ASM.
-
191500601 ASM-IFPASM-IFP
-
201500788 RES. END CAP (226-00-043)RES. END CAP (226-00-043)
-
211500705 BODY-RES., ALUM. 227-12-000BODY-RES., ALUM. 227-12-000
