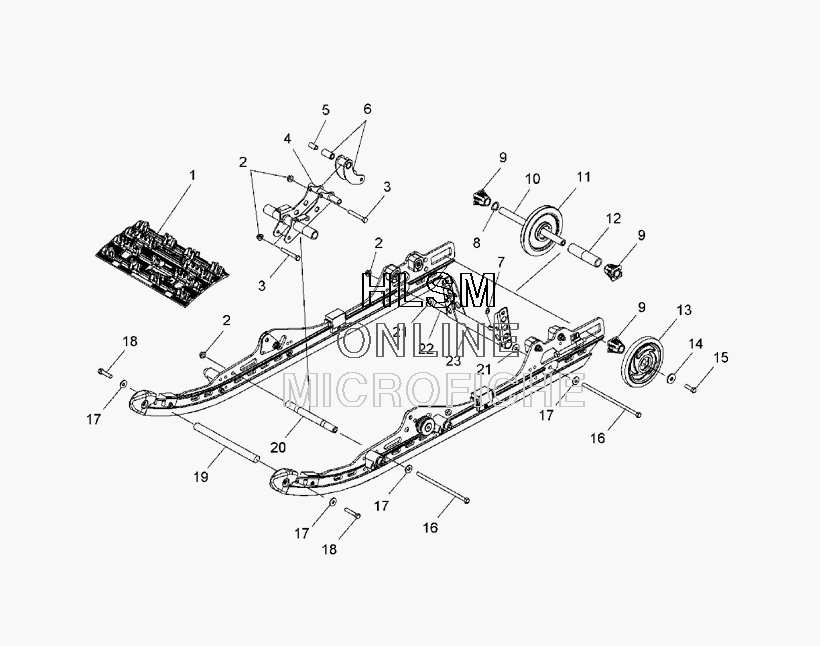

SUSPENSION - REAR для Polaris 600 HO IQ STOCK B (S07PP6FSB) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5412728 TRACK-121''X15''X1.25'', RIPSAW
    TRACK-121''X15''X1.25'', RIPSAW
  • 1
    5413198 TRACK-121'' X 15'' X 1'' HACKSAW
    TRACK-121'' X 15'' X 1'' HACKSAW
  • 1
    5222840 CLIP-GUIDE, CAMOPLAST TRACK
    CLIP-GUIDE, CAMOPLAST TRACK
  • 2
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 3
    7515417 SCREW
    SCREW
  • 4
    1542129-067 WELD-H-BRACKET, BLK
    WELD-H-BRACKET, BLK
  • 5
    5333906 SLEEVE, .385X.560X1.72
    SLEEVE, .385X.560X1.72
  • 6
    1542059-067 SHOCK PIVOT, BLACK
    SHOCK PIVOT, BLACK
  • 6
    5134600 BUSHING
    BUSHING
  • 7
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 8
    7555918 BUSHING
    BUSHING
  • 9
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 10
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 11
    1594087 ASM., WHEEL, PLAIN(6.38 O.D.)
    ASM., WHEEL, PLAIN(6.38 O.D.)
  • 12
    5333285 SPACER, IDLER, LONG
    SPACER, IDLER, LONG
  • 13
    1590303-244 ASM-WHEEL IDLER, HP, BR SLV MET
    ASM-WHEEL IDLER, HP, BR SLV MET
  • 13
    7710444 RING, RETAINING
    RING, RETAINING
  • 13
    3514384 BEARING-.7874X1.6535X.4724, NTN
    BEARING-.7874X1.6535X.4724, NTN
  • 14
    7556130 WASHER-.406X1.25X.125
    WASHER-.406X1.25X.125
  • 15
    7517731 BOLT, 3/8-16X1.25
    BOLT, 3/8-16X1.25
  • 16
    7517921 SCR-3/8-24X9.875, HX/LP, GR8-Y
    SCR-3/8-24X9.875, HX/LP, GR8-Y
  • 17
    7556188 WASHER-FL.390X.750X.065-Y
    WASHER-FL.390X.750X.065-Y
  • 18
    7518005 SCR-3/8-16X1.50-HX/CP-GR5-P80Y
    SCR-3/8-16X1.50-HX/CP-GR5-P80Y
  • 19
    5134078 SHAFT-C'BORE, .688X8.665, 2045
    SHAFT-C'BORE, .688X8.665, 2045
  • 20
    5134517 SHAFT-.795X8.665, 6066
    SHAFT-.795X8.665, 6066
  • 21
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 22
    5333404 SHAFT
    SHAFT
  • 23
    1541928-067 REAR PIVOT ARM, 4.00, BLACK
    REAR PIVOT ARM, 4.00, BLACK
