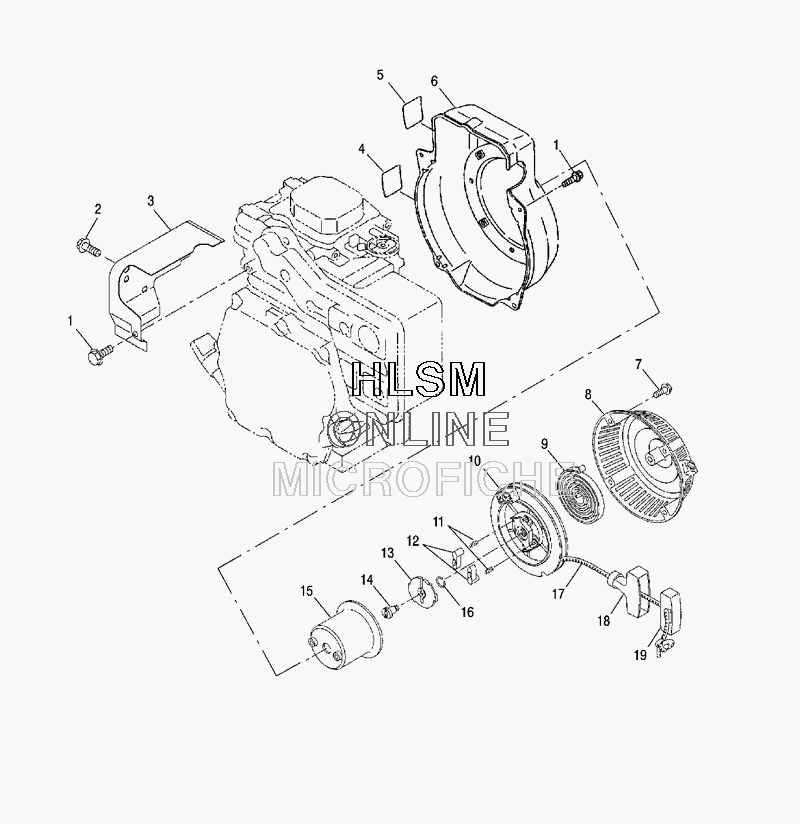

STARTER - RECOIL W/ BLOWER HOUSING для Polaris 120 AND EURO (S07WB1AS/AE) - 2007 года выпуска`
-
№АртикулНазвание
-
13087256 BOLT, FLANGEBOLT, FLANGE
-
23086125 BOLT, FLANGEBOLT, FLANGE
-
33086622 COVER, HEADCOVER, HEAD
-
43086638 LABELLABEL
-
63086957 HOUSING, 2 BLOWERHOUSING, 2 BLOWER
-
73085359 BOLT, FLANGEBOLT, FLANGE
-
83086958 ASM., RECOIL STARTER (INCL. 9-17)ASM., RECOIL STARTER (INCL. 9-17)
-
93086625 SPRING, SPIRALSPRING, SPIRAL
-
103086626 REELREEL
-
113086865 SPRING, RETURNSPRING, RETURN
-
123086629 RATCHETRATCHET
-
133086632 GUIDE, RATCHETGUIDE, RATCHET
-
143086634 SCREW, SETSCREW, SET
-
153086959 PULLEY, STARTERPULLEY, STARTER
-
163086630 SPRING, FRICTIONSPRING, FRICTION
-
172870621 ROPE, 100 FT, NYL.STARTERROPE, 100 FT, NYL.STARTER
-
183086628 KNOB, STARTERKNOB, STARTER
-
193086866 CAP, KNOBCAP, KNOB
