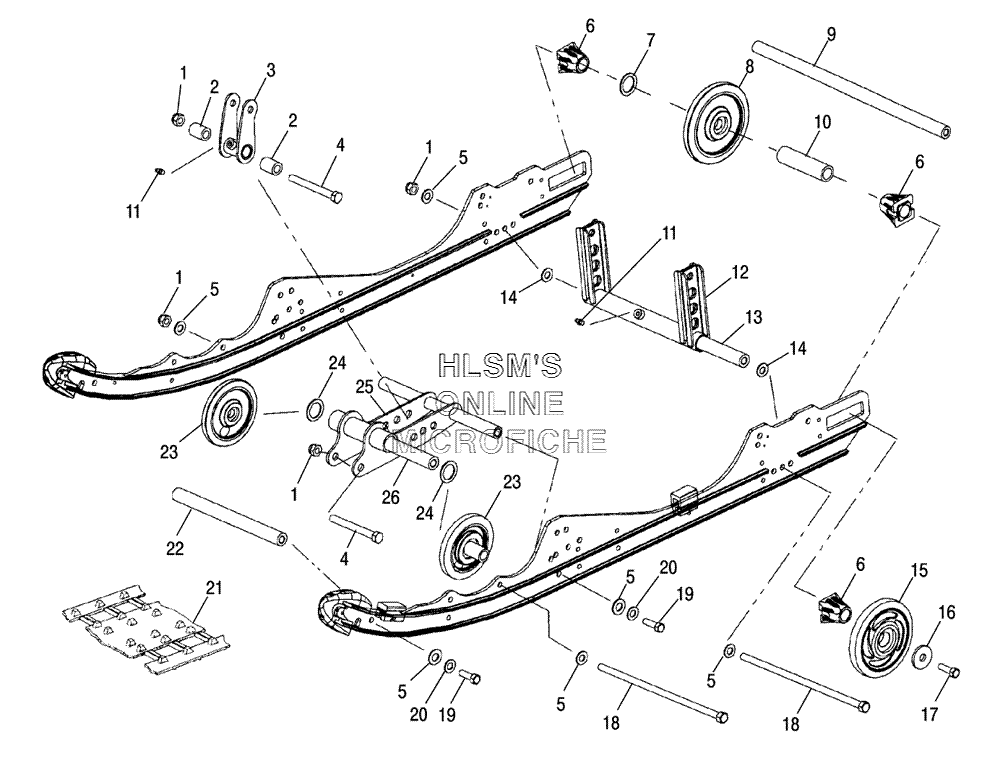

SUSPENSION - REAR (EDGE) для Polaris SuperSport (S06NP5BSA) - 2006 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25133233 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM, 2.5 (BLACK)SHOCK PIVOT ARM, 2.5 (BLACK)
-
47515417 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
95020744 SHAFT, IDLERSHAFT, IDLER
-
105333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
117080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
121541707-067 WELD ARM, PIVOT (REAR/BLACK)WELD ARM, PIVOT (REAR/BLACK)
-
135333404 SHAFTSHAFT
-
147555893 WASHER, FLATWASHER, FLAT
-
151590303-293 WHEEL, IDLER HP ASSY (INDY RED)WHEEL, IDLER HP ASSY (INDY RED)
-
151590303-446 WHEEL, IDLER HP ASSY (COSMIC SUN)WHEEL, IDLER HP ASSY (COSMIC SUN)
-
157710444 RING, RETAININGRING, RETAINING
-
153514384 BEARINGBEARING
-
167556130 WASHERWASHER
-
177517731 BOLTBOLT
-
187517921 SCREW HEXAGONSCREW HEXAGON
-
197517247 SCREWSCREW
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
215411057 TRACK, 121" MODULE (LIGHTNING)TRACK, 121" MODULE (LIGHTNING)
-
215222840 CLIP, GUIDECLIP, GUIDE
-
225020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
231541485 WHEEL, 5.35 ASSY WITH HOLEWHEEL, 5.35 ASSY WITH HOLE
-
247556301 BUSHINGBUSHING
-
251541711-067 WELD MOUNT SHOCK (BLACK)WELD MOUNT SHOCK (BLACK)
-
265132490 SHAFTSHAFT
