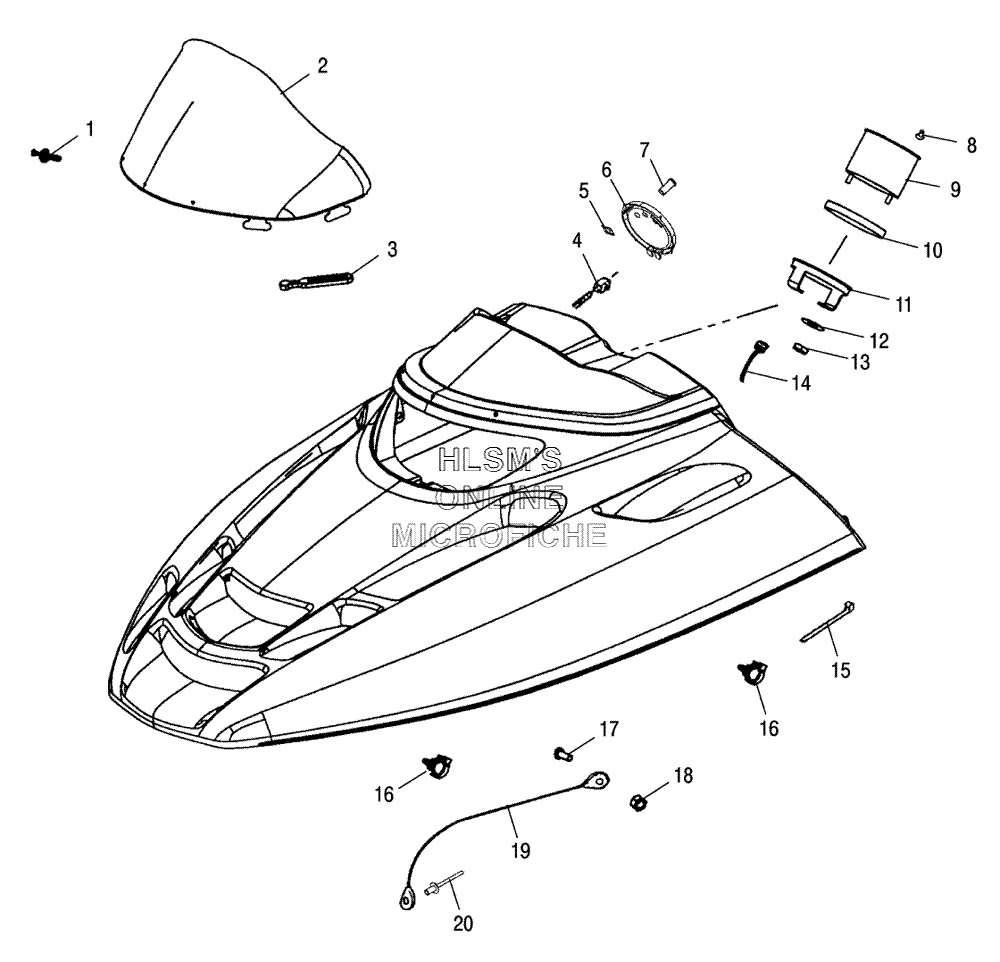

HOOD ASSEMBLY W/ WINDSHIELD для Polaris SuperSport (S06NP5BSA) - 2006 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25434194 WINDSHIELD 13" (SMOKE)WINDSHIELD 13" (SMOKE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42461031 HARNESS JUMPER, REVERSE LIGHTHARNESS JUMPER, REVERSE LIGHT
-
57670133 RETAINER 1/2" BOLT TAILLIGHT AMPRETAINER 1/2" BOLT TAILLIGHT AMP
-
65434081 PLUG DASH, 5" WITH SINGLE 1/2"HOLEPLUG DASH, 5" WITH SINGLE 1/2"HOLE
-
74010687 INDICATOR REVERSE, 1/2 DIAINDICATOR REVERSE, 1/2 DIA
-
83280186 KNOB, TRIP ODOMETER THEAD (LEFT)KNOB, TRIP ODOMETER THEAD (LEFT)
-
93280411 SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
113280210 BRACKET, TACHOMETER/SPEEDOMETER 5"BRACKET, TACHOMETER/SPEEDOMETER 5"
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
157080138 CABLE TIECABLE TIE
-
164010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
177512018 SCREWSCREW
-
187541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
197080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- • HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY (3 WAY)
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS (EDGE)
- RAIL ASSEMBLY W/ IDLER WHEELS (M-10)
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY
- STEERING LINKAGE
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY (EDGE)
- SUSPENSION - REAR (EDGE)
- SUSPENSION - REAR SHOCK TRACK (EDGE)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY (EDGE)
- TOOL KIT
