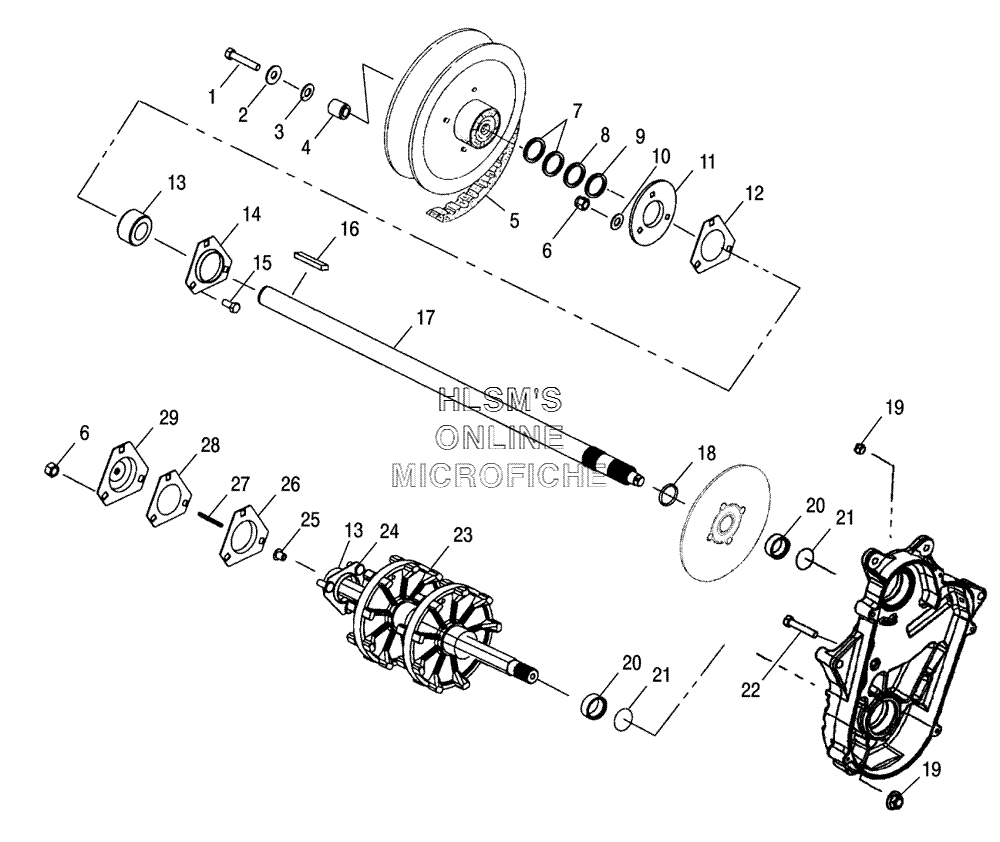

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris SuperSport (S06NP5BSA) - 2006 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACERSPACER
-
53211078 BELT DRIVEBELT DRIVE
-
67542324 NUT, NYLOKNUT, NYLOK
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107558402 WASHER, FLATWASHER, FLAT
-
115241359 FLANGE RD, RELUBE WITH ZERKFLANGE RD, RELUBE WITH ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
167721116 KEYKEY
-
171332283 JACKSHAFT, WITH BEARING ASSY (15 TEETH) (INCL. 13, 18)JACKSHAFT, WITH BEARING ASSY (15 TEETH) (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
197542423 NUT, FLANGENUT, FLANGE
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
231590340 DRIVE SHAFT ASSY (INCL. 24, 25)DRIVE SHAFT ASSY (INCL. 24, 25)
-
241012945 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
253280019 BUSHING METAL SPEEDOMETEROBUSHING METAL SPEEDOMETERO
-
265243529 FLANGETTE OFFSET, WITH HOLEFLANGETTE OFFSET, WITH HOLE
-
273280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
285830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
293280116 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
