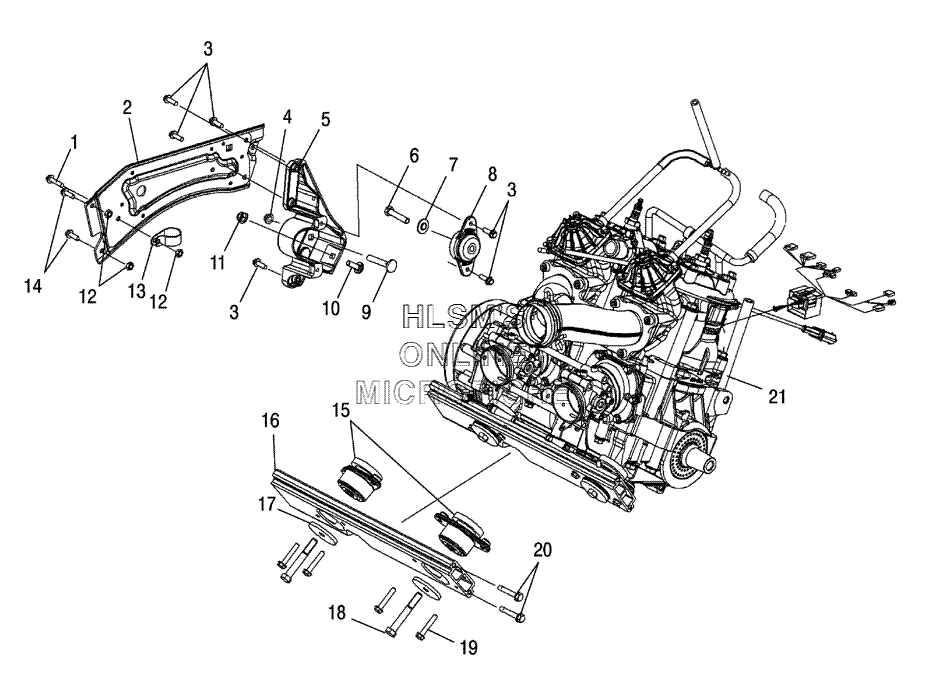

ENGINE MOUNTING - RIGHT AND FRONT для Polaris 900 RMK 166'' (S06PN8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7512225 SCREW
    SCREW
  • 2
    1015100 SUPPORT, BULKHEAD ASSY (UPPER/RIGHT)
    SUPPORT, BULKHEAD ASSY (UPPER/RIGHT)
  • 3
    7512232 BOLT
    BOLT
  • 4
    7547180 NUT FLANGED, NYLON
    NUT FLANGED, NYLON
  • 5
    5134871 SUPPORT ENGINE (RIGHT/REAR)
    SUPPORT ENGINE (RIGHT/REAR)
  • 6
    7518422 SCREW
    SCREW
  • 7
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 8
    3021752 MOUNT ENGINE (REAR)
    MOUNT ENGINE (REAR)
  • 9
    7518029 BOLT CARRIAGE
    BOLT CARRIAGE
  • 10
    7517579 BOLT CARRIAGE
    BOLT CARRIAGE
  • 11
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 12
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 13
    7081049 CLAMP SPRING (1 5/8'' ID)
    CLAMP SPRING (1 5/8'' ID)
  • 14
    7512253 SCREW
    SCREW
  • 15
    3021753 MOUNT ENGINE (FRONT)
    MOUNT ENGINE (FRONT)
  • 16
    5134931 SUPPORT ENGINE BASE (FRONT) (3/4)
    SUPPORT ENGINE BASE (FRONT) (3/4)
  • 17
    7556313 WASHER
    WASHER
  • 18
    7517297 SCREW
    SCREW
  • 19
    7515391 BOLT
    BOLT
  • 20
    7518425 BOLT HEXAGON FLANGE
    BOLT HEXAGON FLANGE
  • 21
    2203113 SHORT BLOCK (BLACK)
    SHORT BLOCK (BLACK)
