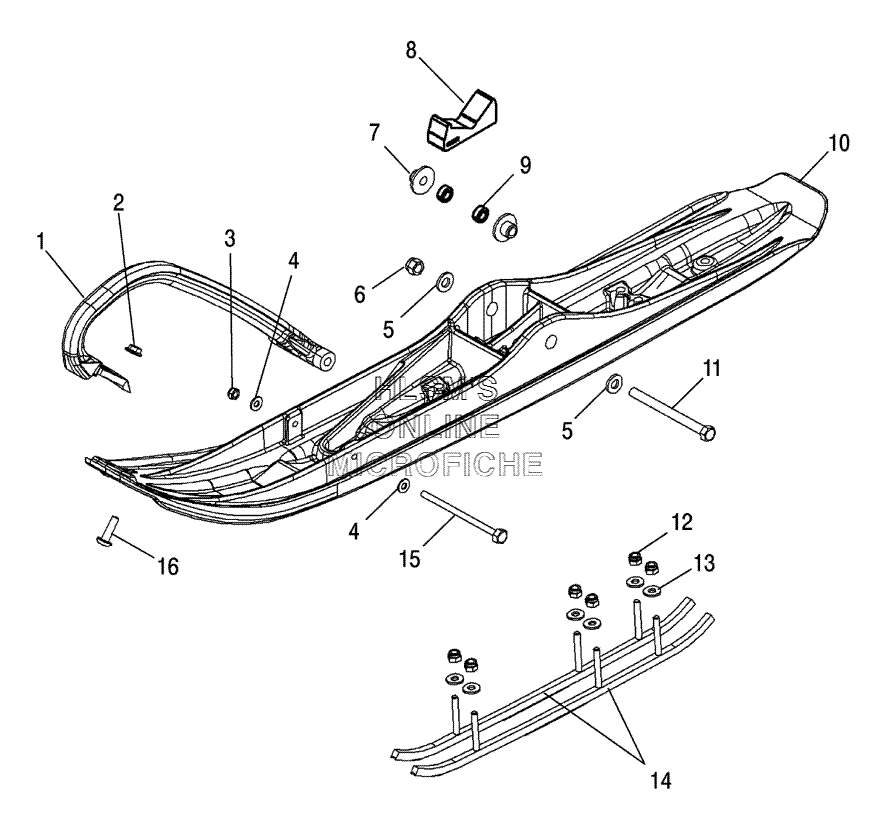

SKI ASSEMBLY для Polaris 900 RMK 166'' Dragon (S06PR8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-070 TOE PLASTIC SKI (BLACK)
    TOE PLASTIC SKI (BLACK)
  • 1
    5435681-293 TOE PLASTIC, SKI (INDY RED)
    TOE PLASTIC, SKI (INDY RED)
  • 2
    7542321 NUT, FLANGE
    NUT, FLANGE
  • 3
    7542122 NUT NYLOK
    NUT NYLOK
  • 4
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 5
    7556130 WASHER
    WASHER
  • 6
    7547263 NUT NYLOK
    NUT NYLOK
  • 7
    5132637 BUSHING, METAL (.390 ID)
    BUSHING, METAL (.390 ID)
  • 8
    5412794 STOP SKI RUBBER
    STOP SKI RUBBER
  • 9
    5134885 SPACER (1.00 ODX.640 IDX.375)
    SPACER (1.00 ODX.640 IDX.375)
  • 10
    1821335-070 SKI ASSY (LEFT/BLACK) (INCL. 7)
    SKI ASSY (LEFT/BLACK) (INCL. 7)
  • 10
    1821336-070 SKI ASSY (RIGHT/BLACK) (INCL. 7)
    SKI ASSY (RIGHT/BLACK) (INCL. 7)
  • 11
    7517968 SCREW
    SCREW
  • 12
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 13
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 14
    2874334 SKAG, CARBIDE KIT (4'') (60Ш) (PAIR)
    SKAG, CARBIDE KIT (4'') (60Ш) (PAIR)
  • 15
    7518047 BOLT
    BOLT
  • 16
    7516317 SCREW NYLON
    SCREW NYLON
