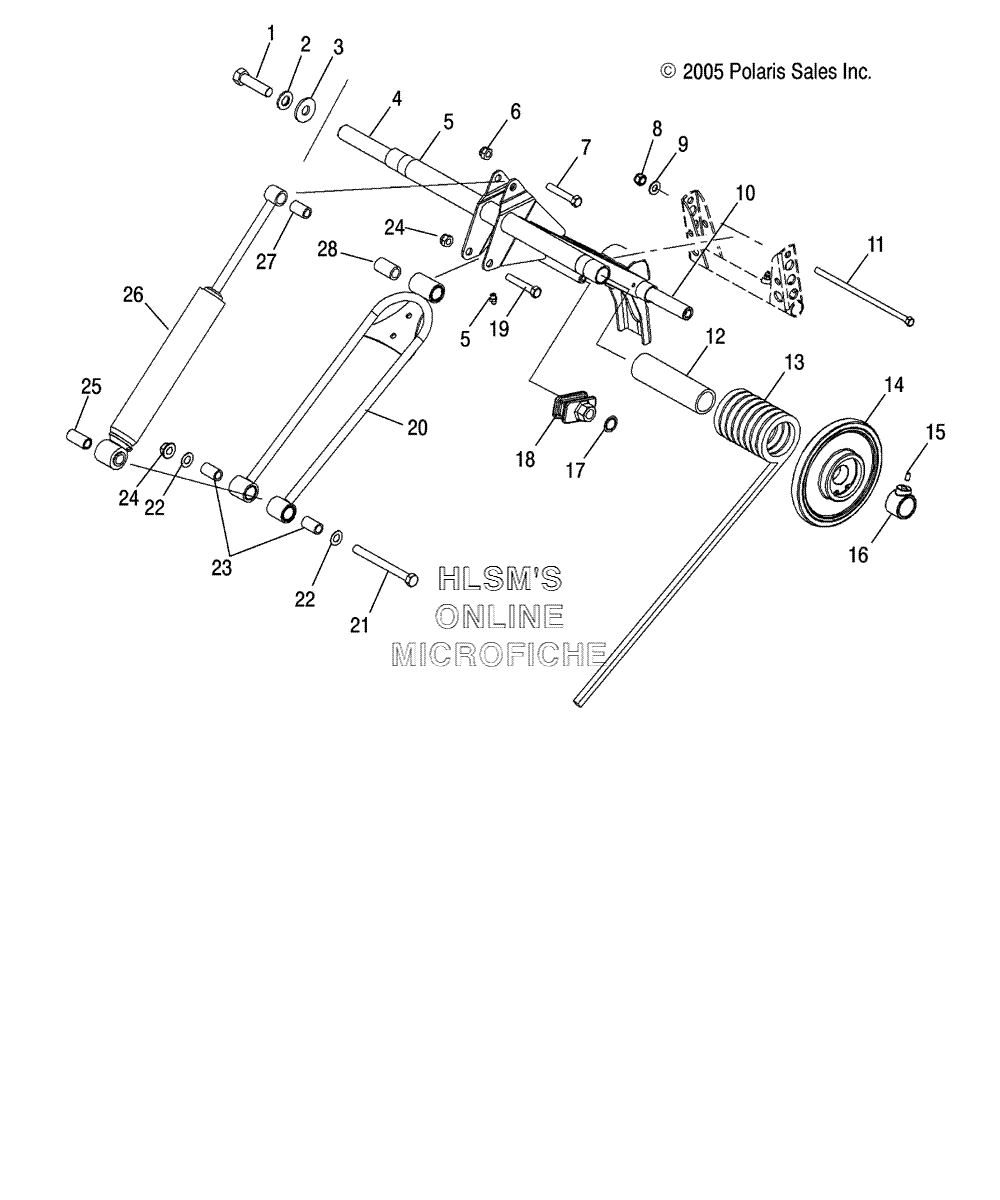

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 900 RMK 159'' (S06PM8DS) - 2006 года выпуска`
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45133987 SHAFT (.75X15.404, 2024)SHAFT (.75X15.404, 2024)
-
51541963-067 WELD RTA, NARROW (BLACK)WELD RTA, NARROW (BLACK)
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542411 NUT, FLEXLOCNUT, FLEXLOC
-
77512410 BOLTBOLT
-
87547217 NUT NYLOKNUT NYLOK
-
97558402 WASHER, FLATWASHER, FLAT
-
105333997 SHAFT (.689X.334X5.220 ANNODIZE)SHAFT (.689X.334X5.220 ANNODIZE)
-
117517908 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
125434337 SLEEVE TORSION SPRINGSLEEVE TORSION SPRING
-
137041629-067 SPRING, TORSION (.359/77) (LEFT/BLACK)SPRING, TORSION (.359/77) (LEFT/BLACK)
-
137041630-067 SPRING, TORSION (.359/77) (RIGHT/BLACK)SPRING, TORSION (.359/77) (RIGHT/BLACK)
-
137041627-067 SPRING TORSION (.347SQ/77Ш) (LEFT/BLACK) (OPT)SPRING TORSION (.347SQ/77Ш) (LEFT/BLACK) (OPT)
-
137041628-067 SPRING TORSION (.347/77Ш) (RIGHT/BLACK) (OPT)SPRING TORSION (.347/77Ш) (RIGHT/BLACK) (OPT)
-
137041942-067 SPRING TORSION (.375SQ/77Ш) (LEFT/BLACK) (OPT)SPRING TORSION (.375SQ/77Ш) (LEFT/BLACK) (OPT)
-
137041943-067 SPRING TORSION (.375SQ/77Ш) (RIGHT/BLACK) (OPT)SPRING TORSION (.375SQ/77Ш) (RIGHT/BLACK) (OPT)
-
141590328 WHEEL, BOGIE ASSY, PLAIN (5.62)WHEEL, BOGIE ASSY, PLAIN (5.62)
-
143514303 BEARING #6205BEARING #6205
-
147718407 RING RETAININGRING RETAINING
-
157518262 SCREWSCREW
-
165135424 SPACER, NYLON (.985X1.285X.868)SPACER, NYLON (.985X1.285X.868)
-
177080394 CLIP, PUSH ONCLIP, PUSH ON
-
185432983 ROLLER, SPRING, ADJUST, SQUAREROLLER, SPRING, ADJUST, SQUARE
-
197515415 SCREWSCREW
-
201542170 SHOCK ROD ASSY (INCL. BUSHINGS)SHOCK ROD ASSY (INCL. BUSHINGS)
-
205435722 BUSHING, VESPEL ( .568X.688X1.36)BUSHING, VESPEL ( .568X.688X1.36)
-
205435723 BUSHING, VESPEL ( .568X.688X.92)BUSHING, VESPEL ( .568X.688X.92)
-
217518263 SCREWSCREW
-
227555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
235135043 BUSHING (.385X.560X.967)BUSHING (.385X.560X.967)
-
247547263 NUT NYLOKNUT NYLOK
-
255333905 SLEEVE (.385X.560X1.24)SLEEVE (.385X.560X1.24)
-
267043047 SHOCK R/T, TWIN TUBE AFXSHOCK R/T, TWIN TUBE AFX
-
267043046 SHOCK R/T, IFP, RAPID ADJUSTSHOCK R/T, IFP, RAPID ADJUST
-
275010422 BUSHINGBUSHING
-
285134601 BUSHING (.385X.550X1.39)BUSHING (.385X.550X1.39)
